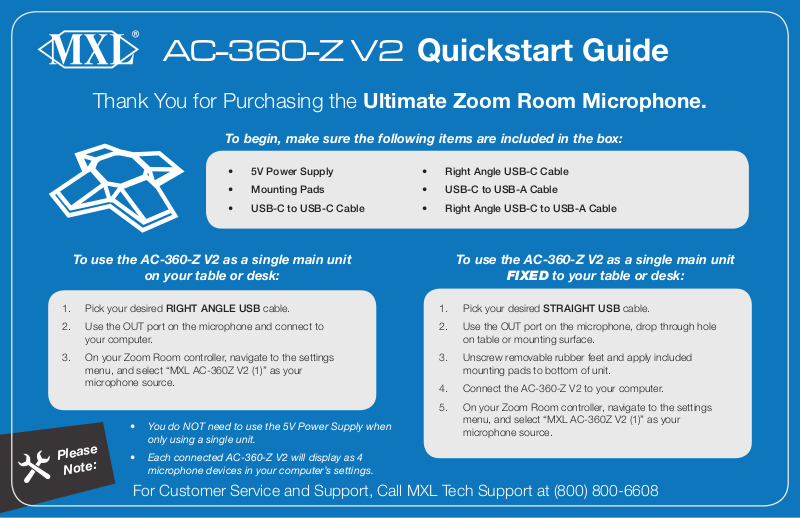

Mxl AC-360-Z V2 User Manual
AC-360-Z V2
Quickstart Guide
Thank You for Purchasing the Ultimate Zoom Room Microphone.
To begin, make sure the following items are included in the box:
• 5V Power Supply
• Mounting Pads
• USB-C to USB-C Cable
To use the AC-360-Z V2 as a single main unit
on your table or desk:
1. Pick your desired RIGHT ANGLE USB cable.
2. Use the OUT port on the microphone and connect to
your computer.
3. On your Zoom Room controller, navigate to the settings
menu, and select “MXL AC-360Z V2 (1)” as your
microphone source.
• You do NOT need to use the 5V Power Supply when
only using a single unit.
Please
Note:
• Each connected AC-360-Z V2 will display as 4
microphone devices in your computer’s settings.
For Customer Service and Support, Call MXL Tech Support at (800) 800-6608
• Right Angle USB-C Cable
• USB-C to USB-A Cable
• Right Angle USB-C to USB-A Cable
To use the AC-360-Z V2 as a single main unit
FIXED to your table or desk:
1. Pick your desired STRAIGHT USB cable.
2. Use the OUT port on the microphone, drop through hole
on table or mounting surface.
3. Unscrew removable rubber feet and apply included
mounting pads to bottom of unit.
4. Connect the AC-360-Z V2 to your computer.
5. On your Zoom Room controller, navigate to the settings
menu, and select “MXL AC-360Z V2 (1)” as your
microphone source.
AC-360-Z V2
To use the AC-360-Z V2 as an extension unit
on your table or desk:
1. Pick the RIGHT ANGLE USB-C to RIGHT ANGLE USB-C
cable.
2. Use the OUT port on the microphone and connect to the
EXT port on your main unit.
3. Connect the provided power supply to the extension unit.
4. Your Zoom Room controller will display, “MXL AC360V2 (2)”
as an available microphone source. Tap , followed by
the “Update to 2 Microphones” option.
5. [OPTIONAL] Repeat for a 3rd unit.
6. Your Zoom Room controller will display, “MXL AC360V2 (3)”
as an available microphone source. Tap , followed by
the “Update to 3 Microphones” option.
• Each extension unit will require the 5V Power Supply.
Please
Note:
• Daisy chain each extension microphone point to point.
• Each connected AC-360-Z V2 will display as 4 microphone
devices in your computer’s settings.
Extension Unit
Installation Guide
To use the AC-360-Z V2 as an extension unit
FIXED to your table or desk:
1. Pick your desired STRAIGHT USB-C to STRAIGHT
USB-C cable
2. Use the OUT port on the microphone, drop through hole
on table or mounting surface, connect to EXT port on your
main unit.
3. Connect the provided power supply to the extension unit.
4. Unscrew removable rubber feet and apply included mounting pads to bottom of unit.
5. Your Zoom Room controller will display, “MXL AC360V2 (2)”
as an available microphone source. Tap , followed by
the “Update to 2 Microphones” option.
6. [OPTIONAL] Repeat for a 3rd unit.
7. Your Zoom Room controller will display, “MXL AC360V2 (3)”
as an available microphone source. Tap , followed by
the “Update to 3 Microphones” option.
CONNECTED
AC-360-Z V2s
1
2
3
COMPUTER
INPUTS SHOWN
4
8
12
ZOOM ROOM CONTROLLER
MIC INPUTS SHOWN
1
2
3
