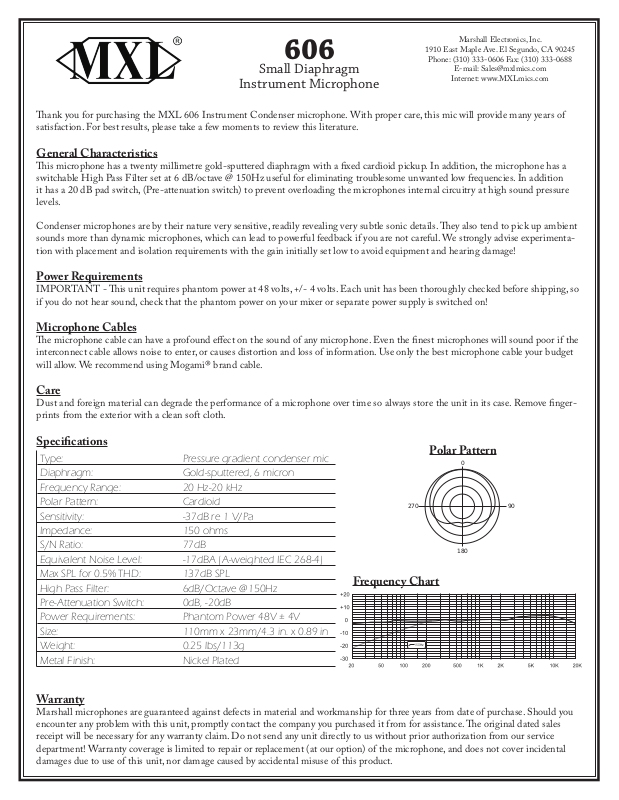

606
1910 East Maple Ave. El Segundo, CA 90245
Phone: (310) 333-0606 Fax: (310) 333-0688
Small Diaphragm
Instrument Microphone
ank you for purchasing the MXL 606 Instrument Condenser microphone. With proper care, this mic will provide many years of
satisfaction. For best results, please take a few moments to review this literature.
Marshall Electronics, Inc.
E-mail: Sales@mxlmics.com
Internet: www.MXLmics.com
General Characteristics
is microphone has a twenty millimetre gold-sputtered diaphragm with a xed cardioid pickup. In addition, the microphone has a
switchable High Pass Filter set at 6 dB/octave @ 150Hz useful for eliminating troublesome unwanted low frequencies. In addition
it has a 20 dB pad switch, (Pre-attenuation switch) to prevent overloading the microphones internal circuitry at high sound pressure
levels.
Condenser microphones are by their nature very sensitive, readily revealing very subtle sonic details. ey also tend to pick up ambient
sounds more than dynamic microphones, which can lead to powerful feedback if you are not careful. We strongly advise experimentation with placement and isolation requirements with the gain initially set low to avoid equipment and hearing damage!
Power Requirements
IMPORTANT - is unit requires phantom power at 48 volts, +/- 4 volts. Each unit has been thoroughly checked before shipping, so
if you do not hear sound, check that the phantom power on your mixer or separate power supply is switched on!
Microphone Cables
e microphone cable can have a profound eect on the sound of any microphone. Even the nest microphones will sound poor if the
interconnect cable allows noise to enter, or causes distortion and loss of information. Use only the best microphone cable your budget
will allow. We recommend using Mogami® brand cable.
Care
Dust and foreign material can degrade the performance of a microphone over time so always store the unit in its case. Remove ngerprints from the exterior with a clean soft cloth.
Specications
Polar Pattern
Type: Pressure gradient condenser mic
Diaphragm:
Frequency Range:
Go
ld-sputtered, 6 micron
20 Hz-20 k
Hz
Polar Pattern: Cardioid
Sensitivity:
Impedanc
S/N Ra
Equi
Max
gh Pass Filter:
Hi
e:
tio:
valent Noise Level:
SPL for 0.5% THD:
Pre-Attenuation Switch:
wer Requirements: Phantom Power 48V ± 4V
Po
Si
ze:
Weight:
-37dB re 1 V/Pa
hms
150 o
77dB
-17dBA (A-weighted IEC 268-4)
137dB SPL
6dB/Octa
ve @150Hz
0dB, -20dB
110mm x
0.25 lbs/
23mm/4.3 in. x 0.89 in
113g
Metal Finish: Nickel Plated
Frequency Chart
Hz
150
0
90270
180
Warranty
Marshall microphones are guaranteed against defects in material and workmanship for three years from date of purchase. Should you
encounter any problem with this unit, promptly contact the company you purchased it from for assistance. e original dated sales
receipt will be necessary for any warranty claim. Do not send any unit directly to us without prior authorization from our service
department! Warranty coverage is limited to repair or replacement (at our option) of the microphone, and does not cover incidental
damages due to use of this unit, nor damage caused by accidental misuse of this product.
