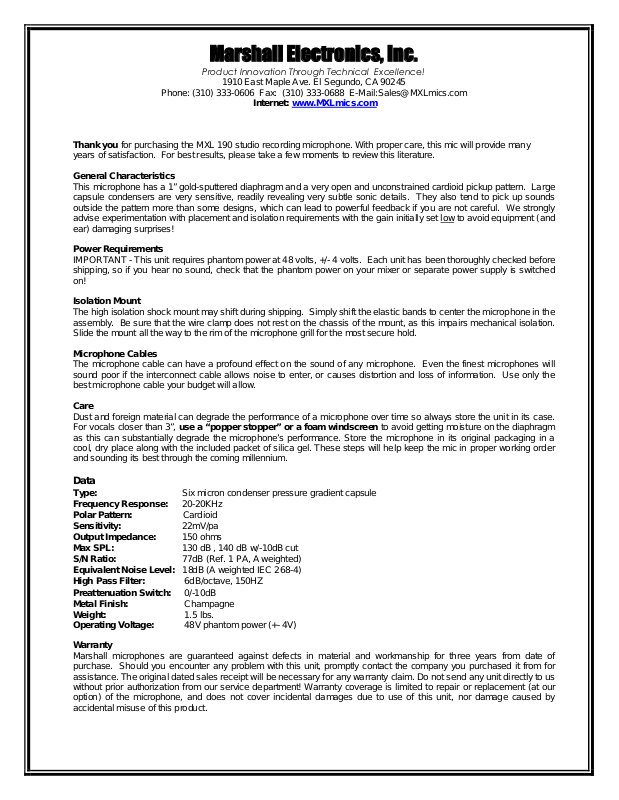

MXL 190 User Manual

Marshall Electronics, Inc.

Product Innovation Through Technical Excellence!

1910 East Maple Ave. El Segundo, CA 90245

Phone: [phone] Fax: [phone] E-Mail:[e-mail]

Internet: www.MXLmics.com

Thank you for purchasing the MXL 190 studio recording microphone. With proper care, this mic will provide many

years of satisfaction. For best results, please take a few moments to review this literature.

General Characteristics

This microphone has a 1” gold-sputtered diaphragm and a very open and unconstrained cardioid pickup pattern. Large
capsule condensers are very sensitive, readily revealing very subtle sonic details. They also tend to pick up sounds
outside the pattern more than some designs, which can lead to powerful feedback if you are not careful. We strongly
advise experimentation with placement and isolation requirements with the gain initially set low to avoid equipment (and
ear) damaging surprises!

Power Requirements

IMPORTANT - This unit requires phantom power at 48 volts, +/- 4 volts. Each unit has been thoroughly checked before
shipping, so if you hear no sound, check that the phantom power on your mixer or separate power supply is switched
on!

Isolation Mount

The high isolation shock mount may shift during shipping. Simply shift the elastic bands to center the microphone in the
assembly. Be sure that the wire clamp does not rest on the chassis of the mount, as this impairs mechanical isolation.
Slide the mount all the way to the rim of the microphone grill for the most secure hold.

Microphone Cables

The microphone cable can have a profound effect on the sound of any microphone. Even the finest microphones will
sound poor if the interconnect cable allows noise to enter, or causes distortion and loss of information. Use only the
best microphone cable your budget will allow.

Care

Dust and foreign material can degrade the performance of a microphone over time so always store the unit in its case.
For vocals closer than 3”, use a “popper stopper” or a foam windscreen to avoid getting moisture on the diaphragm
as this can substantially degrade the microphone’s performance. Store the microphone in its original packaging in a
cool, dry place along with the included packet of silica gel. These steps will help keep the mic in proper working order
and sounding its best through the coming millennium.

Data

Type: Six micron condenser pressure gradient capsule
Frequency Response: 20-20KHz
Polar Pattern: Cardioid
Sensitivity: 22mV/pa
Output Impedance: 150 ohms
Max SPL: 130 dB , 140 dB w/-10dB cut
S/N Ratio: 77dB (Ref. 1 PA, A weighted)
Equivalent Noise Level: 18dB (A weighted IEC 268-4)
High Pass Filter: 6dB/octave, 150HZ
Preattenuation Switch: 0/-10dB
Metal Finish: Champagne
Weight: 1.5 lbs.
Operating Voltage: 48V phantom power (+- 4V)

Warranty

Marshall microphones are guaranteed against defects in material and workmanship for three years from date of
purchase. Should you encounter any problem with this unit, promptly contact the company you purchased it from for
assistance. The original dated sales receipt will be necessary for any warranty claim. Do not send any unit directly to us
without prior authorization from our service department! Warranty coverage is limited to repair or replacement (at our
option) of the microphone, and does not cover incidental damages due to use of this unit, nor damage caused by
accidental misuse of this product.
