MW McWong PSC ID M FM600 User Manual

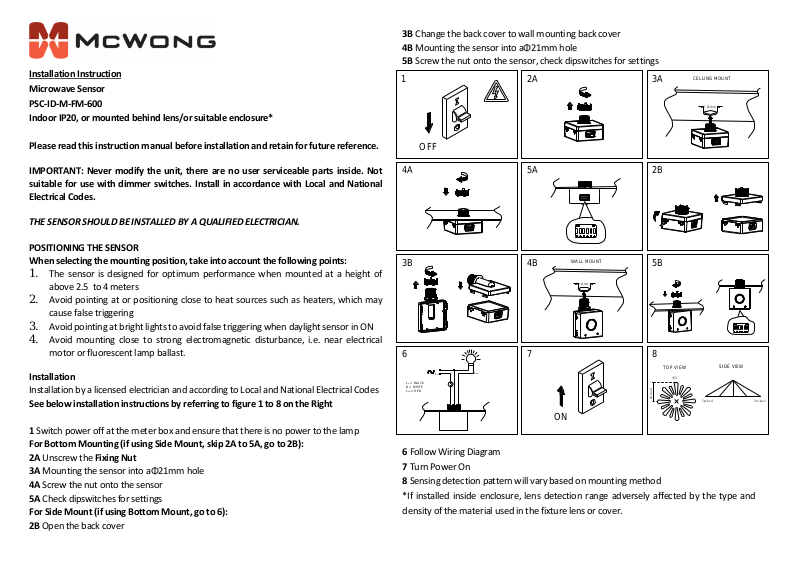

Installation Instruction

OFF

360°

5m(max)

ON

5A 2B4A

4B3B

2A 3A

TOP VIEW

5m(max)

SIDE VIEW

5m(max)

1

? 21mm

5B

? 21mm

6 7

CELLING MOUNT

WALL MOUNT

8

Lin = BLACK
N = WHITE
Lout= RED

Lin

Lout

Microwave Sensor
PSC-ID-M-FM-600
Indoor IP20, or mounted behind lens/or suitable enclosure*

Please read this instruction manual before installation and retain for future reference.

IMPORTANT: Never modify the unit, there are no user serviceable parts inside. Not
suitable for use with dimmer switches. Install in accordance with Local and National
Electrical Codes.

THE SENSOR SHOULD BE INSTALLED BY A QUALIFIED ELECTRICIAN.

POSITIONING THE SENSOR
When selecting the mounting position, take into account the following points:

1. The sensor is designed for optimum performance when mounted at a height of

above 2.5 to 4 meters

2. Avoid pointing at or positioning close to heat sources such as heaters, which may

cause false triggering

3. Avoid pointing at bright lights to avoid false triggering when daylight sensor in ON

4. Avoid mounting close to strong electromagnetic disturbance, i.e. near electrical

motor or fluorescent lamp ballast.

Installation

Installation by a licensed electrician and according to Local and National Electrical Codes

See below installation instructions by referring to figure 1 to 8 on the Right

1 Switch power off at the meter box and ensure that there is no power to the lamp
For Bottom Mounting (if using Side Mount, skip 2A to 5A, go to 2B):
2A Unscrew the Fixing Nut
3A Mounting the sensor into aΦ21mm hole
4A Screw the nut onto the sensor
5A Check dipswitches for settings
For Side Mount (if using Bottom Mount, go to 6):
2B Open the back cover

3B Change the back cover to wall mounting back cover
4B Mounting the sensor into aΦ21mm hole
5B Screw the nut onto the sensor, check dipswitches for settings

6 Follow Wiring Diagram
7 Turn Power On
8 Sensing detection pattern will vary based on mounting method

*If installed inside enclosure, lens detection range adversely affected by the type and
density of the material used in the fixture lens or cover.

SETTINGS:

Sensor Factory pre-sets are as follows:

1 2 3 4 5 6

↓ ↓ ↓ ↓ ↓ ↓

Sensor Dipswitches Adjustment:

TECHNICAL DETAILS:

Voltage: 120-277 VAC 50/60 Hz
Wattage: 600W Incandescent

600VA Fluorescent light

200VA LED
Detection range: 360° Max.5 meters radius
Delay time: 5s to 30 min. adjustable
Lux control level: night or daylight on/off
IP Rating: 20

WARNING

1. Turn off power from the circuit breaker before installing the sensor.

2. Ask a qualified electrician if you unsure about anything on these instructions.

3. Controlling a load exceeding the maximum loading may cause product damage, fire,

electrical shock, and personal injury or death.

4. Do not attempt to disassemble or repair. Clean outside with a cloth only.

5. Do not allow bare wires to show and make sure all connections are secure.

WARRANTY

McWong warranties its product to be free of defects in materials and workmanship for a
period of five years. There are no obligations or liabilities on the part of Pacific for
consequential damages arising out of, or in connection with, the use or performance of
this product or other indirect damages with respect to loss of property, revenue or profit,
or cost of removal, installation or reinstallation. McWong owns the explanation right.

A. Purpose of control: Operating Control
B. Construction of control: Independently Mounted for Panel Mount
C. Type 1.C Action
D. Pollution Degree 2
E. Impulse Voltage: 4000 V
