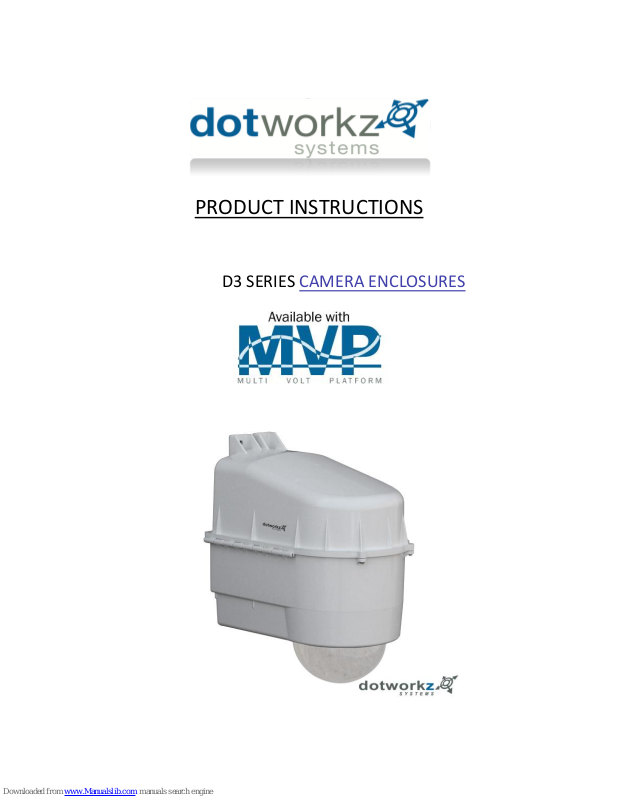

PRODUCT INSTRUCTIONS
D3 SERIES CAMERA ENCLOSURES
Table of Contents
Limited Warranty Info ..………………………………………………………………………………………………………………………………………………………………………………... 0
Product Installation Precautions, Warnings, and Installation Guidelines ......................................................................................................... 1
Conduit Guidelines ......................................................................................................................................................................................... 2
Vent Plugs Installation Guide ......................................................................................................................................................................... 3
D3 Component Checklist for camera installation / Camera Mount Bracket ...................................................................................................... 4
Intro to MVP Power ...................................................................................................................................................................................... 5
24V Input MVP Power ................................................................................................................................................................................... 6
High Voltage Input MVP Power ...................................................................................................................................................................... 7
Camera Power Setup (Standard 12VDC Connector and NON-STANDARD 12VDC CONNECTOR) .......................................................................... 8
Camera Installation (Generic) ......................................................................................................................................................................... 9
Steady Step Mounting Instructions ......................................................................................................................................................... 10, 11
COOLDOME Input Configuration ............................................................................................................................................................. 12, 13
Power Specifications – High Voltage Inputs................................................................................................................................................... 14
D3 Exploded View ........................................................................................................................................................................................ 15
D3 Mounting Template ................................................................................................................................................................................. 16
LIMITED WARRANTY
DOTWORKZ, INC. PRODUCTS
DOTWORKZ SYSTEMS INC. Warrants this Product to be free from defects in material or workmanship, as follows:
PRODUCT CATEGORY
All Enclosures and Electronics
Power Supplies
The limited warranty stated in these product instructions is subject to all of the following terms and conditions:
1. NOTIFICATION OF CLAIMS: WARRANTY SERVICE: If Purchaser believes that the Product is defective in material or workmanship, then a written notice
with an explanation of the claim shall be given promptly by Purchaser to Dotworkz Systems but all claims for warranty service must be made within the warranty period. If after investigation
Dotworkz Systems determines that the reported problem was not covered by the warranty, Purchaser shall pay Dotworkz Systems for the cost of investigating the problem at its then prevailing per
incident billable rate. No repair or replacement of any Product or part thereof shall extend the warranty period as to the entire Product. The specific warranty on the repaired part only shall be in
effect for a period of ninety (90) days following the repair or replacement of that part or the remaining period of the Product parts warranty, whichever is greater
2. EXCLUSIVE REMEDY: ACCEPTANCE: Purchaser's exclusive remedy and Dotworkz System’s sole obligation is to supply (or pay for) all labor necessary to repair any Product found to be defective
within the warranty period and to supply, at no extra charge, new or rebuilt replacements for defective parts
3. EXCEPTIONS TO LIMITED WARRANTY: Dotworkz Systems shall have no liability or obligation to Purchaser with respect to any Product requiring service during the warranty period which is
subjected to any of the following: abuse, improper use, negligence, accidents, lightning damage or other acts of God (i.e., hurricanes, earthquakes), modification, failure of the end-user to follow the
directions outlined in the product instructions, failure of the end-user to follow the maintenance procedures written and recommended in the product instructions and service manual, or
recommended by the International Security Industry Organization. Furthermore, Dotworkz Systems shall have no liability where a schedule is specified for regular replacement, maintenance or
cleaning of certain parts (based on usage) that the end-user has failed to abide to such schedule; attempted repair by non-qualified personnel; operation of the Product outside of the published
environmental and electrical parameters; if such Product's original identification (trademark, serial number) markings have been defaced, altered, or removed. Dotworkz Systems excludes from
warranty coverage Products sold AS IS and/or WITH ALL FAULTS and excludes used Products which have not been sold by Dotworkz Systems to the Purchaser. All software and accompanying
documentation furnished with, or as part of the Product is furnished "AS IS" (i e., without any warranty of any kind), except where expressly provided otherwise in any documentation or license
agreement furnished with the Product.
4. PROOF OF PURCHASE: The purchaser’s dated bill of sale must be retained as evidence of the date of purchase and to establish warranty eligibility.
PARTS LABOR
One (1) Year One (1) Year
One (1) Year One (1) Year
DISCLAIMER OF WARRANTY
ALL IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY WARRANTY WITH REGARD TO ANY CLAIM OF 1NFRINGEMENT THAT MAY BE PROVIDED IN SECTION 2-312(3) OF THE UNIFORM COMMERCIAL
CODE AND/OR IN ANY OTHER COMPARABLE STATE STATUTE. DOTWORKZ SYSTEMS HEREBY DISCLAIMS ANY REPRESENTATIONS OR WARRANTY THAT THE PRODUCT IS COMPATIBLE WITH ANY COMBINATION OF NON-V1DEOLARM PRODUCTS OR
NON-DOTWORKZ SYSTEMS RECOMMENDED PRODUCTS THAT THE PURCHASER CHOOSES TO CONNECT TO THE PRODUCT.
LIMITATION OF LIABILITY
WHETH ER ARISING IN TORT DP CON TRACT SHAL L NOT BE GREATER THAN THE ACTUAL PU RCHA SE PRIC E OF TH E PRO DUCT WITH RESPEC T TO WHICH
PURCHASER FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY KIND INCL UDING BUT NOT LIMITED TO COMPENSATI ON, REIMBURSEMENT OR DAMAGES ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE
PROFITS, OR FOR ANY OTHER REA SON WHATSOEVER.
EXCEPT FOR TH E FOREGOIN G WARRANTIES, DOT WORKZ SYST EMS HEREBY DISCLAI MS AN D EXCLU DES ALL OTH ER WARRAN TIES, EXPRESS ED OR IMPLIE D, INCLUDING, BUT NOT LIMITED TO ANY AND/OR
THE LIABILITY OF DO TWORKZ SYS TEMS, IF ANY, AND PURCHASER'S S OLE AN D EXCLUSIVE REMEDY FOR DAMAGES FOR ANY CLAIM O F ANY KIND WHATS OEVER, REGAR DLESS OF THE LEGAL THEORY AND
SUCH CLAIM IS MADE. IN NO EVENT SHALL DOTWORKZ SY STEMS BE LIABLE TO
0
PRODUCT INSTALLATION
IMPORTANT SAFEGUARDS
1 Read Instructions - All the safety and operating instructions should be read
before the unit is operated.
2 Retain Instructions -The safety and operating instructions should be retained for
future reference.
3. Heed Warnings - All warnings on the unit and in the operating instructions
should be adhered to.
4. Follow Instructions -All operating & user instructions should be followed.
5. Electrical Connections - Only a qualified electrician should make electrical
connections.
6. Attachments - Do not use attachments not recommended by the product
manufacturer as they may cause hazards
7. Cable Runs - All cable runs must be within permissible distance
8. Mounting -This unit must be properly and securely mounted to a supporting
structure capable of sustaining the weight of the unit. Accordingly:
a. Installation should be made by a qualified installer.
b. Installation should be in compliance with local codes
c. Care should be exercised to select suitable hardware to install the unit,
taking into account both the composition of the mounting surface and
the weight of the unit. Be sure to periodically examine the unit and the
supporting structure to make sure that the integrity of the
installation
is intact. Failure to comply with the foregoing could result in the unit
separating from the support structure and falling, with resultant damages
or injury to anyone or anything struck by the failing unit,
SERVICE
If the unit ever needs repair service, customer should contact Dotworkz Systems +1
(619) 224-LIVE (5483) for return authorization & shipping instructions
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, D O NOT EXPOSE
COMPONENTS TO WATER OR MOISTURE
The lightning flash with an arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of non-insulated "dangerous
voltage" within the product's enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and
maintenance (servicing) instructions
in the literature accompanying the
appliance
UNPACKING
Unpack carefully. Electronic components can be damaged if improperly handled
or dropped. If an item appears to have been damaged in shipment, replace it
properly in its carton and notify the shipper. Be sure to save
1.The shipping carton and packaging material. They are the safest material in
which to make future shipments of the equipment.
2. These Installation and Operating Instructions.
PRECAUTIONS – WARNINGS – ADDITIONAL INFORMATION
(RETAIN THIS DOCUMENT)
The External Nut on All electrical wire feed Glands must be tightened to create a weather tight seal prior to putting D2 in service. Failure
to create this seal may result in water incursion into enclosure. This may lead to electrical shock, product failure and damage to electrical
systems installed within enclosure, including but not limited to damage to camera, heater and blower circuitry, cooling circuitry and other
systems installed in unit.
All screws on hinged lower must be tightened to create seal on enclosure. Failure to create this seal may result in water incursion into
enclosure. This may lead to electrical shock, failure and damage to electrical systems installed within enclosure, including but not limited
to damage to camera, heater and blower circuitry, cooling circuitry and other systems installed in unit.
Do not over tighten any Screws, Stand Offs, or other fasteners on this unit. Failure to heed this warning will cause damage or failure of
the D2 enclosure.
Be sure to take extra care to Protect Lens of unit prior to and during installation, and during service. Suspension packaging box is a handy
platform to protect lens and enclosure, while installing camera and accessory electronics before installation. Failure to protect lens will
adversely affect product perform
1
Conduit Guidelines:
1) If wires, cabling, or conduit are coming at enclosure wire entry level, or above, always create a drip loop.
2) Please use only approved watertight electrical conduit and connectors, IP66 or better, with proper seals and fittings installed & fully seal.
3) Then, after all wire and cables are installed into enclosure, Seal wire entry ports inside of enclosure with any number of commercially
available sealing putty’s, Silicone Sealant, or similar products that are approved by applicable local and relevant electrical codes.
SHOCK HAZARD! Failure to fully seal enclosure wire and cabling entry ports may lead to shock hazard,
unsatisfactory product performance, a possibility of damage to electronics in the Dotworkz enclosure product,
including camera damage, and damage to integrated electronics due to air driven moisture traveling thru the
conduit, condensing and collecting in the enclosure creating a short circuit hazard.
Dotworkz does not endorse, nor has it evaluated any of these products. Test products first, and follow all manufacturers’ instructions.
Follow all applicable electrical and building codes and installation guidelines. End user assumes liability for applicability of these products and
their effectiveness and incurred liability in using these products.
Electrical Conduit Guidelines
For optimal performance, your Dotworkz Enclosure is designed to be Air & Water Tight to eliminate any
moisture, dust, and insect damage, safety, performance, reliability, and maintenance related issues.
Use of Electrical Conduit, without sealing the entry ports/ inside wire feeds within Camera Enclosure, will
subject the inside of your enclosure to possibility of condensation driven moisture, dust, and insect contamination
hazards.
Dotworkz has provided each enclosure with two Cable Gland Strain Relief seal ports that fully seal
enclosure to an IP68 rating, Waterproof and Airtight Seal. To properly seal, only one round cable is used in each
cable gland port. (Holes on enclosure are 7/8” diameter, ready for standard ½” I.D. NPT connector, or PG13 fittings.)
However, we realize our customers are retrofitting these connectors with electrical conduit fittings. We
acknowledge this industry customization and installation practice, and would like to guide customers to properly
install these products.
Humid Air
Condensing to Water
FORCES AT WORK IN ANY UNSEALED, CONDUIT WIRE FEED ENCLOSURE SYSTEM
WARM/MOIST IN UNSEALED CONDUIT MOVES THRU CONDUIT
FEEDS EXPAND & CONTRACT WHEN CONDUIT HEATS & COOLS
WITH OUTSIDE TEMPERATURES
EXPANDING HEATED AIR IS PUSHED INTO ENCLOSURE THEN COOLS &
CONDENSES, HUMID AIR CONDENSES ON SURFACES INSIDE
ENCLOSURE
Electrical Putty & Putty Tapes
Silicone Sealants
Foam Sealants (use very sparingly)
Dotworkz supplies two ½” diameter foam conduit plugs, that when installed, will assist in
sealing off airflow in conduit feed thru, at cable entry inside of enclosure. Putty or Sealant can be
used in conjunction with these plugs, to assure a full seal inside enclosure cable feed entry.
2
3
Optional Camera Mount Bracket for Larger Cameras #RP-AXBR (AB-1007)
Optional RP-AXBR Bracket Direct Compatibility:
(Available by special order)
Axis 231D, & 232D
DVTel 9840
Merit-LiLin PIH-7000/7600/7625
PiXORD P-463T Fast Speed Dome
Pelco Spectra IV
Sony SNCRH124, SNC-RS44N, SNC-RS46N
Toshiba IK-DP30A
Component Check List For D3
Included Standard Hardware for Camera Mounting
20
24V Input Blue Bypass Cable
In MVP models only
1
20
4
Site Power Available
110 – 220 VAC
Power Source – Single Phase Only
24 VAC/VDC
Step Down Transformer
High Voltage to 24 VAC
Site Power Available
MVP Voltage Matrix: Enclosure Input – Camera Output
Input Voltage to Enclosure
The MVP Enclosures can be powered by Inputs of either High Voltage 110-220 VAC. Or Low Volt 24 VAC/ VDC
Or
Output Voltage to Power Camera
MVP provides step down voltage to supply camera power for 12VDC, and 24V Cameras. 24V Camera Supply
24V output depends on Site Power Input, for either 24V Direct Current, or Alternating Current (see table above)
Voltage Matrix for Input / Output
*Optional 24VAC Transformer Module available
for 24VAC only cameras to convert 110-220 VAC to 24 VAC (sold separately)
Power Chassis integrated
into D-Series MVP
5
Input Power Configuration for 24 VAC/ VDC
110 – 220 VAC Power Source
Single Phase Only
Step Down Transformer
High Voltage to 24 VAC
For 24 VAC/VDC inputs; Installer must take a moment to allow input configuration for Low Voltage Input.
Use Blue 24 VAC Bypass Cable To hook up Power inside D3 as shown below.
Site Power Available
Inside all D3-MVP is a Chassis similar to shown
Locate Green Plug on Chassis
All Wiring Connections are
to be made fully inside of D3
Then insert similar Plug
on 24V Bypass Cable
Tighten screws on plug to secure
Locate 24V Bypass Cable in
Hardware Pack Provided
24 VDC: Connect wires to appropriate Color
coded terminal shown above.
24 VAC: hook-up has no polarity
24 VDC Color Code:
Red = + Positive
Blue = - Negative
When all wiring is complete, secure screws from plug to panel mount,
Then secure all wiring to be sure it does not interfere/ damage fan(s)
or camera pan - tilt operation
Unplug Green Plug on Chassis
from panel mount socket, then
push aside
The MVP comes ready for 110-220VAC Input power
Run 24V into D3 via weatherproof wiring ports provided.
Connect wires to appropriate Color Coded terminal shown here
6
110 – 220 VAC Power Source –
Single Phase Only
Use Color coded terminals for High
Voltage Input to hook up inside D3
Site Power Available
Input Power Configuration for 110 – 220 VAC
High Voltage A/C Typical Conventions, single phase (USA wiring
convention):
Color Symbol Description
Black L Line Conductor, aka: “Hot” wire
White N Neutral Conductor
Green G Ground Wire, Chassis Ground
Input Specifications
Input Voltage: 90-264 VAC, (127-370 VDC)
Frequency Range: 47- 63 HZ
Input Current @ Full Load(Typ.): 1.8A@115VAC,
1.0A@230VAC
Recommended Min. Circuit Breaker: 6 A (type C)
Int. Electrical. Working Temp*: -20 ~ +70C
MTBF: 353.6Khrs min. MIL-HDBK-217F(25C)
Power Available to Camera & Accessories (max.)
MVP using 110/ 220 VAC input to S-Type enclosure
Using ONE Output Using BOTH Output Channels (12VDC & 24VDC)
Model 12 VDC Output OR 24 VDC
Heater Blower 25 watts or 25 watts 25 watts first channel, 5 watts on second Channel
Tornado 25 watts or 50 watts 25 watts first channel, 25 watts on second channel
Ring of Fire 25 watts or 25 watts 25 watts first channel, 5 watts on second channel
Run 110-220 VAC into D3 via
weatherproof wiring ports provided.
Connect wires to appropriate Color
Coded terminal shown here
! Use Single Phase Voltage Wiring Only!
* Shut off all power before and during wiring & servicing!
*All Wiring must be done by a Qualified technician
*Observe all local and applicable electrical codes
Inside all D3-MVP is a Chassis similar to shown
All Wiring Connections are
to be made fully inside of D3
The MVP comes ready for 110-220VAC Input power
7
All D2 environmental enclosures come standard with a 12VDC Right Angle Barrel Plug (3.3mm x 5.5mm
with a 1mm center pin) for majority of the IP cameras on the market.
Right Angle Standard
Inline version
If you IP camera’s power connector is different but still accepts up to ~ 13VDC for power, please see our
section on Camera Power Setup (NON-STANDARD CONNECTOR) for instructions on how to power
your camera. Below are pictures of typical NON-STANDARD CONNECTORS.
DC plugs with NO center pin
Terminal pin connectors
Terminal connector
8
Align camera on D3 camera bracket so as to center camera’s “pan” axis directly over center of camera plate
Secure the camera plate to Steady Step slide bracket by using (4) #8-32 Pan Head
Machine screws into D3.
This edge nests in arch at front of D3
This edge of the bracket faces back of the D3
provided. The D3 camera bracket has been pre-drilled with most of the popular camera mounting hole patterns. Align
pre-drilled holes on camera plate to best fit your camera model. Use hardware provided to secure to D3 camera plate.
On some camera models, new holes may need to be drilled by installer to secure to D3 camera bracket, or for installer to
provide misc. hardware to secure camera to provided D3 bracket.
Orientation of Camera Plate when installed into D3 Enclosure
Steady Step Camera Height Adjustment Brackets
Steady Step brackets are the brushed aluminum brackets pre-installed in every D3 enclosure. Using the Steady
Step brackets as illustrated in following pages, Camera mounting plate can be adjusted to any height from 0.5” to over
6” by using ¼” stepping ladder system. Steady Step camera bracket is an easy to adjust, stable, mounting system that
adjusts to fit virtually every major PTZ camera on the market.
By utilizing the lower mounts around the lens on hinged lower of D3, virtually any PTZ or Mini-Dome Camera can
be mounted into the enclosure at any level. By using the included 1/8” tall brass standoff set, the Steady Step system
can be attain half steps of 1/8” steps for a precision optimized camera height adjustment within dome lens.
The enclosure lens bubble has 3.5” of internal depth clearance, beyond housing depth, that enables the D3 to
house cameras of heights from mini-domes, to camera heights of over 12” tall, while providing plenty of room for
integrated products, with convenient mounting / anchoring inserts in upper of housing.
The Upper mounts above the camera are freed up to mount accessories by utilizing the lower mounts only for all
sizes of cameras.
9
Steady Step Mounting System
Steady Step Bracket Steps adjust in ¼” increments. To adjust 1/8” between step settings, add 1/8” brass male-male hex stand-off
(ITEM NO. 6) shown in detail D (below), and provided in D3 hardware pack, by threading on top of movable slide bracket of steady
step bracket system, then fastening camera bracket (CB-1007 or AB-1007).
11
COOLDOME Input Power Configuration: D3-CD-12VDC
110 – 220 VAC Power Source
Single Phase Only
500 watt Step Down P/S
High Voltage to 12 VDC
Provided P/S: SP500
Must be Housed Indoors, or in
a NEMA Electrical Enclosure
Site Power Available
High Voltage A/C Input, Single Phase, USA Wiring Color Code
Color Symbol Terminal Description
Black L 1 Line Conductor, AKA Live, Hot
White N 2 Neutral Conductor
Green FG 3 FG, Field Ground, Chassis Ground
Front of Power Supply with terminal strip
The D3 CD has two Coolers that run
independently.
To reduce low voltage current load, it is best to
run two pairs- individually –
So each 12VDC paired wiring runs load of one
cooler
Low Voltage 12 VDC Output Terminals
Color Symbol Terminals Description
Red +, V+ 9,10,11 Positive VDC
Black -. V- 12,13,14 Negative VDC
12 VDC Cable to
COOLDOME
Turn Off Power or leave power disconnected during Installation of All Wiring.
Follow all local and relevant electrical codes & standards.
Test all Wiring and confirm correct voltages before wiring up & powering up COOLDOME.
LOW VOLTAGE RUN
LOW VOLTAGE RUN: Wire Gauge Chart for D3-CD-12VDC: each cooler wired on independent 12VDC wire pairs
Wiring from Step Down P/S to D3 CD
Round, Water rated cable bundle,
such as SJOOW - 4 conductor
makes for an easy install and seal
into provided cable ports
Humidity Control Pack
12
COOLDOME Input Power Configuration: D3-CD-12VDC
Warning!!!: COOLDOME Enclosure runs on 12 VDC only! If high voltage is applied directly to COOLDOME enclosure,
you will damage housing, void warranty, and create electrocution hazard that can be harmful or fatal. Do not start
wiring until you have fully read and understand these installation instructions.
External Power Supply: Model SP-500
The step down power supply provided with each D3 COOLDOME must be mounted outside of the D3 enclosure. This
power supply is must be mounted indoors or in an environmentally protective enclosure. The power supply can be powered by 95-
264 VAC, single phase source voltage. It is self-ranging, so no switch adjustment is needed if you power it from a 110 VAC source,
or 220 VAC source voltage (single phase). Optional outdoor rated, sealed power supplies are available sold separately.
The output of the SP-500 is rated up to 40 amps peak output @ 12VDC. Output 12 VDC can be tuned up or down 10% to
optimize regulated output, via a small nylon adjustment to left of 12V output terminals on face of power supply . It is
recommended to tune the voltage at power supply between 12.0 VDC – 13.5 VDC in unloaded condition. A higher voltage setting
may create premature fan failure, and settings above 15VDC may cause costly failure to main cooling components. Use voltage
meter to confirm all voltages before connecting COOLDOME to power supply. Firmly tighten all screw terminal connections and
check there are no stray wire strands that can create short between wires and terminals.
Wiring Guidelines:
Dotworkz recommends wiring the low voltage 12VDC outputs so that there are two pairs of wires from the SP-500
P/S outputs, to power each cooler independently, to reduce the need for very heavy wire gages on low voltage wiring run, thus
eliminating voltage drop issues. Dotworkz recommends to keep all low voltage wiring runs, as short as possible, by installing step
down power supply near to COOLDOME.
Dotworkz recommends using 12gg copper wire, or thicker, even on shortest wire runs of 20 ft or less, wired between
coolers and step down power supply (per cooler). SJOOW 12-4 type cable provides a stranded 4 conductor round bundle ideal for
under 20 ft low voltage cabling, when using our stock cable gland ports, creating a good waterproof seal around cabling to
enclosure.
Follow wire gage recommendation on table provided found on prior page, for proper wire gage minimums based on
distance between step down power, and COOLDOME. Voltage drop is based on fully loaded “cooler engaged” conditions (and
camera powered, allowing up to 3 amps) at typical ambient temperatures of 100F.
Inside D3 CD at rear of upper on enclosure will be two pairs of color coded screw terminal blocks to conveniently
and securely attach low voltage wiring. Always check voltage to assure 12VDC is properly wired into enclosure, and observe
proper polarity.
Each of the Coolers on the D3 are set up for independent operation, and therefore will switch on and off at slightly
different set points, when properly powered and wired. This adds fail safe redundancy to system, as well as electrical efficiency;
as second cooler only engages only at higher thermal loads.
Fully Seal Enclosure
D3 COOLDOME is engineered to operate in fully sealed conditions only. Failure to fully seal wire ports and all seals will
allow unsatisfactory cooling, and condensation to form within enclosure.
Always completely seal wire ports when completing wiring installation, especially when using conduit; even within inside
wire feeds. See Conduit guideline section in this manual for proper conduit installation.
Always create a Drip Loop on wiring that comes from overhead the enclosure, to reduce the risk of water entering
enclosure at wire seal ports.
Only use one round cable per provided wire port seal / cable gland. Attempting to run multiple separate wires thru one
cable gland will create air and water leaks, and will not seal properly. Use of flat cable or zip cord will not allow cable gland ports
to seal properly, creating leaks and product damage.
Humidity Control Pack
A Humidity control pack is provided to eliminate humidity in trapped air within COOLDOME. Each COOLDOME product
includes a canister that contains 40 grams of silica gel. This will prevent moisture buildup inside of the CD housing.
Make sure to remove canister from its sealed foil packaging, and secure into enclosure prior to enclosure use. Double stick
tape, Velcro tape, large zip ties, or fine wire are common ways to secure the canister. Secure canister above camera- on top of
camera bracket, or where space provides. Be sure not to obscure holes on canister so as to allow it to operate effectively.
There is a small window on the canister (see white circle on image). Ensure that the crystals are blue. Occasionally,
especially in humid environments, the canister may need to be serviced. If so, the crystals in the window turn pink when silica gel
is saturated with moisture. The tin canister can be reactivated by being placed in an oven at 300F for three hours, or until crystals
turn blue again. The gel can be reactivated virtually and infinite number of times.
13
D3 High Voltage Power Supply Specifications
D3 COOLDOME SP-500-12 Power Supply
D3 MVP Models – High Voltage Inputs
14
D3 Exploded Detail
15
D3 Mounting Detail
16
Loading...
