Muxlab Passive CCTV Hub User Manual

VideoEase™ Passive CCTV Hub (500130,500131)

Installation Guide

P/N: 94-000604-A, SE-000413-A

Pag

Copyright Notice :

Printed in Canada. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise without prior written permission of the author.

Trademarks :

MuxLab and VideoEase are registered trademarks of MuxLab Inc.

e 2

Pag

Overview

1.1. Description

The Passive CCTV Hub allows video, remote power and PTZ control to be transmitted via one 4-pair Cat 5 cable, thus eliminating the need to install multiple cables for more efficient cabling in the security video environment. There are two 16-port models: 500130; for coax video output and the 500131; for twisted pair video output.

The Passive CCTV Hub works in conjunction with MuxLab’s 500000, 500009, 500015, 500022, 500023, 500024, 500029, 500120 and 500122. The product features a port switch to set the unit to Power-Thru or Pass-Thru mode.

1.2. Features

• Port switch to set unit to Pass-Thru Mode (500022) or Power-Thru Mode

(500024/500029)

• Pin configuration chart on unit

• Space efficient, rack-mountable

e 4

Pag

2.

Technical Specifications

Specifications

Environment Devices Transmission

Video

Bandwidth Maximum Input Insertion Loss Return Loss Common Mode Rejection Max. Distance - Color

Max. Distance - B&W

Remote Power

Switch Mode Pass-Thru Mode (500022) Power-Thru Mode (500024/500029) Number of twisted pairs Max. Distance @ 24VAC*

*Based on 10% voltage drop at camera. Longer distances may be achieved @ 28 VAC.

Maximum Input Voltage

Maximum Current Rating

2-Wire PTZ Control (i.e. RS-422, Manchester/Bi-Phase, half duplex RS485) – Pass-Thru Mode (500022)

Wiring

Maximum Distance

Maximum Power Rating

Mechanical & Environmental

Cable – UTP

Cable – Coax

Connectors

Port Configuration Switch

RJ45 Pin Configuration* Signal 500022 Mode 500024/500029 Mode

*Reverse polarity sensitive

Temperature

Enclosure

Dimensions

Weight

Warranty

Order Information

Composite video; NTSC, PAL, SECAM CCTV cameras, DVRs, monitors, switchers, multiplexers and other CCTV equip. Transparent to the user.

DC to 8 MHz.

1.1Vp-p Less than 2 dB per pair over the frequency range from DC to 8 MHz Greater than 15 dB over the frequency range from DC to 8 MHz Greater than 40 dB @ 8 MHz Cat 3 –1,200 ft (365m); Cat 5 – 2,200 ft. (670m)*

*Shorter distances will result with DVR equipment. Typically 1,000 to 1,500 ft

Cat 3 –1,500 ft (457m); Cat 5 – 2,500 ft (762m)

Two (2) Three (3) 5 VA: 350 ft (107m) 10 VA: 175 ft

(53m)

20 VA: 90 ft (30m) 30 VA: 60 ft (20m)

50 Volts (AC RMS/DC). Recommended Class II PSU with fuse protection per port

4.5A (AC RMS/DC)

Remote 2-wire PTZ control supported via one (1) twisted pair. Up to 4,000 ft (1.2 km) depending on the PTZ camera vendor**

**Please consult your CCTV equipment vendor for more detailed performance

specifications.

50 Volts (AC RMS/DC); 3A (AC RMS/DC)

24 AWG or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000 ft at 1 MHz

Impedance: 75 Ω at 1 MHz. (RG59/U). Max. 25 ft. of coax allowed end to end. Video (Model 500130): Sixteen (16) BNC-F

Video (Model 500131): Sixteen (16) 2-pole screw terminals Power: Sixteen (16) 2-pole screw terminals Control: Sixteen (16) 2-pole screw terminals. Combined signals: Sixteen (16) RJ45 jacks Sets each port to Pass-Thru Mode (500022) or Power-Thru Mode (500024/500029)

Power A (+) 1, 3 1, 3, 5 Power B (-) 2, 6 2, 4, 6 Control (+) 4 Not used Control (-) 5 Not used Video BNC Center (Tip) 7 [T] opposite to 500000 7 [T] opposite to 500000 Video BNC Ground (Ring) 8 [R] opposite to 500000 8 [R] opposite to 500000 Operating: 0° to 55°C. Storage:-20° to 85°C. Humidity: up to 95% Black, anodized aluminum 19” (48.26 cm) W x 1.75” (4.4 cm) H x 2.0” ( 5.1 cm) D

2.3 lbs. (1.1kgs) Lifetime 500130 Passive CCTV Hub, UTP/Coax

500131 Passive CCTV Hub, UTP/UTP

5 VA: 518 ft (170m) 10 VA: 259 ft (85

m)

20 VA: 130 ft (43 m) 30 VA: 86 ft (28 m)

e 5

Pag

3.

Installation Procedure

3.1. Parts List

The Passive CCTV Hub comes with the following parts. Please verify that all pieces are present before proceeding.

• Base Unit (Factory configuration: Power-Thru Mode (500022)

• Installation Guide

3.2. Product Overview

The external connections of the Passive CCTV Hub are detailed in the following diagrams. Please familiarize yourself with them before installing the unit.

Figure 1: Front panel, all models

Figure 2: Rear panel, Model 500130 (UTP/Coax)

Figure 3: Rear panel: Model 500131 (UTP/UTP)

e 6

Pag

3.3. Pre-Installation Checklist

The Passive CCTV Hub provides a centralized sixteen (16) port CCTV copper twisted pair cabling solution.

1. The Passive CCTV Hub is used in a CCTV installation to manage the

video, power and control connections between the CCTV cameras and the head-end.

2. There are two (2) models of the Passive CCTV Hub; 500130 and 500131.

The difference between the 500130 and 500131 is that the video portion of the 500130 incorporates a video balun at each port and is connected to the DVR via coaxial cable. The video portion of the 500131 is fully twisted pair on the input and output and connected to the DVR via twisted pair cable. In order to convert from twisted pair back to coax, a CCTV video balun is connected at each DVR port.

3. The products feature a switch at each port to select between Pass-Thru

Mode (500022 compatible) or Power-Thru Mode (500024/500029 compatible) depending on the cabling configuration.

4. The Passive CCTV Hub works in conjunction with MuxLab’s other CCTV

products including the 500000, 500009, 500015, 500022, 500023, 500024, 500029, 500120 and 500122). The passive CCTV Baluns are connected at the CCTV camera.

5. The Passive CCTV Hub works with CCTV cameras that have built-in

twisted pair baluns. It may be necessary to reverse the polarity of the wires first. Distance performance may vary.

e 7

Pag

3.4. Physical Installation

The Passive CCTV Hub is a 1U, 19” rackmount unit. The factory default switch settings of each port is Pass-Thru Mode (500022).

1. Select the final destination for the product in the relay rack and install the

unit using standard rackmount screws.

Figure 4: Rack-mount installation

e 8

Pag

3.5. Installation Procedure – Model 500130

The Passive CCTV Hub, Model 500130 features BNC connectors on the video portion of the device, thereby allowing it to be connected directly to the DVR via coaxial cable. In order to install the product in this configuration, please follow the steps below:

1. Install the Passive CCTV Hub in its final location. Please verify that the

distance between the rack and cameras are within MuxLab specifications.

2. Connect a MuxLab passive CCTV Balun (MuxLab p/n 500000, 500009,

500022, 500023, 500024 or 500029) to each CCTV camera video output. Please refer to the appropriate CCTV balun installation guide for details.

3. Connect one Cat5 cable from each camera to one of the modular RJ45

ports on the front of the Passive CCTV Hub (fig 5). Please ensure that EIA 568 wiring and straight-through polarity is respected between the CCTV balun and the rack. The use of other Cat5 connection hardware such as patch panels and 110 blocks may be used.

Figure 5: Camera connection

e 9

Pag

Port Switch Settings:

4. For each camera port, determine whether video, power and/or control is to

be transmitted via the same Cat5 cable. If only video is to be transmitted, then the Power/Control terminals and port switch may be disregarded.

5. In order to transmit video on one (1) twisted pair, remote power on two (2)

twisted pairs and control on one (1) twisted pair, set the port switch to Pass-Thru Mode (500022) using a small flathead screwdriver, as shown in fig 6. Ensure that there is a CCTV Pass-Thru Balun (500022) at the camera.

Figure 6: Port Setting – Pass-Thru Mode (500022)

6. In order to transmit video on one (1) twisted pair and remote power on

three (3) twisted pairs, set the port switch to Power-Thru Mode (500024/500029) using a small flathead screwdriver (fig 7). Ensure that there is a CCTV Power-Thru Balun (500024 or 500029) at the camera.

Figure 7: Port Setting – Power-Thru Mode (500024/500029)

e 10

Pag

Output Connections:

Video:

7. Connect one coax cable between each video output port on the rack and the

DVR video input (fig 8).

Figure 8: Video connection, Model 500130

Remote Power:

8. If remote power is being transmitted to the camera, verify that the distance

between the camera and the hub is within MuxLab specifications. Please consult the distance charts at the back of the installation guide. When the port switch is set to Pass-Thru Mode (500022), two (2) twisted pairs are used for remote power. When the port switch is set to Power-Thru Mode (500024/500029), three (3) twisted pairs are used for remote power thus supporting greater distance.

9. Connect two (2) wires between the power terminals of the hub to the

remote low voltage power supply (fig 9). It is recommended to use a

Class II power supply with fuse protection on each output port.

Figure 9: Remote power connection, Model 500130

e 11

Pag

PTZ Control:

10. If PTZ Control is to be transmitted to the camera, verify that the distance

between the camera and the hub is within the distance specifications for sending PTZ control over twisted pair. Consult the PTZ equipment vendor for maximum distances. Please ensure that the port switch is set to PassThru Mode (500022). When the port switch is set to Pass-Thru Mode (500022), one (1) twisted pair is used for PTZ control. For optimum results, it is recommended to use control protocols such as RS-422, RS-485 or Bi-phase. Due to crosstalk issues, RS-232 is not recommended.

11. Connect two (2) wires between the PTZ controller and the “Control”

terminals on the hub (fig 10).

Figure 10: PTZ connection, Model 500130

12. Power on the CCTV equipment; cameras, remote power supply, PTZ

controller.

13. The following diagram shows a typical configuration.

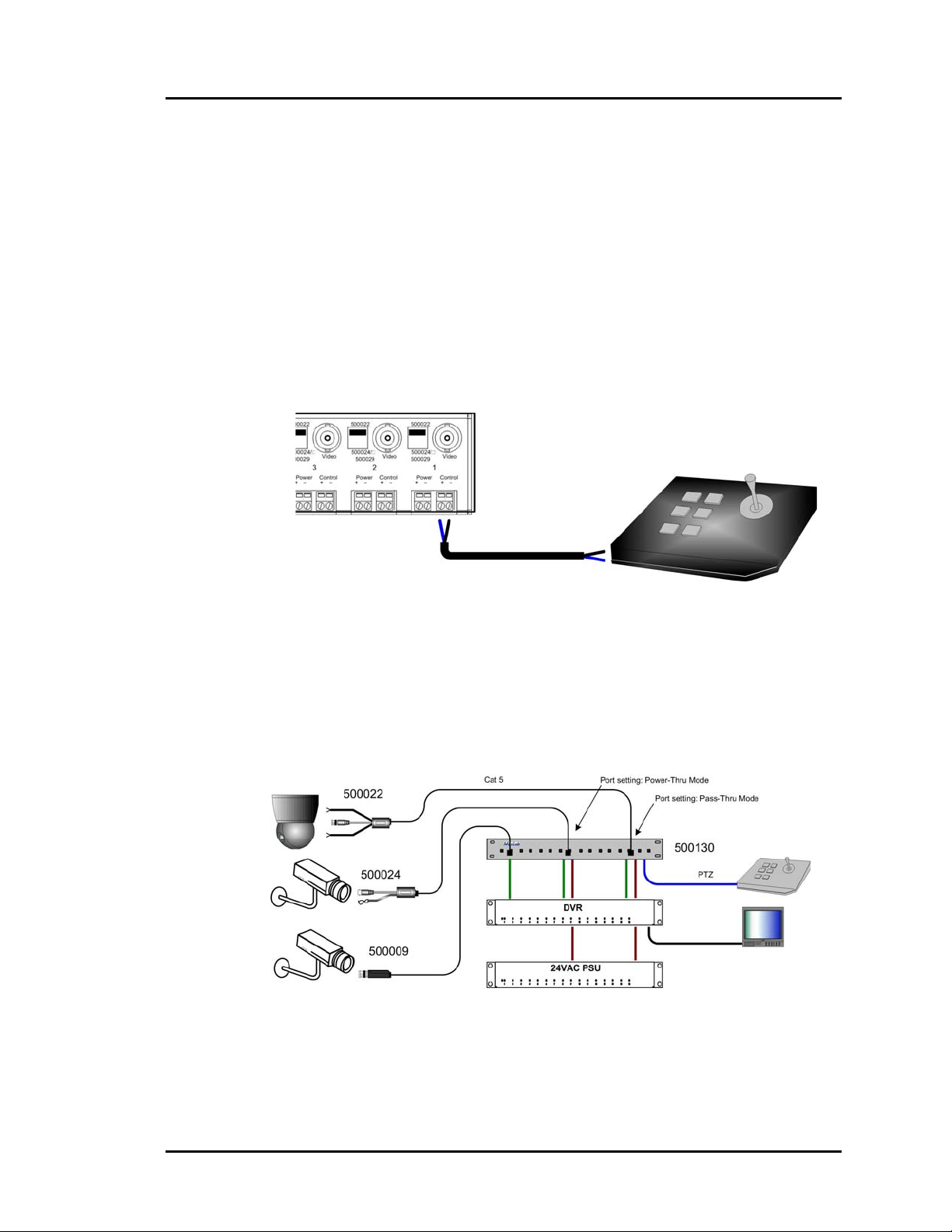

Figure 11: Typical Configuration, Model 500130

e 12

Pag

3.6. Installation Procedure – Model 500131

The Passive CCTV Hub, Model 500131 features screw terminal connectors on the video portion of the device, thereby allowing it to be connected via twisted pair to the head end equipment (DVR). Video baluns, such as the 500009, must be used at the DVR to convert back to coaxial cable. In order to install the product in this configuration, please follow the steps below:

1. Install the Passive CCTV Hub in its final location. Please verify that the

distance between the cameras and the head end are within MuxLab specifications.

2. Connect a MuxLab passive CCTV Balun (MuxLab p/n 500000, 500009,

500022, 500023, 500024 or 500029) to each CCTV camera video output. Please refer to the appropriate CCTV balun installation guide for details.

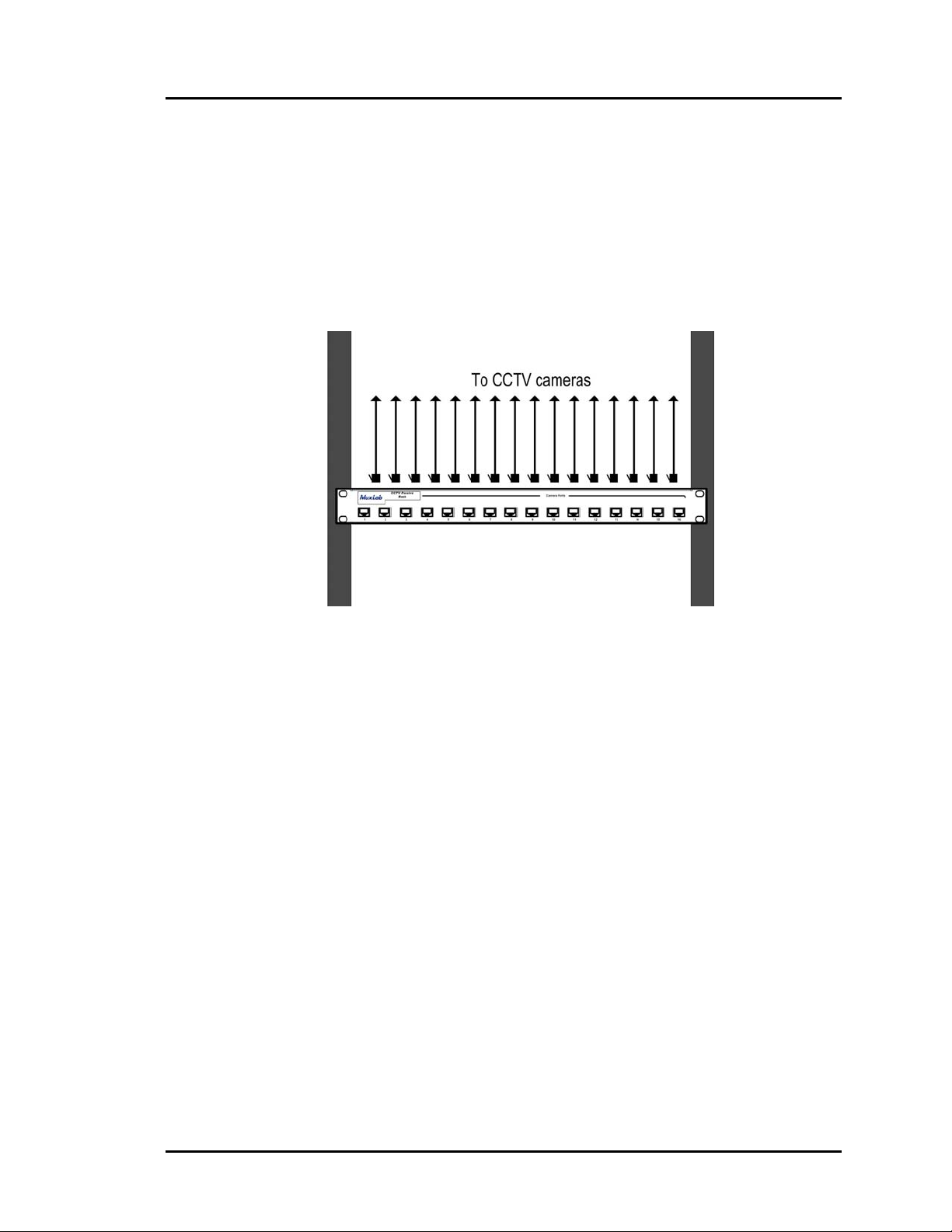

3. Connect one Cat5 cable from each camera to one of the modular RJ45

ports on the front of the Passive CCTV Hub (fig 12). Please ensure that EIA 568 wiring and straight-through polarity is respected between the CCTV balun and the rack. The use of other Cat5 connection hardware such as patch panels and 110 blocks may be used.

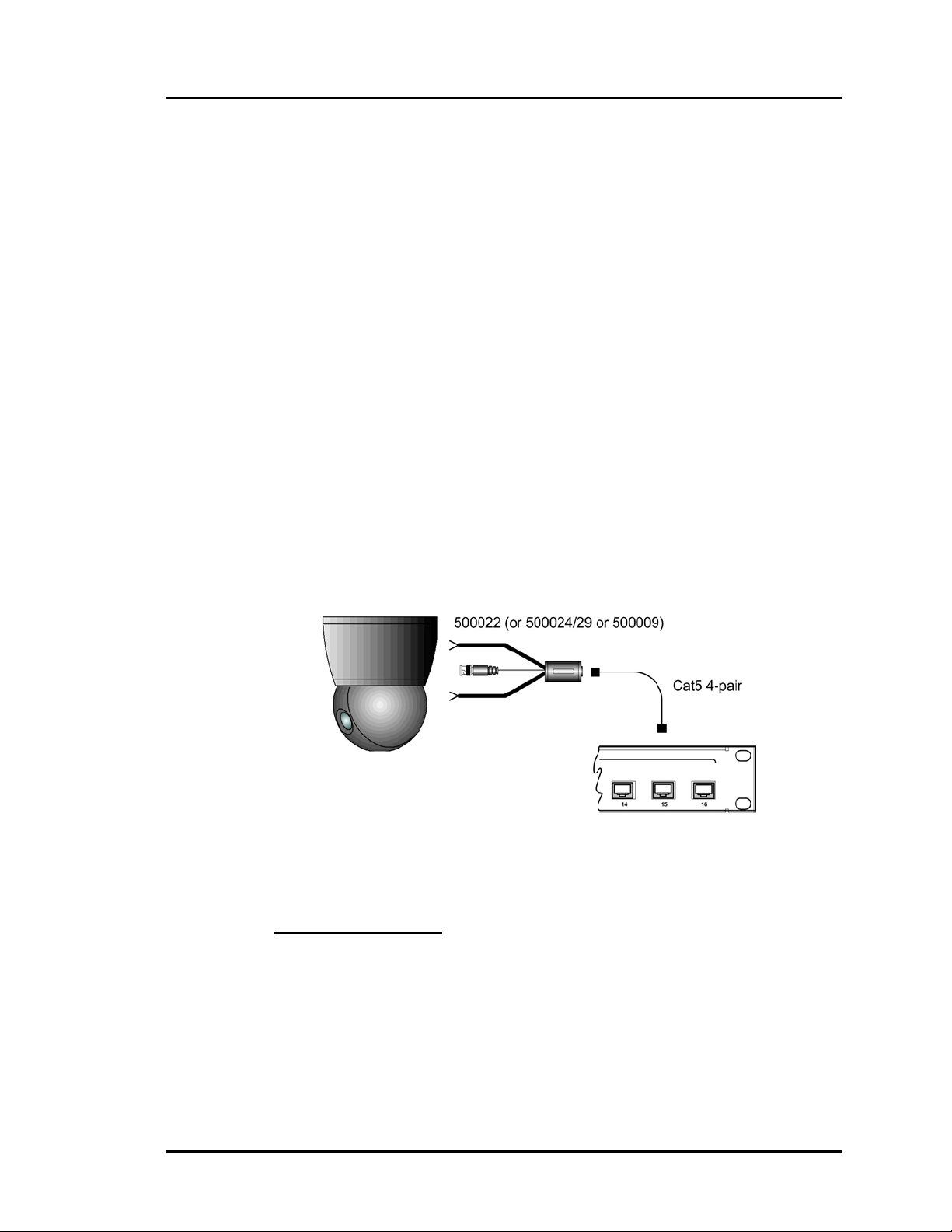

Figure 12: Camera connection

Port Switch Settings:

4. For each camera port, determine whether video, power and/or control is to

be transmitted via the same Cat5 cable. If only video is to be transmitted, then the Power/Control terminals and port switch may be disregarded.

e 13

Pag

5. In order to transmit video on one (1) twisted pair, remote power on two (2)

twisted pairs and control on one (1) twisted pair, set the port switch to Pass-Thru Mode (500022) as shown in figure 13. Ensure that there is a CCTV Pass-Thru Balun (500022) at the camera.

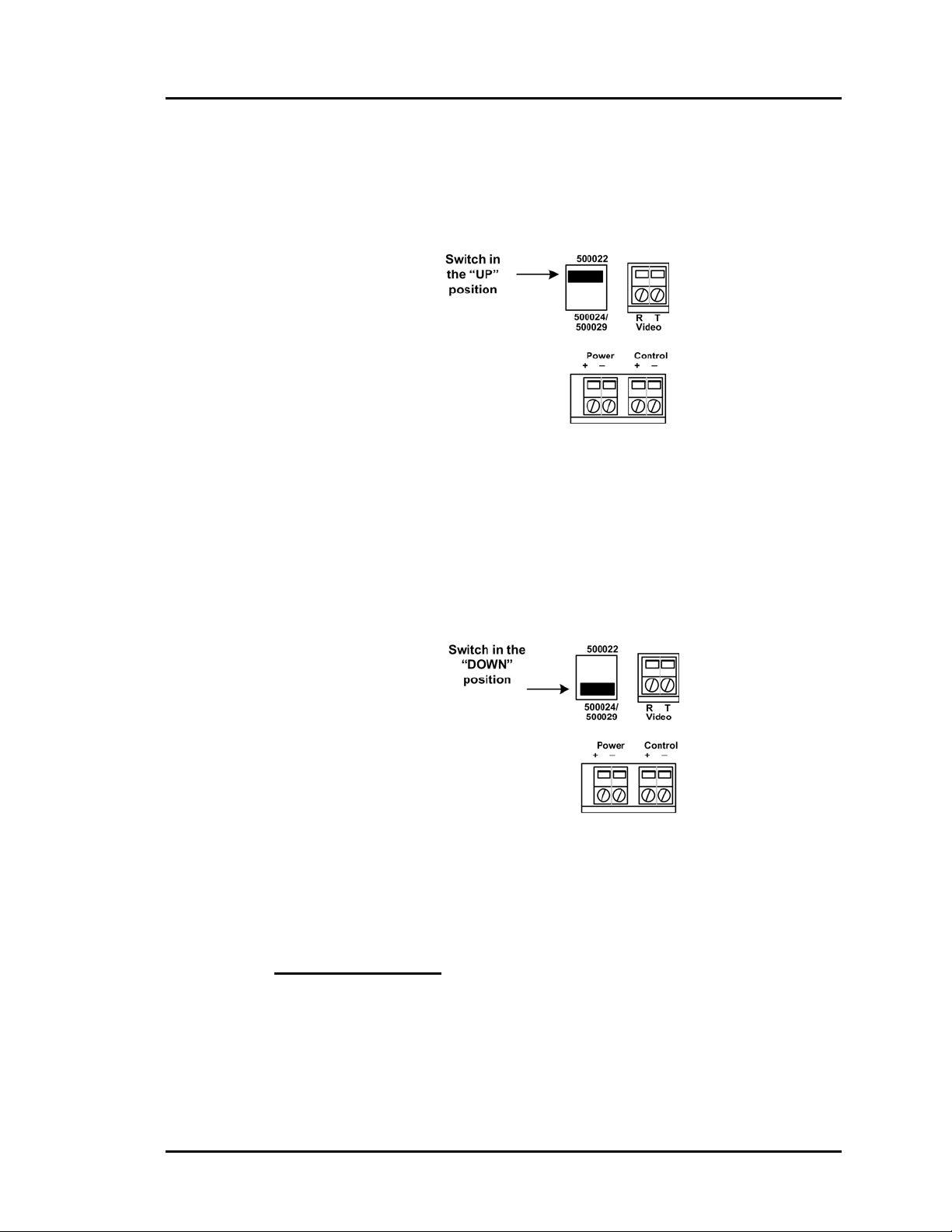

Figure 13: Port Setting – Pass-Thru Mode (500022)

6. In order to transmit video on one (1) twisted pair and remote power on

three (3) twisted pairs, set the port switch to Power-Thru Mode (500024/500029) as shown in figure 14. Ensure that there is a CCTV Power-Thru Balun (500024 or 500029) at the camera.

Figure 14: Port Setting – Power-Thru Mode (500024/500029)

Output Connections:

Video:

7. Install a CCTV balun on each port of the DVR. The products that may be

connected include; 500000, 500009, 500015, 5000023 or 500122.

e 14

Pag

8. Connect one (1) twisted pair for video between the hub and the balun on

the DVR (fig 15).

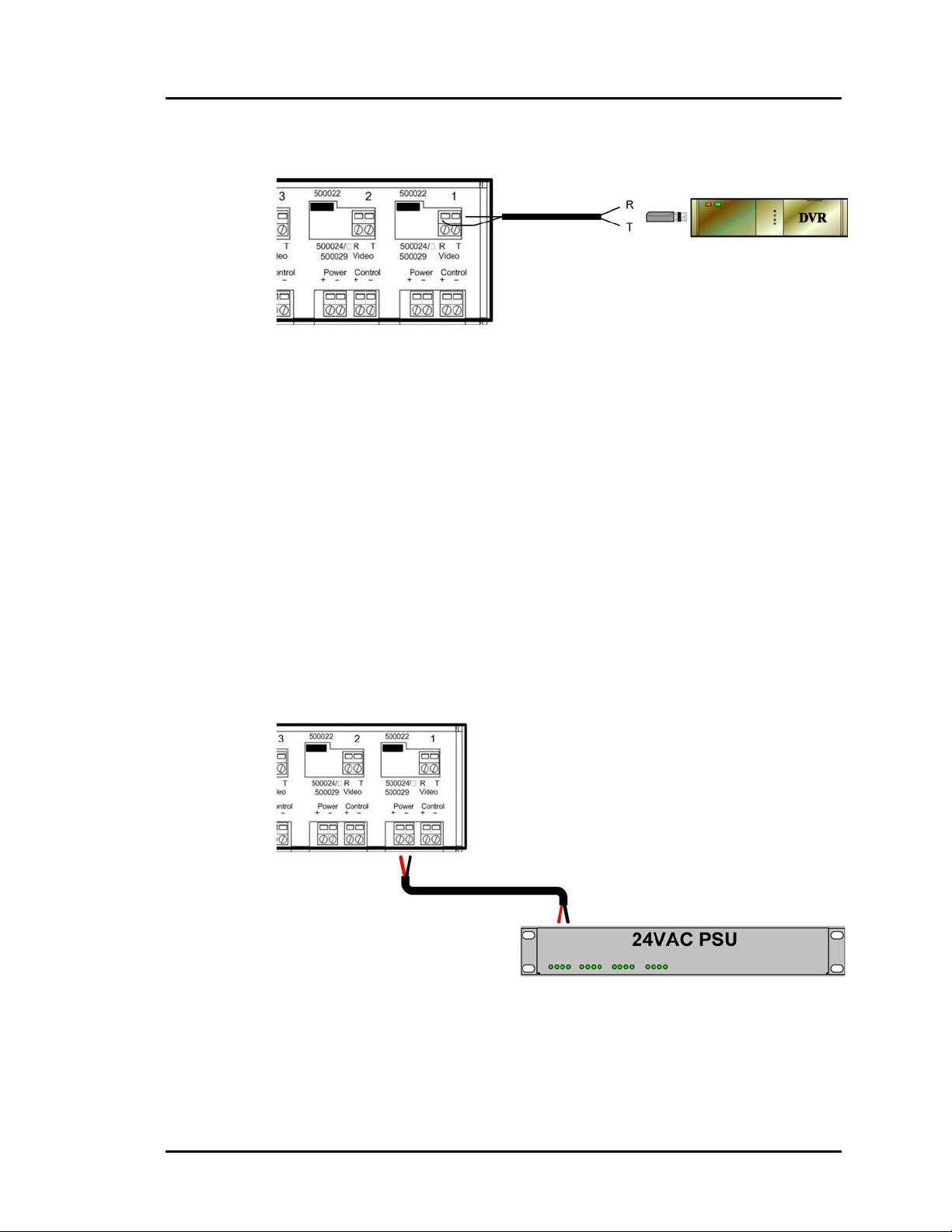

Figure 15: Video connection, Model 500131

Remote Power:

9. If remote power is being transmitted to the camera, verify that the distance

between the camera and the hub is within MuxLab specifications. Please consult the distance charts at the back of the installation guide. When the port switch is set to Pass-Thru Mode (500022), two (2) twisted pairs are used for remote power. When the port switch is set to Power-Thru Mode (500024/500029), three (3) twisted pairs are used for remote power thus supporting greater distance.

10. Connect two (2) wires between the power terminals of the hub to the

remote low voltage power supply (fig 16). It is recommended to use a

Class II power supply with fuse protection on each output port.

Figure 16: Remote power connection, Model 500131

e 15

Pag

PTZ Control:

11. If PTZ Control is to be transmitted to the camera, verify that the distance

between the camera and the hub is within the distance specifications for sending PTZ control over twisted pair. Consult the PTZ equipment vendor for maximum distances. Please ensure that the port switch is set to PassThru Mode (500022). When the port switch is set to Pass-Thru Mode (500022), one (1) twisted pair is used for PTZ control. For optimum results, it is recommended to use control protocols such as RS-422, RS-485 or Bi-phase. Due to crosstalk issues, RS-232 is not recommended.

12. Connect two (2) wires between the PTZ controller and the “Control”

terminals on the hub (fig 17).

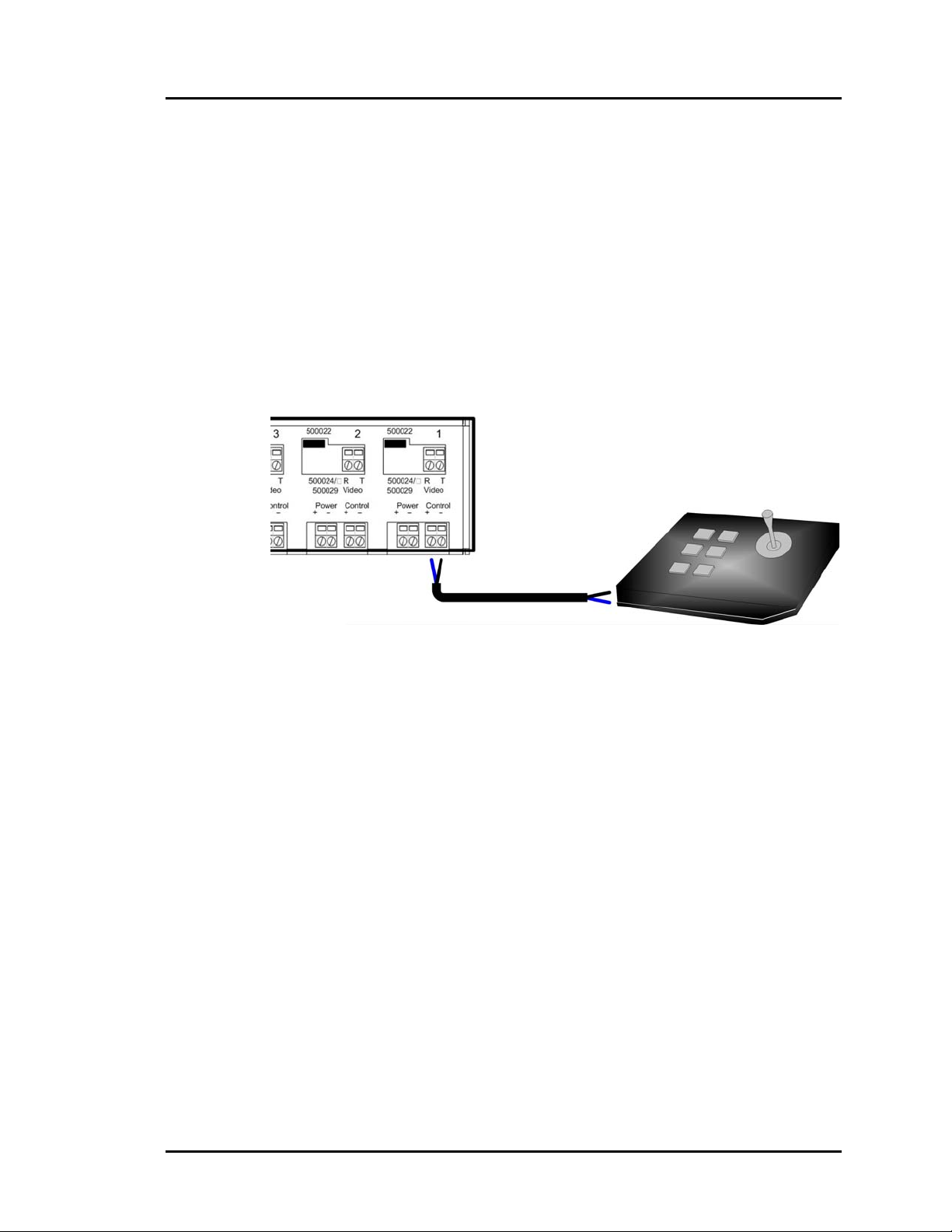

Figure 17: PTZ connection, Model 500131

e 16

Pag

13. Power on the CCTV equipment; cameras, remote power supply, PTZ

controller. The following diagram shows a typical configuration.

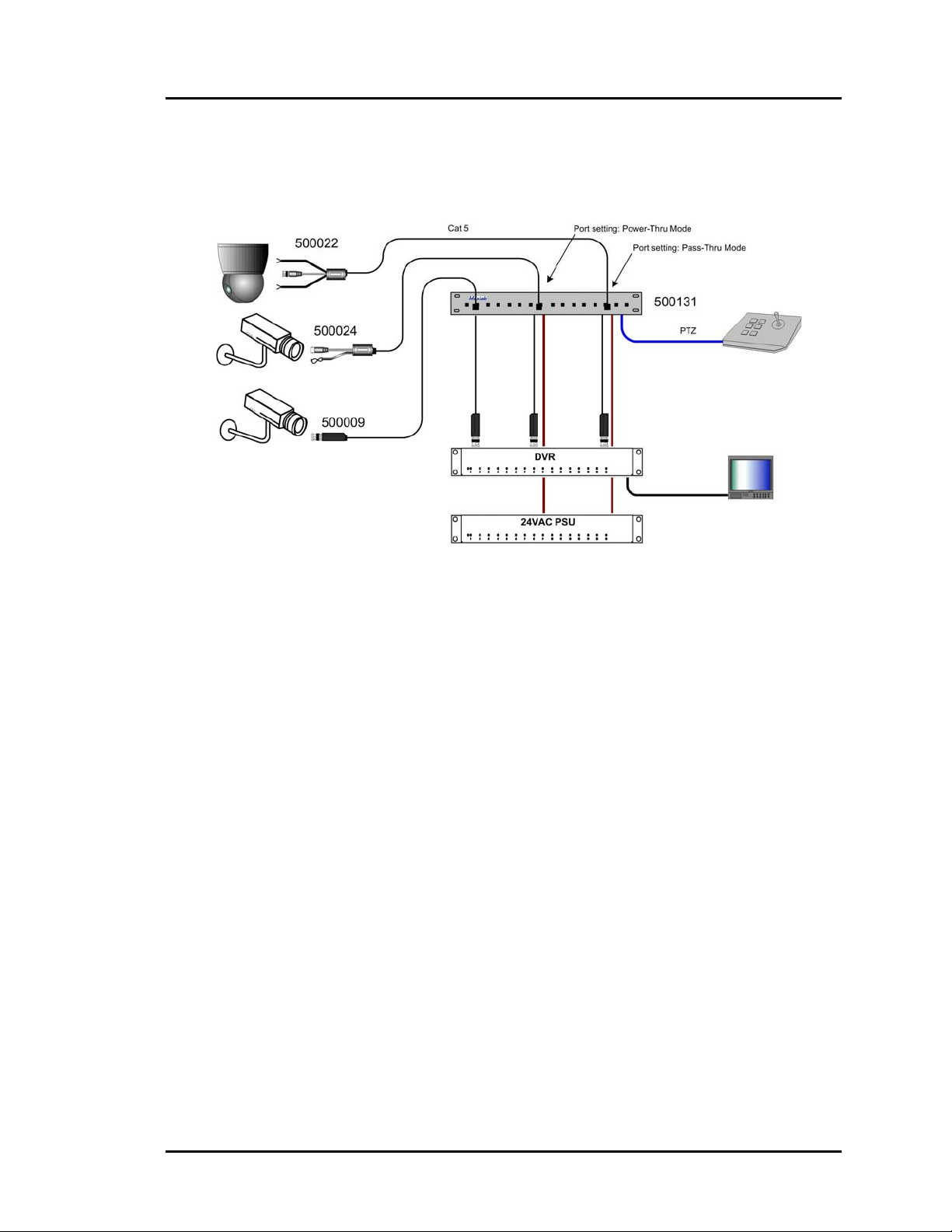

Figure 18: Typical Configuration, Model 500131

e 17

Pag

4.

Troubleshooting

The following chart describes some of the problem symptoms, the probable causes and possible solutions. If the information below does not solve the problem, please contact MuxLab Technical Support at 877-689-5228 (North America) or at (+1) 514 905-0588 (International) or via e-mail at videoease@muxlab.com.

Picture Probable Causes Possible Solutions

No video image

Poor image quality, distortions, interference

Picture loses color, faded or weak

No power or intermittent power at camera

PTZ controls not responding

• Power-off. • Check power supplies of CCTV

equipment. Check power supply fuse.

• Wrong pin

configuration

• Defective CCTV

Balun

• EMI interference

• Wires reversed on

signal pair on one side

• Split pair

• Exceeded distance

specifications

• Lower grade UTP

cable is introducing high losses

• Wires reversed on

signal pair on one side

• Split pair • Check if the UTP pairs are split and

• Lower grade UTP

cable is introducing high signal losses.

• Wrong pin

configuration.

• Distance exceeded • Verify distance specifications for remote

• Wrong pin config • Check wiring.

• Check pin configuration and verify

straight-through wiring.

• Change CCTV baluns for another pair.

• Check that wiring is not too close to

transformers and lighting ballasts

• Make sure that the wires on the signal

pair are not reversed on one side.

• Check if the UTP pairs are correct (not

split)

• Check DC loop resistance and verify if

distance spec is exceeded

• Reduce cable length or eliminate high-

loss components

• Replace cable by higher grade

• Make sure that the wires on the signal

pair are not reversed on one side.

correct. Each signal pair must be twisted.

• Use signal repeater for extended distance

or replace cable by higher grade.

• Check wiring

power. Move power closer to camera.

When contacting your nearest MuxLab dealer or MuxLab Technical Support please have the following information ready:

• Unit model number.

• Cabling lay-out. Include model of

• Description of problem.

• List of tests performed.

camera and DVR used, power supply voltage, camera wattage, cable length and type.

e 18

Pag

5.

Distance Tables

The following tables provide the maximum distances for remote power via Cat5 twisted pair when a port on the Passive CCTV Hub is set to Pass-Thru Mode (500022) or PowerThru Mode (500024/500029).

Pass-Thru Mode (500022) – Two (2) Twisted Pairs

Voltage Pcam (W) Vcam1 min (V) Dist Spec2 max (Feet) Dist Spec2 max (m)

12 VDC/AC 5 10.80 86 28

12VDC/AC camera 10 10.80 43 14

20 10.80 22 7

30 10.80 14 5

40 10.80 11 4

50 10.80 9 3

24 VAC 5 21.60 346 113

24VAC camera 10 21.60 173 57

20 21.60 86 28

30 21.60 58 19

40 21.60 43 14

50 21.60 35 11

28 VAC 5 21.60 922 302

24VAC camera 10 21.60 461 151

20 21.60 230 76

30 21.60 154 50

40 21.60 115 38

50 21.60 92 30

e 19

Pag

Power-Thru Mode (500024/500029)

Voltage Pcam (W) Vcam1 min (V) Dist Spec2 max (Feet) Dist Spec2 max (m)

12 VDC/AC 5 10.80 130 43

12VDC

AC camera

24 VAC 5 21.60 518 170

24VAC camera 10 21.60 259 85

10 10.80 65 21

20 10.80 32 11

30 10.80 22 7

40 10.80 16 5

50 10.80 13 4

20 21.60 130 43

30 21.60 86 28

40 21.60 65 21

50 21.60 52 17

28 VAC 5 21.60 1382 454

24VAC camera 10 21.60 691 227

20 21.60 346 113

30 21.60 230 76

40 21.60 173 57

50 21.60 138 45

Notes:

1. Distances are specified for temperatures of 20 oC to 30oC

2. Maximum distances based on 10% loss of voltage. For 28VAC, a 24VAC camera was used.

3. Distances specified are 90% of distances calculated.

4. If 22AWG gage wire is used, there would be an increase in distance of approximately 56%.

e 20

Pag

6.

Product Warranty Policy

Items under warranty - Company Policy

MuxLab guarantees its products to be free of defects in manufacturing and workmanship for the warranty period from the date of purchase. If this product fails to give satisfactory performance during this warranty period, MuxLab will either repair or replace this product at no additional charge, except as set forth below. Repair and replacement parts will be furnished on a exchange basis and will be either reconditioned or new. All replaced parts and products become the property of MuxLab. This limited warranty does not include repair services for damage to the product resulting from accident, disaster, misuse, abuse, or unauthorized modifications or normal decay of battery driven devices. Batteries if included with the product, are not covered under this warranty.

Limited warranty service can be obtained by delivering the product during the warranty period to the authorized MuxLab dealer from whom you purchased the product, or by sending it to MuxLab. MuxLab will not accept any such product for repair without a Return Material Authorization number (RMA#) issued by its Customer Service Department and a proof of purchase date. If this product is delivered to MuxLab by mail, you agree to assume risk of loss or damage in transit, to prepay shipping charges to the warranty service location, and to use the original shipping container or equivalent.

THE ABOVE LIMITED WARRANTY IS THE ONLY WARRANTY COVERING YOUR MUXLAB PRODUCT. THERE ARE NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW LIMITATIONS ON IMPLIED WARRANTIES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER, YOUR SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT AS PROVIDED FOR ABOVE. IN NO EVENT SHALL MuxLab BE LIABLE TO YOU FOR ANY DAMAGES, INCLUDING ANY LOSS OF PROFITS, LOST SAVINGS, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF MUXLAB OR AN AUTHORISED MuxLab DEALER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES; NOR WILL MUXLAB BE LIABLE FOR ANY CLAIM BY ANY OTHER PARTY. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

Warranty Periods

Any product found to be defective within three (3) months of invoice, including one (1) month shelf life, may be returned for replacement by a new unit or a satisfactory repair within one (1) month of receiving any returned product. The customer must provide MuxLab with the serial number and proof of purchase of the defective unit being returned. All R.M.A.’s issued are subject to inspection by MuxLab, and will be returned to customer if not properly package – units must be returned in original container or equivalent. MuxLab will not accept any such product for repair without an authorization for its Technical Support department and without a return authorization number issued by MuxLab Customer Service department. For credit & replace R.M.A., customer will be liable to pay replacement invoice if defective products are not returned.

Product more than six months old, including shelf life.

The defective unit must be returned prepaid to MuxLab and then the unit will be repaired or if repair is not possible, replaced by an equivalent unit and returned to the customer within one (1) month of receiving any returned product.. There is no charge for repair (parts and labor) during the full warranty period.

Items Defective and not under Warranty

For products which are no longer under warranty the policy is repair and return. An amount of 25% of the products published list price at the time of purchase will be charged. Customer must issue a purchase order to cover the cost of repair. Each unit will be returned to the customer within one (1) month from receipt of the unit by MuxLab. The defective unit must be returned prepaid to MuxLab. The repaired unit will be returned to the customer FOB MuxLab. The repaired unit has a 90 day warranty.

e 21

Pag

MuxLab Inc.

5450 Cote de Liesse, Montreal

Quebec, Canada, H4P 1A5

Tel.: +1 (514) 905-0588 Fax: +1 (514) 905-0589

Toll Free (North America): 877 689-5228

URL: www.muxlab.com

E-mail: videoease@muxlab.com

e 22
