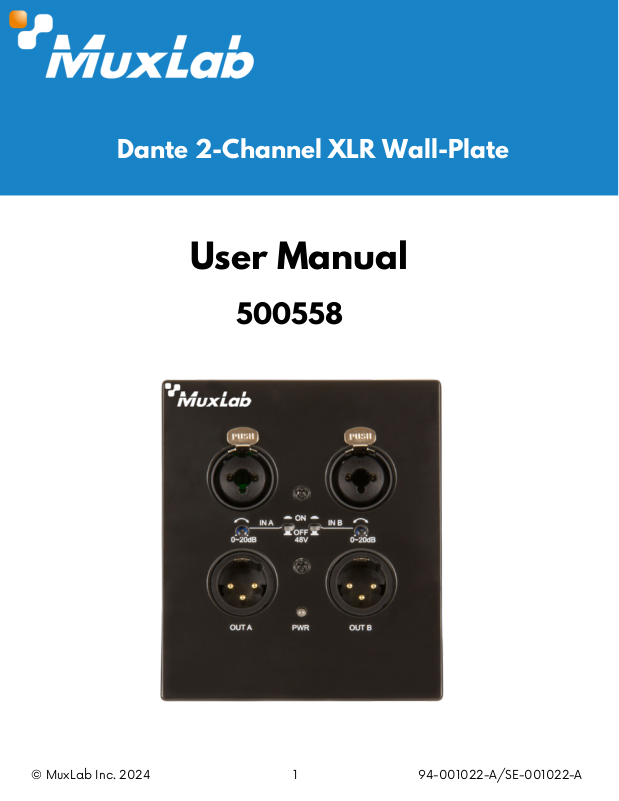

Page 1
Dante 2-Channel XLR Wall-Plate
User Manual
500558
© MuxLab Inc. 2024 1 94-001022-A/SE-001022-A
Page 2
Dante 2-Channel XLR Wall-Plate
Table of Contents
1. Safety Precautions....................................................................................................................................................3
2. Introduction................................................................................................................................................................4
3. Features.......................................................................................................................................................................4
4. Package Contents...................................................................................................................................................4
5. Specifications............................................................................................................................................................5
6. Installation..................................................................................................................................................................5
7. Operation and Control Functions......................................................................................................................6
8. Application Diagram..............................................................................................................................................7
© MuxLab Inc. 2024 2 94-001022-A/SE-001022-A
Page 3
1. Safety Precautions
To ensure the best performance from the product, please read all instructions carefully before
using the device. Save this manual for future reference.
Follow basic safety precautions to reduce the risk of fire, electrical shock, and injury.
Do not dismantle the housing or modify the module. It may result in electrical shock or
burns.
Do not open or remove the housing of the device as you may be exposed to dangerous
voltage or other hazards.
To prevent fire or shock hazard, do not expose the unit to rain, moisture and do not install
this product near water. Keep the product away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If an
object or liquid falls or spills on the housing, unplug the module immediately.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.
Using supplies or parts not meeting the product specifications may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
Install the device in a place with adequate ventilation to avoid damage caused by
overheat.
Unplug the power when left unused for a long period of time.
Information on disposal of devices: do not burn or mix with general household waste,
please treat them as normal electrical waste.
Copyright Notice
All contents in this manual are copyrighted, and cannot be cloned, copied, or translated
without the express permission of MuxLab Inc. Product specifications and information in this
document are for reference only, and the content may be updated from time to time without
prior notice.
© MuxLab Inc. 2024 3 94-001022-A/SE-001022-A
Dante 2-Channel XLR Wall-Plate
Page 4
3. Features
Interface analog audio equipment to Dante audio equipment
Supports balanced 2ch XLR analog audio input and 2ch XLR analog output.
Audio sampling rate supports 48kHz (24bit)
Analog input with phantom power supply switch and gain manual adjustment knob.
Power supply and audio transmission integrated in one cable
Designed to be compatible with standard double gang US electrical wall boxes.
Shows the connection status through LED indicator light
Supports AES67 RTP audio transport
Supports PoE (IEEE802.3af)
2. Introduction
The Dante 2-Channel XLR Wall-Plate (Model 500558) permits non-Dante compatible analog
audio equipment to interface with Dante compatible professional audio equipment. The unit
allows the transmission of full-range (20Hz to 20KHz) balanced two channel analog audio
signals on XLR over the network to Dante equipment. It is powered using the PoE from any PoE
network switch. The Dante 2 channel XLR Wall-Plate is designed to be compatible with
standard double gang US wall boxes.
4. Package Contents
One (1) Dante 2-channel XLR Wall-Plate
One (1) Standard type 120 wall box
One (1) Screwdriver
One (1) User manual (available via download)
Notes：Confirm that the product and accessories are all included. If not, please contact the
supplier from which you purchased the unit.
© MuxLab Inc. 2024 4 94-001022-A/SE-001022-A
Dante 2-Channel XLR Wall-Plate
Page 5
XLR Input
Dante interface
Frequency response
Floor noise
THD + N
Operating temperature
Sampling rate
Dimensions (LxWxH)
Power consumption
Channel Isolation
5. Specifications
Balance 20K Ohm
Balance 100 Ohm
RJ45 interface, with PoE
20Hz-20kHz
48kHz 24bit
<0.005% @4dBu
Specification
0℃ ~ +40℃
-90dB
100dB @ 1kHz
123.5mm × 79mm × 35mm
2W
156g
Form Factor
2 Gang US
Warranty
Order Information
2 years
500558 Dante 2-Channel XLR Wall-Plate (UPC: 627699005583)
XLR Output
Net Weight
6. Installation
Dimensions
© MuxLab Inc. 2024 5 94-001022-A/SE-001022-A
Behind Side
Dante 2-Channel XLR Wall-Plate
Page 6
7. Operation and Control Functions
© MuxLab Inc. 2024 6 94-001022-A/SE-001022-A
Suggestion: We recommend that you use the standard type 120 wall box we provide for your
installation.
Insert the wall box into the wall, then use the screwdriver to remove the two screws in the
middle of the panel, and take the down panel.
1.
Connect the Ethernet cable, insert the main unit into the wall box and screw.2.
Place the cover panel and tighten the screws.3.
Power on the unit, the PWR indicator indicates the power supply status.1.
Download Dante Controller routing control software for input and output channel routing
configuration. Other management software that supports Dante matrix mixing can also be
configured.
2.
The front face of the panel is shown below.3.
4. The phantom switch uses a hidden self locking button switch. When the switch is pressed, the
button lights up, the Phantom power is turned on, otherwise the light goes out, and the Phantom
power is closed.
The gain adjustment knob is hidden in the adjustment hole, and the input gain value of the
corresponding channel is adjusted with a screwdriver. The gain range: 0~20dB.
Dante 2-Channel XLR Wall-Plate
Page 7
Dante 2-Channel XLR Wall-Plate
Follow us:
2321 Cohen | St-Laurent , H4R 2N7 | Québec, Canada Tel: 514-905-0588 | Fax:
514-905-0589 | Toll free: 1-877-689-5228 info@muxlab.com |
salesteam@muxlab.com | www.muxlab.com
8. Application Diagram
Dante 2-Channel XLR Wall-Plate
