Muxlab IR Emitter User Manual

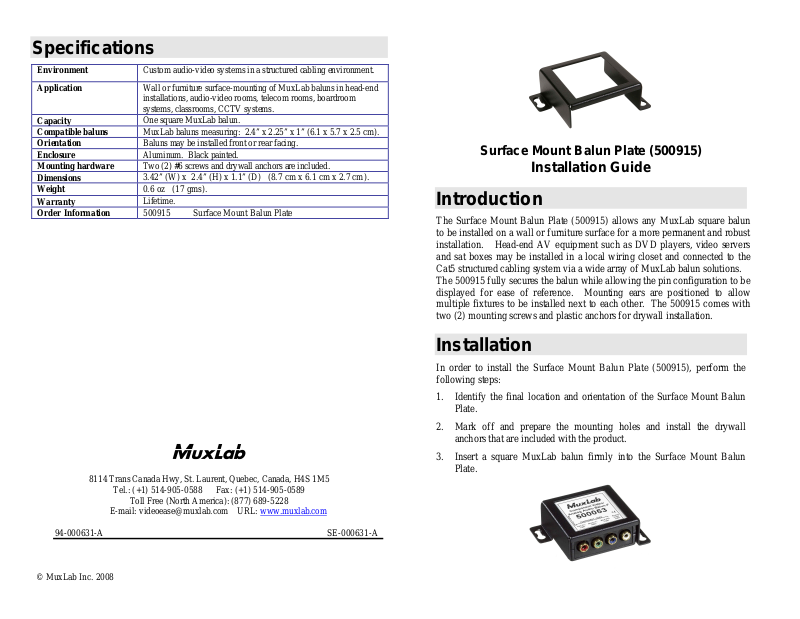

Specifications

Environment
Application

Capacity
Compatible baluns
Orientation
Enclosure
Mounting hardware
Dimensions
Weight

Warranty
Order Information

Custom audio-video systems in a structured cabling environment.
Wall or furniture surface-mounting of MuxLab baluns in head-end

installations, audio-video rooms, telecom rooms, boardroom
systems, classrooms, CCTV systems.
One square MuxLab balun.
MuxLab baluns measuring: 2.4” x 2.25” x 1” (6.1 x 5.7 x 2.5 cm).
Baluns may be installed front or rear facing.
Aluminum. Black painted.
Two (2) #6 screws and drywall anchors are included.

3.42” (W) x 2.4” (H) x 1.1” (D) (8.7 cm x 6.1 cm x 2.7 cm).

0.6 oz (17 gms).
Lifetime.

500915 Surface Mount Balun Plate

Surface Mount Balun Plate (500915)

Installation Guide

Introduction

The Surface Mount Balun Plate (500915) allows any MuxLab square balun
to be installed on a wall or furniture surface for a more permanent and robust
installation. Head-end AV equipment such as DVD players, video servers
and sat boxes may be installed in a local wiring closet and connected to the
Cat5 structured cabling system via a wide array of MuxLab balun solutions.
The 500915 fully secures the balun while allowing the pin configuration to be
displayed for ease of reference. Mounting ears are positioned to allow
multiple fixtures to be installed next to each other. The 500915 comes with
two (2) mounting screws and plastic anchors for drywall installation.

Installation

In order to install the Surface Mount Balun Plate (500915), perform the
following steps:

1. Identify the final location and orientation of the Surface Mount Balun

Plate.

2. Mark off and prepare the mounting holes and install the drywall

anchors that are included with the product.

8114 Trans Canada Hwy, St. Laurent, Quebec, Canada, H4S 1M5

Tel.: [phone] Fax: [phone]

Toll Free (North America): [phone]

E-mail: [e-mail] URL: www.muxlab.com

94-000631-A SE-000631-A

© MuxLab Inc. 2008

3. Insert a square MuxLab balun firmly into the Surface Mount Balun

Plate.

4. Mount the complete assembly to the furniture or wall surface using the

3.42" (8.7cm)

mounting screws included with the product.

Technical Drawings

The following drawings provide the basic dimensions.

.3"

(.76 cm)

.65"

(1.65 cm)

3.42" (8.7cm)

5. Before tightening the screws, adjust the final alignment of the balun

assembly.

6. The following diagram shows a typical application.

2.4" (6.1cm)

.2"

(.51 cm)

1.07" (2.72cm)

© MuxLab Inc. 2008
