Muxlab HDMI IR Receiver with Source Control User Manual

@
Specifications
Environment
Devices
Transmission Bandwidth Signals Connectors
Maximum Distance
Based on a maximum length of 6.6 ft (2 m) of HDMI cable per end.
RJ45 Pin Configuration
Reverse Polarity
Sensitive. Use EIA/TIA 568A or 586B straight-through wiring.
Cable IR Remote for matrix and source control
Power Supply Power Consumption Temperature
Enclosure Dimensions Weight Compliance Warranty Order Information
HDMI 1.3a DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting
HDMI. Transparent to the user 225 MHz HDMI 1.3a protocol One (1) HDMI receptacle. Two (2) RJ45S for Cat 5e/6 unshielded or shielded twisted pair. One (1) 3.5 mm stereo jack for IR Sensor
Note: HDMI cables not included.
480i/p: Cat 5e: 300 ft (91 m) Cat 6: 300 ft (91 m) 720p, 1080i: Cat 5e: 300 ft (91 m) Cat 6: 300 ft (91 m) 1080p: Cat 5e: 150 ft (46 m) Cat 6: 200 ft (61 m) 1080p Deep Color: Cat 5e: 90 ft (27 m) Cat 6: 150 ft (46 m)
Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.
RJ45 A (HDMI A)
Pin 1 (R) Pin 2 (T) Pin 3 (R) Pin 6 (T) Pin 4 (R) Pin 5 (T) Pin 7 (R) Pin 8 (T)
RJ45 B (HDMI B)
Pin 1 (R) Pin 2 (T) Pin 3 (R) Pin 6 (T) Pin 4 (R) Pin 5 (T) Pin 7 (R) Pin 8 (T) Two (2) Cat 5e/6 or better twisted pair cables required Pushbutton, built-in IR sensor External IR sensor included Wireless handheld remote ncluded One (1) 110-240V/12VDC power supplies with interchangeable blades
3.6 Watt Operating: 0° to 40°C Storage: -20° to 85°C Humidity: Up to 95% non-condensing Fire retardant plastic
4.50” x 3.00” x 1.25” (11.4 x 7.6 x 3.2 cm)
1.0 lb (0.45 kg) Regulatory: FCC, CE, RoHS Flammability: 94V0 2 years 500417 HDMI IR/Receiver with Source Control
HDMI IR/Extender with Source Control
500417

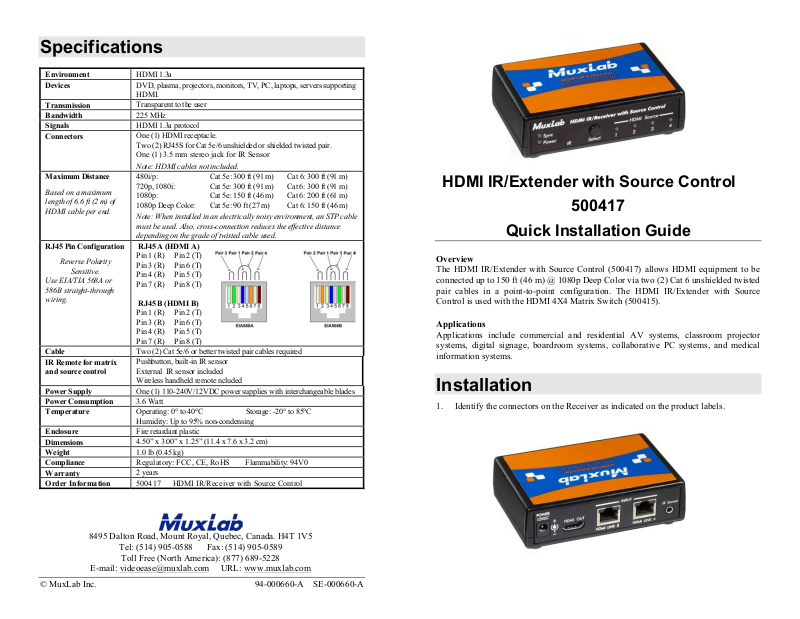

Quick Installation Guide
Overview
The HDMI IR/Extender with Source Control (500417) allows HDMI equipment to be connected up to 150 ft (46 m) @ 1080p Deep Color via two (2) Cat 6 unshielded twisted pair cables in a point-to-point configuration. The HDMI IR/Extender with Source Control is used with the HDMI 4X4 Matrix Switch (500415).
Applications
Applications include commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, and medical information systems.
Installation
1. Identify the connectors on the Receiver as indicated on the product labels.
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588 Fax: (514) 905-0589
Toll Free (North America): (877) 689-5228
E-mail: videoease
muxlab.com URL: www.muxlab.co
© MuxLab Inc. 94-000660-A SE-000660-A
2. Verify that the distance between the HDMI Receiver and the HDMI Matrix is within MuxLab specifications (see Specifications table).
3. To install the Receiver:
3a. Connect the Receiver to the HDMI display equipment with an HDMI compliant
cable.
3b. Connect the two (2) Cat 5e/6 cables to HDMI LINK A and HDMI LINK B
connectors on the Receiver.
Note: Verify that the cables are connected straight-through (i.e., HDMI LINK A to
HDMI LINK A and HDMI LINK B to HDMI LINK B) and not inverted.
4. Connect the 12 VDC power supply to the Receiver first, and then plug the power supply into an AC power outlet. If power is present, the green power LED of the Receiver will be ON.
Note: Power the HDMI IR/Extender Balun only after all connections are made.
5. Power the HDMI equipment and verify the image quality.
6. If infrared remote sensor is needed, connect the IR Sensor to the 3.5mm Stereo Jack of the receiver.
Note: The external sensor will disable the internal sensor of the product when
connected.
7. Position the IR Sensor so that it is directed to the hand-held remote control. For a clear IR signal reception, aim the hand-held remote control at the top of the IR Sensor enclosure.
8. The push button may also be used to manually select one of the four sources; one of the four LEDs will light up to indicate which source has been selected.
9. The user can control the HDMI Matrix and the source using the internal or external IR Sensor of the receiver.
10. The following diagram shows the final configuration.
Troubleshooting
The following table describes some of the symptoms, probable causes and possible solutions in respect to the installation of the HDMI IR/Extender with Source Control:
Symptom
No Image OFF OFF OFF OFF No power • Check power
No Image OFF OFF ON OFF Source not
No Image ON OFF ON OFF Cable • Check the UTP cables
No Image ON ON ON OFF Synchronization • Check cable length.
Flickering Image ON ON ON ON Synchronization • Check cable length Choppy sound ON ON ON ON Synchronization • Check cable length Green or pink hue ON ON ON ON DDC
Image flickers when powering up nearby equipment IR not functioning ON ON ON ON Remote control
IR not functioning ON ON ON ON Interference
IR not functioning ON ON ON ON Interference
Tx LED Rx LED
PowerSyncPowerSync
ON ON ON ON Interference • Use STP cables
If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at 877-689-5228 (toll-free in North America) or (+1) 514-905-0588 (International).
Probable
Cause
power on
communication
not directed to the IR Sensor or IR Emitter not directed to the source.
from sunlight, Fluorescent, Neon or Halogen lights
from RF radiation from the TV
Possible
Solutions
connections
• Power on source and check the HDMI cable of the source.
pin-out.
• Verify that the UTP cables are not crossed.
• Check source resolution versus distance.
• Cycle power of the HDMI Extender.
• Check UTP cables and replace.
• Make sure the IR Sensor is directed towards the remote and the IR Emitter to the equipment
• Place the IR equipment away for the interfering light
• Place the IR equipment away for the RF radiation
© MuxLab Inc. 2010
