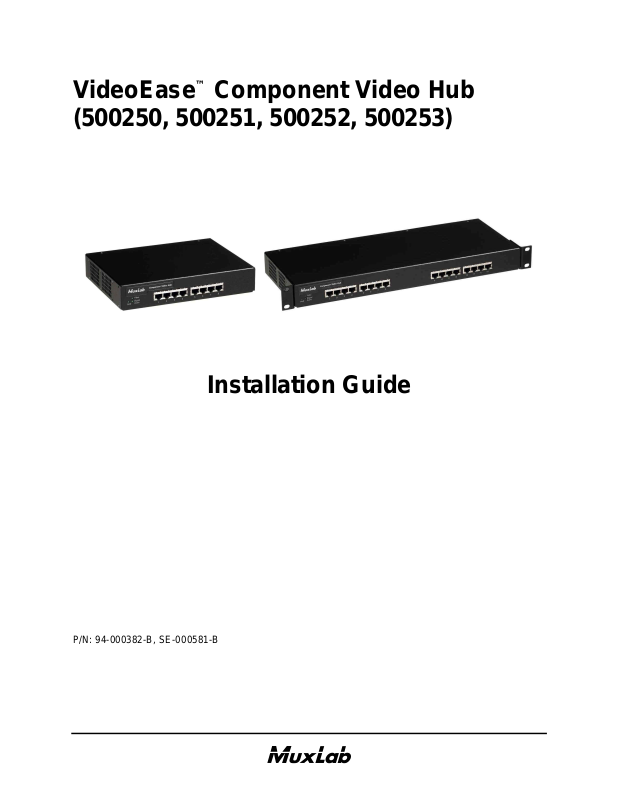

Muxlab Component Video Hub User Manual

VideoEase™ Component Video Hub (500250, 500251, 500252, 500253)

Installation Guide

P/N: 94-000382-B, SE-000581-B

Page

Copyright Notice :

system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise without prior written permission of the author.

Trademarks :

MuxLab and VideoEase are registered trademarks of MuxLab Inc.

2

Page

Table of Contents

1. Overview........................................................................................................................4

1.1. Description........................................................................................................4

1.2. Features.............................................................................................................4

2. Technical Specifications...............................................................................................5

3. Installation Procedure..................................................................................................7

3.1. Parts List...........................................................................................................7

3.2. Product Overview.............................................................................................7

3.3. Pre-Installation Checklist..................................................................................8

3.4. Physical Installation..........................................................................................8

3.5. Installation Procedure.......................................................................................9

3.6. Cascading........................................................................................................13

4. Troubleshooting..........................................................................................................15

5. Product Warranty Policy ...........................................................................................17

3

Page

1.

Overview

1.1. Description

The VideoEase Component Video Hub allows one (1) full component video (YPbPr/RGB) source and one (1) digital or analog audio video source to be distributed up to eight (8) or sixteen (16) destinations depending on the model for more cost-efficient cabling. The 500250 supports up to eight (8) ports. The 500252 supports up to sixteen (16) ports. Applications include; Digital signage, Boardroom systems, Multi-room systems, Classroom training, Retail

systems.

1.2. Features

• Modular RJ45 on input and output

• Cascadable up to two (2) levels with other hubs

• Supports 480i/p up to 1,000 ft (305m) via Cat5

• Supports 720p/1080i/p up to 500 ft (152m) via Cat5

• Supports digital or analog audio on fourth twisted pair

• Configuration switch to support digital audio or analog audio

• Ground loop isolation on every port

• Integrates seamlessly with MuxLab component video baluns

4

Page

2.

Technical Specifications

Environment

Devices

Transmission

3 dB Bandwidth

Insertion Loss (differential)

Video Return Loss

Common Mode Rejection

Input: balanced. Output: balanced

Crosstalk Immunity

Total Harmonic Distortion

Component baseband video (YPbPr/RGB) and Digital Audio

DVD players, DVR, AV matrix switchers, DLP projectors, plasmas, monitors, home theatre.

Transparent to the user.

Video: DC to 77 MHz. Digital Audio: DC to 52MHz Analog Audio: 20 to 20kHz

Video: -0.8 dB @ 4 MHz

Digital Audio: -1.26 dB @ 4 MHz.

Analog Audio: 1 dB @ 4 MHz.

-23dB @ 4 MHz.

Video: Greater than 40 dB over the frequency range.

Digital Audio: Greater than 31.5 dB over the frequency range

Analog Audio: Greater than 60 dB @ 1 KHz; Greater than 40 dB over the frequency range.

-60 dB @ 4 MHz

Analog Audio: Less than 0.007% @ 1KHz.

Max. Distance via

Cat 5 Twisted Pair (UTP)*

Compatible Baluns

Cascadability

Ground Loop Isolation

Cable – UTP

Component Video (YPbPr):

480i/p: 1,000 ft (305m) *

720p and 1080i: 500 ft (152m) *

Digital Audio: 600 ft (182m) *

Analog Audio: 3.250 ft (990m) *

*Measured between Source (ie;DVD) and Destination (ie;Monitor) with Hub placed anywhere between the source and destination

500000, 500002, 500009, 500020, 5000021, 500050, 500051, 500052, 500053

Up to two (2) levels.

Ground loop isolation on every port.

24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz. Cat 3 or better.

5

Page

Connectors

RJ45 Pin Configuration

Reverse Polarity Sensitive

Configuration Switch

LED Diagnostics

Power Supply

Temperature

Source Input: One (1) RJ45S on rear panel

Looping Output: One (1) RJ45S on rear panel

Distribution Outputs: Eight (8) or sixteen (16) RJ45S on front panel

Red (Pr) : Pins 7 [R] & 8 [T]

Green (Y) : Pins 3 [R] & 6 [T]

Blue (Pb) : Pins 1 [R] & 2 [T]

Audio : Pins 4 [R] & 5 [T]

Sets hub to support digital or analog audio on fourth twisted pair. Factory default: analog audio.

Power (green), Video Sync (green), Digital Audio Sync (green):

External AC: 110V and 220/240V

DC: 12VDC, 1.25A (8-port model) or 2.5A (16-port model).

Operating: 0º to 40º C. Storage:-20º to 85º C. Humidity: up to 95% non-condensing.

Dimensions

Weight

Compliance

Warranty

Order Information

500250/500251: 9.125” x 6.75” x 1.75” (23.18 cm x 17.15 cm x 4.45 cm)

500252/500253: 19” x 6.75” x 1.75” (48.26 cm x 17.15 cm x 4.45 cm)

500250/500251: 3.3 lbs (1.5 kgs)

500252/500253: 5.5 lbs (2.5 kgs)

FCC, CE-EMC Directive 89/336/EEC, RoHS, WEEE

2 years

500250 Component Video Hub, 8 Ports, 110V

500251 Component Video Hub, 8 Ports, 220/240V

500252 Component Video Hub, 16 Ports, 110V

500253 Component Video Hub, 16 Ports, 220/240V

6

Page

7

3.

Installation Procedure

3.1. Parts List

The Component Video Hub comes with the following parts. Please verify that all pieces are present before proceeding.

• Base Unit

• External Power Supply 12VDC/1.25A (500250, 500251) or

12VDC/2.5A (500252, 500253)

• Rubber stand-offs (500250, 500251 only)

• Installation Guide

3.2. Product Overview

The external connections and diagnostics of Component Video Hub are detailed in the following diagrams. Please familiarize yourself with them before installing the unit.

Component Video Hub

Video Digital

Audio

PWR

Figure 1: Component Video Hub 8 Ports (500250, 500251) Front panel

Component Video Hub

Video Digital

Audio

PWR

Figure 2: Component Video Hub 16 Ports (500252, 500253) Front panel

Power 12VDC

1.25A

Analog Digital Audio Audio

Input

RJ45 Pin Configuration

Green (Y) Blue (Pb) Red (Pr) Audio

3 [R] & 6 [T] 1 [R] & 2 [T] 7 [R] & 8 [T] 4 [R] & 5 [T]

Cascade

Output

Figure 3: Component Video Hub Rear panel (all models)

Page

3.3. Pre-Installation Checklist

The Component Video Hub provides a centralized component video distribution center via copper twisted pair cabling.

1. The Component Video Hub is typically installed in a remote telecom room

and is connected to the component video source and display devices via Cat5 twisted pair. MuxLab component video baluns are installed at each component video devices to support the connection to the hub via Cat5 cable.

2. For optimum performance and to support HDTV (720p, 1080i/p)

resolution, the Component Video Hub is used in conjunction with MuxLab’s passive Component Video Baluns (p/ns 500050, 500051, 500052, 500053).

3. The Component Video Hub will also work with third party vendor baluns,

providing the pin configuration and signal polarity are compatible. However, performance specifications may be affected.

3.4. Physical Installation

The Component Video Hub has two models; 8-port desktop (500250, 500251) and 16-port rack-mount (500252, 500253).

1. If the 8-port hub is being installed on a desk, select the final destination for

the product and install the unit on a desk or shelf as shown below.

Figure 5: 8-port desktop installation

2. If the 16-port hub is being installed, select the final destination for the

product and install the unit using standard rack-mount screws.

8

Page

Figure 6: 16-port rack-mount installation

3.5. Installation Procedure

The Component Video Hub is available in 8-port (500250, 500251) and 16-port (500252, 500253) versions. In order to install the product, please follow the steps below:

1. Install the Component Video Hub in its final location by performing steps 1

or 2 listed in the previous section.

2. Ensure that the power is turned off on the component video source and

displays.

3. If audio will be transmitted along with video, set the hub to digital or

analog audio by sliding the switch on the rear panel to the appropriate position as shown in the diagram below. The factory default setting is “analog audio”.

4. In order to distribute component video (YPbPr/RGB) and audio (optional),

one (1) Component Video Balun must be connected at the component video source and at each component video display. To install the baluns, perform the following steps (5, 6 and 7):

5. Identify the pin configuration of the baluns. Three (3) twisted pairs are

required for video and one (1) twisted pair is required for optional digital audio. The pin configuration follows the EIA/TIA 568A/B standard. The Component Video Baluns are reverse polarity sensitive. Please ensure that wiring is straight-through (Ring to Ring, Tip to Tip).

6. Plug one (1) Component Video/Digital Audio Balun (500050, 500051) or

Component Video/Analog Audio Balun (500052, 500053) into the

9

Page

component video coaxial cable output of the video source according to the color code of the RCA cable leads.

7. Connect a Component Video/Digital Audio Balun (500050, 500051) or

Component Video/Analog Audio Balun (500052, 500053) to each component video display.

8. Complete the connection between the component video source and the

Component Video Hub using standard straight-thru Cat5 twisted pair cable and connecting hardware, terminated on RJ45 plugs at both ends. Ensure that there are no split pairs or taps.

9. Complete the connection between the hub and each component video

display using standard straight-thru Cat5 twisted pair cable and connecting hardware, terminated on RJ45 plugs at both ends. Ensure that there are no split pairs or taps.

10. If audio is to be connected (optional), connect an RCA lead between each

Component Video Balun and the audio equipment at both ends.

11. Connect the external 12VDC power supply to the hub and plug the power

supply into an AC power outlet. If power is present, then the green power LED will be ON.

12. Power-on the component video equipment. Check the image quality and

refer to the troubleshooting table below if the image quality is unsatisfactory.

10

Page

13. The following diagrams show a couple of typical configurations.

Figure 4: Typical Configuration – Component Video and Digital Audio

Figure 5: Typical Configuration – Component Video and Digital Audio

11

Page

Figure 6: Typical Configuration – Component Video and Analog Audio

12

Page

3.6. Cascading

In order to drive more displays, the Component Video Hub may be cascaded with another hub. In order to optimize the image quality, it is recommended to cascade up to two (2) levels only as shown in the following diagrams.

Figure 6: Cascading one hub

Figure 7: Cascading Multiple Hubs

13

Page

In order to cascade two hubs together, connect a Cat5 straight-through cable between the Output Port (regular or cascade) of the source hub to the Input Port of the second hub as shown in the following diagram.

Figure 8: Cascade Hub Cabling

14

Page

4.

Troubleshooting

The following tables describe some of the symptoms, probable causes and possible solutions in respect to the installation of the Component Video Hub. If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at 877-689-5228 (toll-free in North America) or (+1) 514-905-0588 (International).

Video Power

LED

No image OFF OFF Power off. Check power supplies of Component

No image ON ON Wrong pin configuration. Check pin configuration and verify

No image ON OFF No continuity in video link. Verify cable continuity between pairs of

No image ON ON Improper connection. Swapped pairs. Check that baluns are connected to

Picture distorted

Wrong colors

Loss of brightness

ON ON EMI interference.

ON ON Reversed polarity. Check wiring and ensure straight-through

ON ON Exceeded distance/bandwidth

Video LED

Probable Causes Possible Solutions

Video equipment.

straight-thru wiring.

baluns.

correct video inputs and outputs.

Check that wiring is not too close to transformers and lighting ballasts.

Split pair.

Check if the UTP pairs are not split.

polarity.

Check DC loop resistance and verify if

specifications.

distance spec is exceeded.

Loss of color

Smearing

Horizontal upward moving bands

ON ON Ground loop problem between one or

Lower grade UTP cable is introducing high losses.

more devices.

Reduce cable length or eliminate highloss components.

Replace cable by higher grade.

Consecutively turn off other video sources to determine which video source is the cause of interference. Install RGB ground loop blockers at the source or displays.

15

Page

Digital Audio Digital

Audio LED

No audio OFF Power off. Check power supplies of the audio

No audio ON Wrong pin configuration. Check pin configuration and verify straight-

No audio ON No continuity in video link. Verify cable continuity between pairs of

No audio ON Improper connection Swapped

Missing channels

Noise, static ON EMI interference. Check that wiring is not too close to

Noise, static ON Distance exceeded or unusual cable

ON Cabling problem between the

Probable Causes Possible Solutions

equipment.

thru wiring.

baluns.

Check that baluns are connected to correct

pairs.

decoder/amp and the audio speakers.

attenuation.

video inputs and outputs.

Check audio speaker cabling.

transformers and ballasts.

Check cable distance and cable grade.

When contacting your nearest MuxLab dealer or MuxLab Technical Support please have the following information ready:

• Unit model number.

• List of tests performed.

• Cabling lay-out. Include model of

component video source and receiver, cable length and type.

• Description of problem.

16

Page

17

5.

Product Warranty Policy

Items under warranty - Company Policy

MuxLab guarantees its products to be free of defects in manufacturing and workmanship for the warranty period from the date of purchase. If this product fails to give satisfactory performance during this warranty period, MuxLab will either repair or replace this product at no additional charge, except as set forth below. Repair and replacement parts will be furnished on an exchange basis and will be either reconditioned or new. All replaced parts and products become the property of MuxLab. This limited warranty does not include repair services for damage to the product resulting from accident, disaster, misuse, abuse, or unauthorized modifications or normal decay of battery driven devices. Batteries if included with the product are not covered under this warranty.

Limited warranty service can be obtained by delivering the product during the warranty period to the authorized MuxLab dealer from whom you purchased the product, or by sending it to MuxLab. MuxLab will not accept any such product for repair without a Return Material Authorization number (RMA#) issued by its Customer Service Department and a proof of purchase date. If this product is delivered to MuxLab by mail, you agree to assume risk of loss or damage in transit, to prepay shipping charges to the warranty service location, and to use the original shipping container or equivalent.

THE ABOVE LIMITED WARRANTY IS THE ONLY WARRANTY COVERING YOUR MUXLAB PRODUCT. THERE ARE NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW LIMITATIONS ON IMPLIED WARRANTIES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER, YOUR SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT AS PROVIDED FOR ABOVE. IN NO EVENT SHALL MuxLab BE LIABLE TO YOU FOR ANY DAMAGES, INCLUDING ANY LOSS OF PROFITS, LOST SAVINGS, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF MUXLAB OR AN AUTHORISED MuxLab DEALER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES; NOR WILL MUXLAB BE LIABLE FOR ANY CLAIM BY ANY OTHER PARTY. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

Warranty Periods

Any product found to be defective within three (3) months of invoice, including one (1) month shelf life, may be returned for replacement by a new unit or a satisfactory repair within one (1) month of receiving any returned product. The customer must provide MuxLab with the serial number and proof of purchase of the defective unit being returned. All R.M.A.’s issued are subject to inspection by MuxLab, and will be returned to customer if not properly package – units must be returned in original container or equivalent. MuxLab will not accept any such product for repair without an authorization for its Technical Support department and without a return authorization number issued by MuxLab Customer Service department. For credit & replace R.M.A., customer will be liable to pay replacement invoice if defective products are not returned.

Product more than six months old, including shelf life.

The defective unit must be returned prepaid to MuxLab and then the unit will be repaired or if repair is not possible, replaced by an equivalent unit and returned to the customer within one (1) month of receiving any returned product. There is no charge for repair (parts and labor) during the full warranty period.

Items Defective and not under Warranty

For products which are no longer under warranty the policy is repair and return. An amount of 25% of the products published list price at the time of purchase will be charged. Customer must issue a purchase order to cover the cost of repair. Each unit will be returned to the customer within one (1) month from receipt of the unit by MuxLab. The defective unit must be returned prepaid to MuxLab. The repaired unit will be returned to the customer FOB MuxLab. The repaired unit has a 90 day warranty.
