Muxlab Active VGA Audio Balun Kit User Manual

Active VGA/Audio Balun Kit

500145 (kit), 500146 (TX), 500147 (RX)

Installation Guide

P/N: 94-000661-A SE-000661-A

Pag

Copyright Notice:

stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without prior written permission of the author.

Trademarks:

MuxLab and VideoEase are registered trademarks of MuxLab Inc.

e 2

Pag

Table of Contents

1. Overview........................................................................4

1.1. Description........................................................4

1.2. Features.............................................................5

2. Technical Specifications...............................................6

3. Installation Procedure..................................................8

3.1. Parts List...........................................................8

3.2. Product Overview.............................................9

3.3. Pre-Installation Checklist ...............................10

3.4. Installation Procedure.....................................11

3.5. Cascadability ..................................................18

4. Troubleshooting..........................................................19

5. Product Warranty Policy...........................................21

e 3

Pag

1.

Overview

1.1. Description

The Active VGA/Audio Balun Kit allows VGA or component video, analog stereo audio and/or digital audio, one IR-emitter signal, and one RS232 signal to be transmitted via a cost-effective unshielded copper twisted cable in a point-to-point configuration.

The product supports remote power pass-thru and is DDC compliant with all “plug-and-play” laptops, PCs and displays. The product supports up to 1920 x 1200 pixels and 1080p resolution, and features manual gain adjustment and local monitor output for added versatility.

The product supports simultaneous stereo audio and digital audio transmission. The product provides IRemitter pass-through connectivity, supports up to 1080p resolution, and features manual brightness and sharpness adjustments.

The product converts the VGA signal from an unbalanced to balanced signal, and amplifies and equalizes the signal at the receiving end. It provides excellent image quality and minimizes distortions due to smearing, propagation delay, and phase deviation. The transmitter and receiver are shown on page 9.

Applications include digital signage, residential, boardroom, classroom, and home theater video systems.

e 4

Pag

1.2. Features

 Up to 500 ft (152 m) via Cat 5e/6 @ 720p/1080i and

1080p

 Up to 1,000 ft (305 m) via Cat 5e/6 @ 480i/p  Supports stereo audio or digital audio  Supports IR-Emitter and Sensor or RS-232

communication

 Manual brightness compensation  Manual sharpness compensation  Manual skew compensation

e 5

Pag

2.

Technical Specifications

Environment

Devices Transmission Bandwidth Input Impedance Output Impedance Connectors: Transmitter

Connectors: Receiver

Maximum Distance: VGA via Cat 5e/6 UTP Cable (or better)

Maximum Distance: Audio via Cat 5e/6 UTP Cable (or better) RJ45 Pin Configuration Reverse Polarity Sensitive

Use EIA/TIA 568A or 568B straight-through wiring

Brightness Adjustment

Sharpness Adjustment

Skew Adjustment

LED Indicators

Cable Power Supplies

Temperature

Enclosure Dimensions Weight Regulatory Warranty Order Information

VGA, VESA VP&D 1.0, VIP ver 2.0. DDC1 and DDC2 with Analog Stereo and/or Digital Audio, IR-Emitter Pass-Through, and RS232 control PCs, laptops, CRT monitors, LCD monitors, plasma screens, DLP projectors Transparent to the user Up to 220 MHz (1920 x 1200 resolution), 1080p DB15HD: 75 ohms Stereo Audio: 2.2 Kohms Cat 5e/6: 100 ohms VGA/Component Input (PC): DB15HD-F VGA/Component Output (Local Monitor): DB15HD-F Stereo Audio Input and output: 2 x 3.5mm jack Digital Audio Input: female RCA IR-Emitter: 3.5mm Mono jack RS232: DB9 Transmitter Output (Cat 5e/6): RJ45 shielded Receiver Input (Cat 5e/6): RJ45 shielded VGA/Component Output (PC): DB15HD-F Stereo Audio output: 3.5mm jack Digital Audio output: female RCA IR-Sensor: 3.5mm Stereo jack RS232: DB9 640 x 480 (VGA): 1,000 ft (305 m) 800 x 600 (SVGA): 1,000 ft (305 m) 1024 x 768 (XGA): 1,000 ft (305 m) 1280 x 1024 (SXGA): 850 ft (260 m) Analog Stereo Audio: 1,000 ft (305 m) Digital Audio: 1,000 ft (305 m)

Green (Y): Pin 4 (R) Pin 5 (T) Blue (Pb): Pin 1 (R) Pin 2 (T) Red (Pr): Pin 7 (R) Pin 8 (T) IR-Emitter, IR-Sensor,

RS-232: Pin 3 (R) Pin 6 (T) Brightness control via rotary switch on the receiver (Factory default setting: “None”) Sharpness control via potentiometer on the receiver (Factory default setting: Completely rotated counterclockwise) Skew control via 3 potentiometers (R, G, B) on the receiver (Factory default setting: Completely rotated counterclockwise) Tx Balun: Power: One (1) green LED Sync: One (1) green LED Rx Balun: Power: One (1) green LED Cat 5e/6 unshielded twisted pair (or better) 110-240V/12VDC/0.5A, 12VDC power jacks Removable AC blades included for North America, Continental Europe & UK Operating: 0°C to 40°C Storage: -10°C to 70°C Humidity: Up to 95% non-condensing Black. ABS fire retardant plastic

6.00” x 4.25” x 1.50” (15.3 cm x 10.8 cm x 3.8 cm) 2 lbs (0.9 kg) FCC/CE, RoHS Two (2) years 500145: Active VGA/Audio Balun Kit 500146: Active VGA/Audio Balun, TX, incl PSU 500147 Active VGA/Audio Balun, RX, incl PSU

1600 x 1200 (UXGA): 800 ft (245 m) 1366 x 768 (WXGA): 850 ft (260 m) 1680x1050 (WSXGA): 850 ft (260 m) 1920 x 1200 (WUXGA): 600 ft (180 m)

e 6

Pag

IR Sensor Configuration

IR Emitter Configuration

IR Sensor Specifications (500999)

IR Emitter Specifications (500998)

Tip: Data Ring 1: +12 VDC Ring 2: GND

Tip: Data Ring: GND

IR Wavelength: 940 nm Carrier frequency: 38 KHz Receiving Distance: 15 m Power requirements: 12 VDC @ 2 mA IR Wavelength: 940 nm

Data

Tip

Ring 2

Tip

Ring

GND

Ring 1 +12VDC

e 7

Pag

3.

Installation Procedure

3.1. Parts List

The Active VGA/Audio Balun Kit (500145) comes with the following parts:

 Transmitter  Receiver  Two (2) External Power Supplies (12 VDC, 0.5 A)  Blades for North America, Continental Europe & UK  Installation Guide

Please verify that all pieces are present before proceeding.

VGA & audio jumper cables and Cat 5e/6 cable are not included.

RS232 DB9 to DB9 cable are not included. IR Sensor (P/N 500999) and IR Emitter (P/N 500998)

are not included and can be ordered separately.

e 8

Pag

3.2. Product Overview

The external connections and diagnostic indicators of the Active VGA/Audio Balun are described on the following pages. Please familiarize yourself with them before proceeding with the installation.

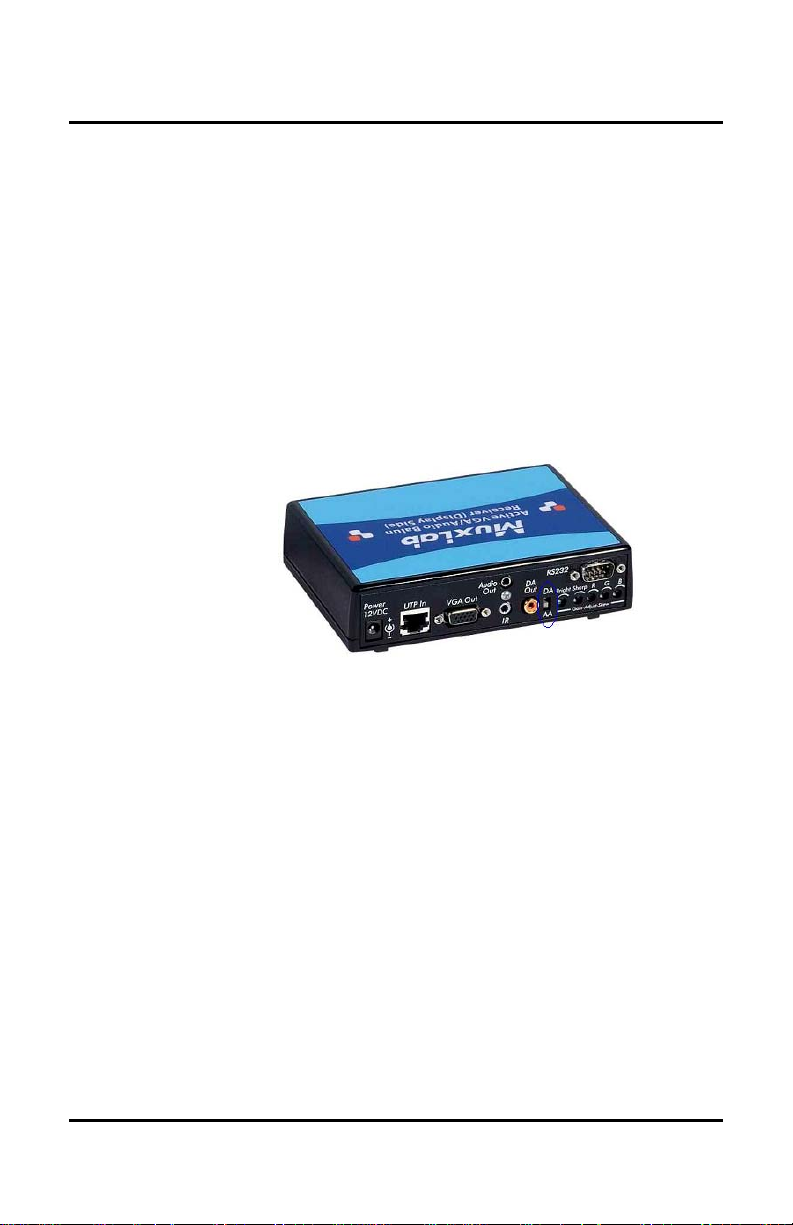

Figure 1: Transmitter and Receiver

e 9

Pag

3.3. Pre-Installation Checklist

There are two (2) components that must be verified before installation can begin: The transmitter and the receiver.

1. The transmitter is connected to the VGA video

source, usually a PC or Laptop computer, via VGA video & audio cables (not included).

2. The transmitter is connected to the receiver by a Cat

5e/6 (or higher) unshielded twisted pair cable (not included).

3. The receiver is connected to the display equipment,

usually a projector or screen, via VGA video & audio cables (not included).

4. Verify that the desired image resolution is within the

specifications of the Active VGA/Audio Balun Kit.

e 10

Pag

3.4. Installation Procedure

Verify that the distance between the Active VGA/Audio Balun transmitter and receiver are within MuxLab specifications (see Technical Specifications). In order to install the transmitter, please follow the steps below:

1. Connect the transmitter to the audio-video source

with the appropriate VGA video & audio cables.

2. If the Analog Audio (AA) interface is used (Stereo

3.5 mm), toggle the Audio switch to the “AA” position. If the Digital Audio (DA) interface is used (RCA), toggle the Audio switch to the “DA” position.

Figure 2: Position of the Audio Switch on the Transmitter

3. (Optional) Connect an infrared transmitter to the

3.5 mm connector.

4. (Optional) Connect the RS232 to the control source

with the appropriate DB9 to DB9 cables. Note: If the infrared 3.5 mm connector is plugged, the RS232 interface is disabled.

e 11

Pag

5. Connect a length of Cat 5e/6 (or higher) UTP cable

to the transmitter. Ensure that the wiring is in accordance with EIA-568A or EIA-568B standards and is straight-through.

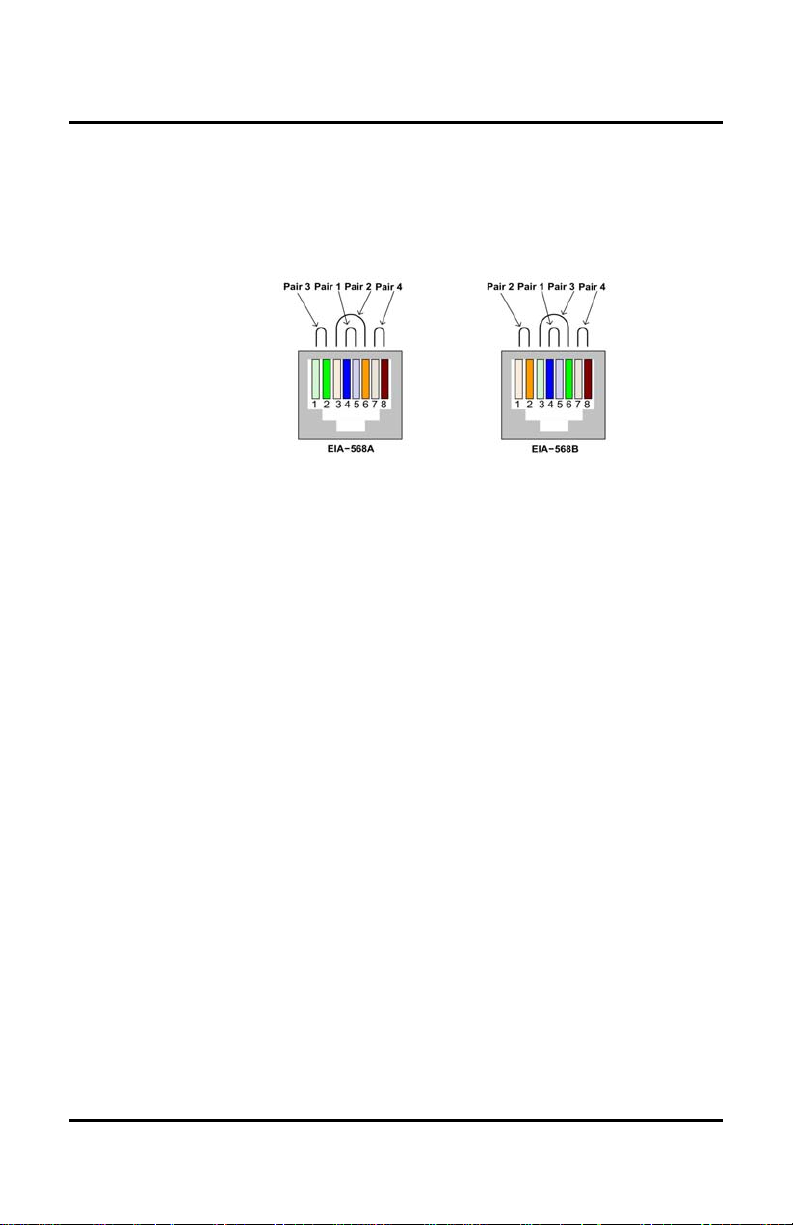

Figure 3: Wiring Configuration

6. Connect the 12 VDC power supply to the

transmitter.

7. Plug the power supply into an AC power outlet. If

power is present, the green power LED will be ON.

e 12

Pag

To install the receiver, please follow the steps below:

8. Connect the Active VGA/Audio Balun receiver to

the display equipment with the appropriate VGA video & audio cables.

9. If the Analog Audio (AA) interface is used (Stereo

3.5 mm), toggle the Audio switch to the “AA” position. If the Digital Audio (DA) interface is used (RCA), toggle the Audio switch to the “DA” position.

Figure 4: Position of the Audio Switch on the receiver

10. (Optional) Connect an infrared receiver to the 3.5

mm connector.

11. (Optional) Connect the RS232 to the equipment with

the appropriate DB9 to DB9 cables. Note: If the infrared 3.5 mm connector is plugged, the RS232 interface is disabled. Set the RS232 interface as follows:

BAUD Rate: 9600 Data bits: 8 Stop bits: 1 Parity: None Flow control: Hardware

e 13

Pag

12. Connect the UTP cable to the Video IN/UTP

connector of the receiver.

13. Connect the second 12 VDC power supply to the

receiver.

14. Plug the power supply into an AC power outlet. If

power is present, the green power LED will be ON.

15. The brightness rotary switch adjusts the luminance

level to compensate for low frequency signal loss due to the Cat 5e/6 cable.

16. The sharpness potentiometer adjusts the equalization

to compensate for high frequency signal loss due to the Cat 5e/6 cable.

17. The skew (R G B potentiometers) adjust the delay

between the red, green, and blue colors to compensate for the delay differences due to the Cat 5e/6 cable.

18. To adjust the picture quality, rotate the brightness

rotary switch and/or sharpness and/or skew potentiometers on the rear panel of the Active VGA/Audio Balun receiver. The factory default position for the brightness (“Bright”) is “None,” and the factory default position for the sharpness (“Sharp”) and skew (R G B) is zero (rotated completely counterclockwise).

Figure 5: Brightness and Sharpness Adjustment

e 14

Pag

19. The following table provides suggested rotary

switch settings for adjusting picture brightness.

Brightness Setting Actual Gain

Less -25%

None 0%

Medium 25%

High 50%

Table 1: Rotary Switch Settings for Brightness

Adjustment

20. To adjust picture sharpness, begin with the

sharpness potentiometer (“Sharp”) rotated completely counterclockwise, and slowly rotate it in the clockwise direction until picture details become clear.

Note: For display equipment with automatic brightness control (for example, certain models of projectors), complete all installation procedures and ensure that the brightness rotary switch (“Bright”) is set to “None” and the sharpness potentiometer (“Sharp”) is rotated completely counterclockwise before turning the display equipment on. Otherwise, the display could override the brightness adjustment feature of the Active VGA/Audio Balun Kit.

e 15

Pag

21. After sharpness and brightness have been adjusted,

adjust the skew in order to align the red green and blue bars. To do this, open the electronic version of this manual and look at the skew correction pattern on the screen (see Figure 6). The R G B potentiometers adjust the red, green and blue colors horizontally. Using the potentiometer, move the three colored lines so they align perfectly. To move a color to the right of the screen, turn the corresponding potentiometer clockwise.

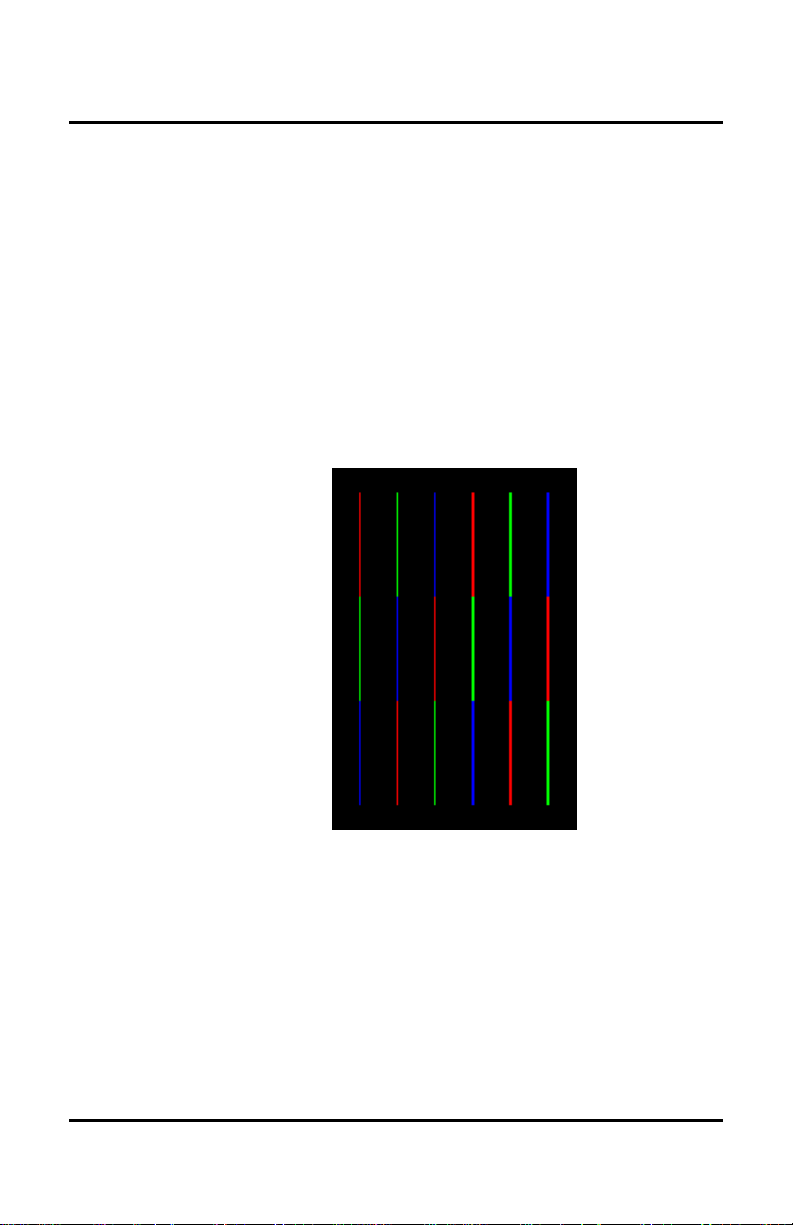

Figure 6: Pattern for Skew Correction

e 16

Pag

22. Shown below are three typical configurations.

Figure 7: Typical Configurations

e 17

Pag

3.5. Cascadability

In order to distribute one (1) VGA/Audio source to more than one (1) display, up to three (3) transmitters may be cascaded via the Local Monitor port, as shown in the following diagram:

Figure 8: Cascading Illustration

e 18

Pag

c

4.

Troubleshooting

The following table describes some of the problem symptoms, the probable causes and possible solutions. If the information below does not solve the problem, the technical support contact information can be found at the end of this section.

Problem LED (Tx)

No Image No Sound

No Data

No Image OFF OFF ON No power at Transmitter •Check power connections No Image ON --- OFF No power at receiver •Check power connections No Image ON OFF ON Source not present or

No Image ON ON ON Cat 5e/6 cable •Check continuity

Smearing ON ON ON Cable length exceeded • Reduce cable length

Ghosting ON ON ON Impedance mismatch • Check cabling

Wrong Colors

Loss of

No Sound

(Analog

Audio)

No Sound

(Digital Audio)

No RS-

Power Syn

OFF OFF OFF No power •Check power connections

No IR

ON ON ON Swapped pairs • Check wiring

Detail Shaky Image

Bad

Sound

232

No IR ON --- ON Wrong pin-out •Check IR connection

ON ON ON Cable length exceeded •Reduce cable length

ON ON ON Too much gain •Reduce cable length

ON --- ON No connection or not

ON --- ON Cable length exceeded •Reduce cable length

ON --- ON IR sensor or emitter

LED (Rx)

Power

Probable Cause Possible Solutions

cable problem

selected

connected

•Check VGA cable

•Check correct wiring

•Adjust Brightness, Sharpness & Skew

•Try different source or display

•Adjust Sharpness & Skew

•Adjust Brightness & Sharpness

•Check continuity

•Check correct wiring

•Position selection switch (DA/AA) on position AA on transmitter & receiver.

•Check continuity

•Check correct wiring

•Position selection switch (DA/AA) on position DA on transmitter & receiver.

•Unplug the IR connectors

e 19

Pag

When contacting your nearest MuxLab dealer or MuxLab Technical Support, please have the following information ready:

 Unit model number.  Cabling layout. Include model of PC and display used, cable

length and type.

 Description of problem.  List of tests performed.

e 20

Pag

5.

Product Warranty Policy

Items Under Warranty - Company Policy

MuxLab guarantees its products to be free of defects in manufacturing and workmanship for the warranty period from the date of purchase. If this product fails to give satisfactory performance during this warranty period, MuxLab will either repair or replace this product at no additional charge, except as set forth below. Repair and replacement parts will be furnished on an exchange basis and will be either reconditioned or new. All replaced parts and products become the property of MuxLab. This limited warranty does not include repair services for damage to the product resulting from accident, disaster, misuse, abuse, or unauthorized modifications or normal decay of battery driven devices. Batteries, if included with the product, are not covered under this warranty.

Limited warranty service can be obtained by delivering the product during the warranty period to the authorized MuxLab dealer from whom you purchased the product, or by sending it to MuxLab. MuxLab will not accept any such product for repair without a Return Material Authorization number (RMA#) issued by its Customer Service Department and a proof of purchase date. If this product is delivered to MuxLab by mail, you agree to assume risk of loss or damage in transit, to prepay shipping charges to the warranty service location, and to use the original shipping container or equivalent.

THE ABOVE LIMITED WARRANTY IS THE ONLY WARRANTY COVERING YOUR MUXLAB PRODUCT. THERE ARE NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW LIMITATIONS ON IMPLIED WARRANTIES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER, YOUR SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT AS PROVIDED FOR ABOVE. IN NO EVENT SHALL MuxLab BE LIABLE TO YOU FOR ANY DAMAGES, INCLUDING ANY LOSS OF PROFITS, LOST SAVINGS, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF MUXLAB OR AN AUTHORISED MuxLab DEALER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES; NOR WILL MUXLAB BE LIABLE FOR ANY CLAIM BY ANY OTHER PARTY. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

e 21

Pag

Warranty Periods

Any product found to be defective within three (3) months of invoice, including one (1) month shelf life, may be returned for replacement by a new unit or a satisfactory repair within one (1) month of receiving any returned product. The customer must provide MuxLab with the serial number and proof of purchase of the defective unit being returned. All R.M.A.’s issued are subject to inspection by MuxLab, and will be returned to customer if not properly package – units must be returned in original container or equivalent. MuxLab will not accept any such product for repair without an authorization for its Technical Support department and without a return authorization number issued by MuxLab Customer Service department. For credit & replace R.M.A., customer will be liable to pay replacement invoice if defective products are not returned.

Product more than six months old, including shelf life.

The defective unit must be returned prepaid to MuxLab and then the unit will be repaired or if repair is not possible, replaced by an equivalent unit and returned to the customer within one (1) month of receiving any returned product. There is no charge for repair (parts and labor) during the full warranty period.

Items Defective and not under Warranty

For products which are no longer under warranty the policy is repair and return. An amount of 25% of the products published list price at the time of purchase will be charged. Customer must issue a purchase order to cover the cost of repair. Each unit will be returned to the customer within one (1) month from receipt of the unit by MuxLab. The defective unit must be returned prepaid to MuxLab. The repaired unit will be returned to the customer FOB MuxLab. The repaired unit has a 90 day warranty.

e 22

Pag

e 23

Pag

MuxLab Inc.

8495 Dalton, Montreal, Quebec

H4T 1V5 Canada

Tel.: +1 (514) 905-0588 Fax: +1 (514) 905-0589

Toll Free (North America): 877 689-5228

URL: www.muxlab.com

E-mail: videoease@muxlab.com
