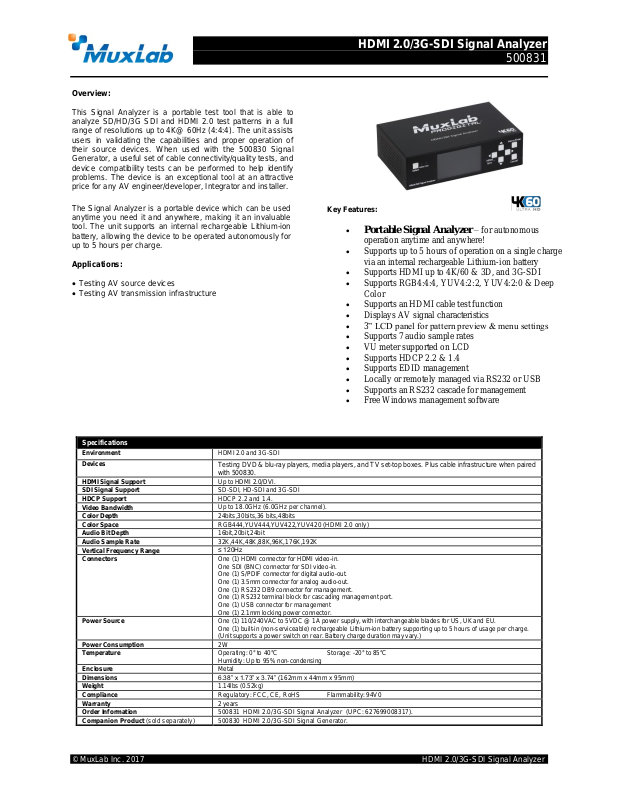

MuxLab 500831 Specifications
HDMI 2.0/3G-SDI Signal Analyzer
Specifications
Environment
HDMI 2.0 and 3G-SDI
Devices
Testing DVD & blu-ray players, media players, and TV set-top boxes. Plus cable infrastructure when paired
with 500830.
HDMI Signal Support
Up to HDMI 2.0/DVI.
SDI Signal Support
SD-SDI, HD-SDI and 3G-SDI
HDCP Support
HDCP 2.2 and 1.4.
Video Bandwidth
Up to 18.0GHz (6.0GHz per channel).
Color Depth
24bits,30bits,36 bits,48bits
Color Space
RGB444,YUV444,YUV422,YUV420 (HDMI 2.0 only)
Audio Bit Depth
16bit,20bit,24bit
Audio Sample Rate
32K,44K,48K,88K,96K,176K,192K
Vertical Frequency Range
≤ 120Hz
Connectors
One (1) HDMI connector for HDMI video-in.
One SDI (BNC) connector for SDI video-in.
One (1) S/PDIF connector for digital audio-out.
One (1) 3.5mm connector for analog audio-out.
One (1) RS232 DB9 connector for management.
One (1) RS232 terminal block for cascading management port.
One (1) USB connector for management
One (1) 2.1mm locking power connector.
Power Source
One (1) 110/240VAC to 5VDC @ 1A power supply, with interchan geable blades for US, UK and EU.
One (1) built-in (non-serviceable) rechargeable Lithium-ion battery supporting up to 5 hours of usage per charge.
(Unit supports a power switch on rear. Battery charge duration may vary.)
Power Consumption
2W
Temperature
Operating: 0° to 40°C Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Enclosure
Metal
Dimensions
6.38” x 1.73” x 3.74” (162mm x 44mm x 95mm)
Weight
1.14lbs (0.52kg)
Compliance
Regulatory: FCC, CE, RoHS Flammability: 94V0
Warranty
2 years
Order Information
500831 HDMI 2.0/3G-SDI Signal Analyzer (UPC: 627699008317).
Companion Product (sold separately)
500830 HDMI 2.0/3G-SDI Signal Generator.
500831
Overview:
This Signal Analyzer is a portable test tool that is able to
analyze SD/HD/3G SDI and HDMI 2.0 test patterns in a full
range of resolutions up to 4K@ 60Hz (4:4:4). The unit assists
users in validating the capabilities and proper operation of
their source devices. When used with the 500830 Signal
Generator, a useful set of cable connectivity/quality tests, and
device compatibility tests can be performed to help identify
problems. The device is an exceptional tool at an attractive
price for any AV engineer/developer, Integrator and installer.
The Signal Analyzer is a portable device which can be used
anytime you need it and anywhere, making it an invaluable
tool. The unit supports an internal rechargeable Lithium-ion
battery, allowing the device to be operated autonomously for
up to 5 hours per charge.
Applications:
Testing AV source devices
Testing AV transmission infrastructure
Key Features:
Portable Signal Analyzer – for autonomous
operation anytime and anywhere!
Supports up to 5 hours of operation on a single charge
via an internal rechargeable Lithium-ion battery
Supports HDMI up to 4K/60 & 3D, and 3G-SDI
Supports RGB4:4:4, YUV4:2:2, YUV4:2:0 & Deep
Color
Supports an HDMI cable test function
Displays AV signal characteristics
3” LCD panel for pattern preview & menu settings
Supports 7 audio sample rates
VU meter supported on LCD
Supports HDCP 2.2 & 1.4
Supports EDID management
Locally or remotely managed via RS232 or USB
Supports an RS232 cascade for management
Free Windows management software
© MuxLab Inc. 2017 HDMI 2.0/3G-SDI Signal Analyzer
HDMI 2.0/3G-SDI Signal Analyzer
MuxLab Inc.
8495 Dalton Road, Mount Royal, Quebec, Canada, H4T 1V5
Tel: (514) 905 0588 Fax: (514) 905 0589
Toll Free:1 877 689-5228
E-mail: videoease@muxlab.com
www.muxlab.com
500831
_____________________________________________________________________________________________
Typical Application
Signal Analyzer Alone:
Signal Generator & Analyzer Combo:
