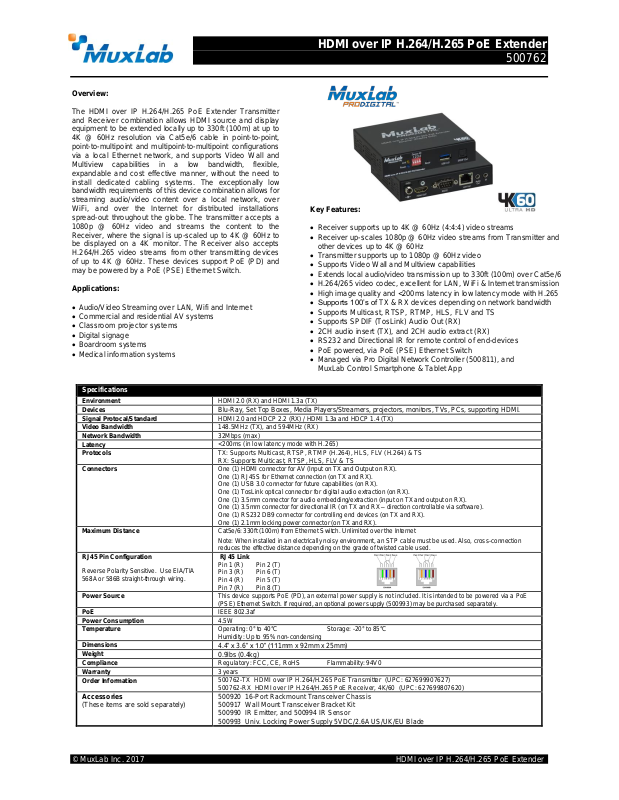

MuxLab 500762 Data Sheet
HDMI over IP H.264/H.265 PoE Extender
Specifications
Environment
HDMI 2.0 (RX) and HDMI 1.3a (TX)
Devices
Blu-Ray, Set Top Boxes, Media Players/Streamers, projectors, monitors, TVs, PCs, supporting HDMI.
Signal Protocal/Standard
HDMI 2.0 and HDCP 2.2 (RX) / HDMI 1.3a and HDCP 1.4 (TX)
Video Bandwidth
148.5MHz (TX), and 594MHz (RX)
Network Bandwidth
32Mbps (max)
Latency
<200ms (in low latency mode with H.265)
Protocols
TX: Supports Multicast, RTSP, RTMP (H.264), HLS, FLV (H.264) & TS
RX: Supports Multicast, RTSP, HLS, FLV & TS
Connectors
One (1) HDMI connector for AV (Input on TX and Output on RX).
One (1) RJ45S for Ethernet connection (on TX and RX).
One (1) USB 3.0 connector for future capabilities (on RX).
One (1) TosLink optical connector for digital audio extraction (on RX).
One (1) 3.5mm connector for audio embedding/extraction (input on TX and output on RX).
One (1) 3.5mm connector for directional IR (on TX and RX – direction controllable via software).
One (1) RS232 DB9 connector for controlling end devices (on TX and RX).
One (1) 2.1mm locking power connector (on TX and RX).
Maximum Distance
Cat5e/6: 330ft (100m) from Ethernet Switch. Unlimited over the Internet
Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection
reduces the effective distance depending on the grade of twisted cable used.
RJ45 Pin Configuration
Reverse Polarity Sensitive. Use EIA/TIA
568A or 586B straight-through wiring.
RJ45 Link
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T)
Power Source
This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE
(PSE) Ethernet Switch. If required, an optional power supply (500993) may be purch ased separately.
PoE
IEEE 802.3af
Power Consumption
4.5W
Temperature
Operating: 0° to 40°C Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Dimensions
4.4” x 3.6” x 1.0” (111mm x 92mm x 25mm)
Weight
0.9lbs (0.4kg)
Compliance
Regulatory: FCC, CE, RoHS Flammability: 94V0
Warranty
3 years
Order Information
500762-TX HDMI over IP H.264/H.265 PoE Transmitter (UPC: 627699907627)
500762-RX HDMI over IP H.264/H.265 PoE Receiver, 4K/60 (UPC: 627699807620)
Accessories
(These items are sold separately)
500920 16-Port Rackmount Transceiver Chassis
500917 Wall Mount Transceiver Bracket Kit
500990 IR Emitter, and 500994 IR Sensor
500993 Univ. Locking Power Supply 5VDC/2.6A US/UK/EU Blade
500762
Overview:
The HDMI over IP H.264/H.265 PoE Extender Transmitter
and Receiver combination allows HDMI source and display
equipment to be extended locally up to 330ft (100m) at up to
4K @ 60Hz resolution via Cat5e/6 cable in point-to-point,
point-to-multipoint and multipoint-to-multipoint configurations
via a local Ethernet network, and supports Video Wall and
Multiview capabilities in a low bandwidth, flexible,
expandable and cost effective manner, without the need to
install dedicated cabling systems. The exceptionally low
bandwidth requirements of this device combination allows for
streaming audio/video content over a local network, over
WiFi, and over the Internet for distributed installations
spread-out throughout the globe. The transmitter accepts a
1080p @ 60Hz video and streams the content to the
Receiver, where the signal is up-scaled up to 4K @ 60Hz to
be displayed on a 4K monitor. The Receiver also accepts
H.264/H.265 video streams from other transmitting devices
of up to 4K @ 60Hz. These devices support PoE (PD) and
may be powered by a PoE (PSE) Ethernet Switch.
Applications:
Audio/Video Streaming over LAN, Wifi and Internet
Commercial and residential AV systems
Classroom projector systems
Digital signage
Boardroom systems
Medical information systems
Key Features:
Receiver supports up to 4K @ 60Hz (4:4:4) video streams
Receiver up-scales 1080p @ 60Hz video streams from Transmitter and
other devices up to 4K @ 60Hz
Transmitter supports up to 1080p @ 60Hz video
Supports Video Wall and Multiview capabilities
Extends local audio/video transmission up to 330ft (100m) over Cat5e/6
H.264/265 video codec, excellent for LAN, WiFi & Internet transmission
High image quality and <200ms latency in low latency mode with H.265
Supports 100’s of TX & RX devices depending on network bandwidth
Supports Multicast, RTSP, RTMP, HLS, FLV and TS
Supports SPDIF (TosLink) Audio Out (RX)
2CH audio insert (TX), and 2CH audio extract (RX)
RS232 and Directional IR for remote control of end-devices
PoE powered, via PoE (PSE) Ethernet Switch
Managed via Pro Digital Network Controller (500811), and
MuxLab Control Smartphone & Tablet App
© MuxLab Inc. 2017 HDMI over IP H.264/H.265 PoE Extender
HDMI over IP H.264/H.265 PoE Extender
MuxLab Inc.
8495 Dalton Road, Mount Royal, Quebec, Canada, H4T 1V5
Tel: (514) 905 0588 Fax: (514) 905 0589
Toll Free:1 877 689-5228
E-mail: videoease@muxlab.com
www.muxlab.com
500762
_____________________________________________________________________________________________
Typical Application
© MuxLab Inc. 2017 HDMI over IP H.264/H.265 PoE Extender
