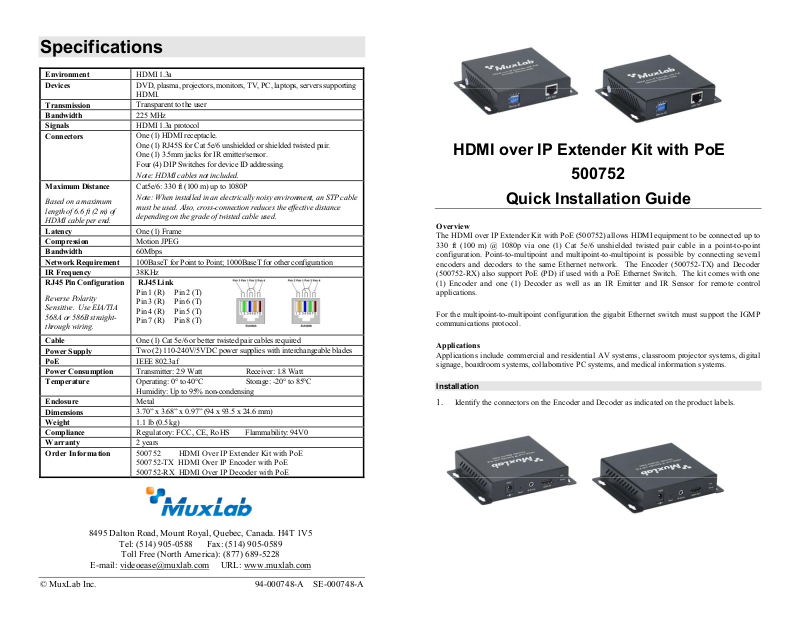

Specifications

Environment

Devices

Transmission
Bandwidth
Signals
Connectors

Maximum Distance

Based on a maximum
length of 6.6 ft (2 m) of
HDMI cable per end.

Latency
Compression
Bandwidth
Network Requirement
IR Frequency
RJ45 Pin Configuration

Reverse Polarity
Sensitive. Use EIA/TIA
568A or 586B straight­through wiring.

Cable
Power Supply
PoE
Power Consumption
Temperature

Enclosure
Dimensions
Weight
Compliance
Warranty
Order Information

HDMI 1.3a
DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting

HDMI.
Transparent to the user
225 MHz
HDMI 1.3a protocol
One (1) HDMI receptacle.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
One (1) 3.5mm jacks for IR emitter/sensor.
Four (4) DIP Switches for device ID addressing.

Note: HDMI cables not included.

Cat5e/6: 330 ft (100 m) up to 1080P

Note: When installed in an electrically noisy environment, an STP cable
must be used. Also, cross-connection reduces the effective distance
depending on the grade of twisted cable used.

One (1) Frame
Motion JPEG
60Mbps
100BaseT for Point to Point; 1000BaseT for other configuration
38KHz

RJ45 Link

Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T)

One (1) Cat 5e/6 or better twisted pair cables required
Two (2) 110-240V/5VDC power supplies with interchangeable blades
IEEE 802.3af
Transmitter: 2.9 Watt Receiver: 1.8 Watt
Operating: 0° to 40°C Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Metal

3.70” x 3.68” x 0.97” (94 x 93.5 x 24.6 mm)

1.1 lb (0.5 kg)
Regulatory: FCC, CE, RoHS Flammability: 94V0
2 years
500752 HDMI Over IP Extender Kit with PoE
500752-TX HDMI Over IP Encoder with PoE
500752-RX HDMI Over IP Decoder with PoE

HDMI over IP Extender Kit with PoE

500752

Quick Installation Guide

Overview

The HDMI over IP Extender Kit with PoE (500752) allows HDMI equipment to be connected up to
330 ft (100 m) @ 1080p via one (1) Cat 5e/6 unshielded twisted pair cable in a point-to-point
configuration. Point-to-multipoint and multipoint-to-multipoint is possible by connecting several
encoders and decoders to the same Ethernet network. The Encoder (500752-TX) and Decoder
(500752-RX) also support PoE (PD) if used with a PoE Ethernet Switch. The kit comes with one
(1) Encoder and one (1) Decoder as well as an IR Emitter and IR Sensor for remote control
applications.

For the multipoint-to-multipoint configuration the gigabit Ethernet switch must support the IGMP
communications protocol.

Applications

Applications include commercial and residential AV systems, classroom projector systems, digital
signage, boardroom systems, collaborative PC systems, and medical information systems.

Installation

1. Identify the connectors on the Encoder and Decoder as indicated on the product labels.

8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5

Tel: [phone] Fax: [phone]

Toll Free (North America): [phone]

E-mail: [e-mail] URL: www.muxlab.com

© MuxLab Inc. 94-000748-A SE-000748-A

2.

Verify that the distance between the HDMI Encoder and Decoder is within MuxLab
specifications (see Specifications table).

3. To install the Encoder:

3a. Connect the Encoder to the HDMI video source with an HDMI compliant cable.

3b. Connect one (1) length of Cat 5e/6 (or higher) grade UTP cable to the RJ45 LINK

connector on the Encoder.

4. To install the Decoder:

4a. Connect the Decoder to the HDMI display equipment with an HDMI compliant cable.
4b. Connect one (1) Cat 5e/6 cable to the RJ45 LINK connector on the Encoder.

5. If the configuration is point-to-multipoint or multipoint-to-multipoint:

5a. You will need to use a Gigabit Ethernet Switch.
5b. You will need to configure a unique IP and MAC Address to each of the Encoder and

Decoder. The default IP for the Encoder is 192.168.168.55 and the MAC address is
00:0B:78:00:60:01. The default IP for the Decoder is 192.168.168.56 and the MAC
address is 00:0B:78:00:60:02. To perform the configuration you will need to use a
browser to access the WEB Interface of each device.

5c. Connect all Encoders and Decoders to the Ethernet Switch. Use the DIP Switches to

select a unique Device ID of each Encoder present on the network and configure each
Decoder Device ID to the corresponding selected Encoder.

6. Powering the Encoder or Decoder via an external power supply is only necessary where PoE

(PSE) is unavailable. If PoE is unavailable, connect the 5 VDC power supply to the Decoder
first, and then plug the power supply into an AC power outlet. Connect the 5 VDC power
supply to the Encoder first, and then plug the power supply into an AC power outlet. If power
is present, the green power LED of the Encoder and the Decoder will be ON.

Note: Power on the HDMI over IP Extender only after all connections have been made.

7. Power on the HDMI equipment and verify the image quality.

8. This product supports IR pass-thru control. If infrared remote control is needed to control the

Source equipment from the Display, connect the IR Sensor to the 3.5mm Stereo Jack of the
receiver and the IR Emitter to the 3.5mm Mono Jack of the Transmitter.

Note: You can differentiate the IR Sensor and the IR Emitter by looking at the 3.5 mm

plug. The IR Sensor is using a Stereo Plug (3 Contacts) and the IR Emitter a
mono plug (2 Contacts).

9. Position the IR Sensor so that it is directed to the hand-held remote control. For a clear IR

signal reception, aim the hand-held remote control to the top of the IR Sensor enclosure.

10. Position the IR Emitter as close as possible to the source’s IR Sensor (i.e. DVD player). For a

clear IR signal reception, the IR Emitter can be glued on the source’s IR Sensor. The IR
Emitter’s signal is transmitted from the side of the enclosure.

11. The following diagram illustrates a typical point-to-point LAN configuration.

Troubleshooting

The following table describes some of the symptoms, probable causes and possible solutions in regard to
the installation of the HDMI over IP Extender Kit with PoE:

Symptom

No Image OFF OFF OFF OFF No power • Check power connections

No Image ON OFF ON ON Internal Error • Reboot the Encoder unit.
No Image ON ON ON OFF Internal Error • Reboot the Decoder unit.
No Image ON ON ON ON UTP Cable • Check the Encoder UTP

No Image ON BLINK ON ON UTP Cable • Check the Decoder UTP

No Image ON BLINK ON BLINK HDMI Cable • Check the HDMI Cable

Choppy Image ON BLINK ON BLINK Ethernet Switch • For Multipoint-to-Multipoint

Choppy sound ON BLINK ON BLINK Synchronization • Check cable length

Image flickers
when powering
up nearby
equipment
IR not
functioning

IR not
functioning

IR not
functioning

If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at 877-689­5228 (toll-free in North America) or ([phone] (International).

Encoder LEDs Decoder LEDs

Power Link Power Link

ON BLINK ON BLINK Interference • Use STP cables

ON BLINK ON BLINK Remote control

ON BLINK ON BLINK Interference

ON BLINK ON BLINK Interference

Probable

Cause

not directed to
the IR Sensor or
IR Emitter not
directed to the
source.

from sunlight,
Fluorescent,
Neon or
Halogen lights

from RF
radiation from
the TV

• Check PoE Ethernet Switch
Setup

cable.

cable.

Quality.

enable the IGMP mode of the
Gigabit Ethernet Switch.

• Check the HDMI Cable
Quality.

• Make sure the IR Sensor is
directed towards the remote
and the IR Emitter to the
equipment

• Place the IR equipment away
for the interfering light

• Place the IR equipment away
for the RF radiation

Possible

Solutions

© MuxLab Inc. 2013
