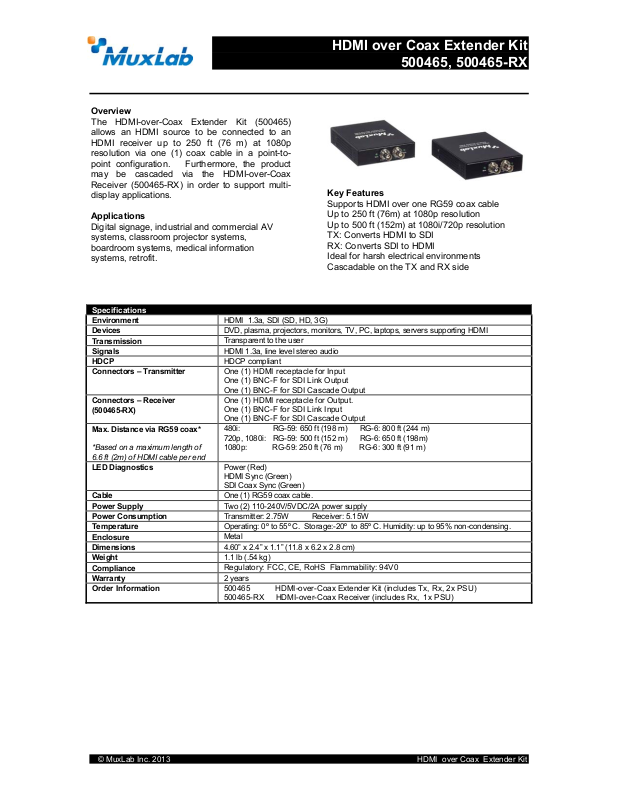

MuxLab 500465, 500465-RX Specifications
Overview
The HDMI-over-Coax Extender Kit (500465)
allows an HDMI source to be connected to an
HDMI receiver up to 250 ft (76 m) at 1080p
resolution via one (1) coax cable in a point-topoint configuration. Furthermore, the product
may be cascaded via the HDMI-over-Coax
Receiver (500465-RX) in order to support multidisplay applications.
Applications
Digital signage, industrial and commercial AV
systems, classroom projector systems,
boardroom systems, medical information
systems, retrofit.
HDMI over Coax Extender Kit
500465, 500465-RX
Key Features
Supports HDMI over one RG59 coax cable
Up to 250 ft (76m) at 1080p resolution
Up to 500 ft (152m) at 1080i/720p resolution
TX: Converts HDMI to SDI
RX: Converts SDI to HDMI
Ideal for harsh electrical environments
Cascadable on the TX and RX side
Specifications
Environment
Devices
Transmission
Signals
HDCP
Connectors – Transmitter
Connectors – Receiver
(500465-RX)
Max. Distance via RG59 coax*
*Based on a maximum length of
6.6 ft (2m) of HDMI cable per end
LED Diagnostics
Cable
Power Supply
Power Consumption
Temperature
Enclosure
Dimensions
Weight
Compliance
Warranty
Order Information
HDMI 1.3a, SDI (SD, HD, 3G)
DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI
Transparent to the user
HDMI 1.3a, line level stereo audio
HDCP compliant
One (1) HDMI receptacle for Input
One (1) BNC-F for SDI Link Output
One (1) BNC-F for SDI Cascade Output
One (1) HDMI receptacle for Output.
One (1) BNC-F for SDI Link Input
One (1) BNC-F for SDI Cascade Output
480i: RG-59: 650 ft (198 m) RG-6: 800 ft (244 m)
720p, 1080i: RG-59: 500 ft (152 m) RG-6: 650 ft (198m)
1080p: RG-59: 250 ft (76 m) RG-6: 300 ft (91 m)
Power (Red)
HDMI Sync (Green)
SDI Coax Sync (Green)
One (1) RG59 coax cable.
Two (2) 110-240V/5VDC/2A power supply
Transmitter: 2.75W Receiver: 5.15W
Operating: 0º to 55º C. Storage:-20º to 85º C. Humidity: up to 95% non-condensing.
Metal
4.60” x 2.4” x 1.1” (11.8 x 6.2 x 2.8 cm)
1.1 lb (.54 kg)
Regulatory: FCC, CE, RoHS Flammability: 94V0
2 years
500465 HDMI-over-Coax Extender Kit (includes Tx, Rx, 2x PSU)
500465-RX HDMI-over-Coax Receiver (includes Rx, 1x PSU)
© MuxLab Inc. 2013 HDMI over Coax Extender Kit
HDMI over Coax Extender Kit
500465, 500465-RX
