MuxLab 500444 Specifications
HDMI 4x4 Matrix Switch, 4K/60
500444
Overview:
The HDMI 4x4 Matrix, 4K/60 (4:4:4) connects four
HDMI sources to four displays. This matrix provide four
HDMI outputs supporting up to 4K/60 (4:4:4) plus all 3D
formats, and supporting independent EDID control. It
works with Blu-Ray players, Media Players/Streamers,
Cameras, Set-Top boxes, Home Theater systems, and
game consoles that connect to an HDMI display. Any
source is accessible at all times by any display by
selecting it via the supplied IR Remote Control, RS232, TCP/IP or by using the selection buttons on the
front panel.
Applications:
Commercial and residential AV systems
Classroom training systems
Digital signage
Boardroom systems
Collaborative PC systems
Medical information systems

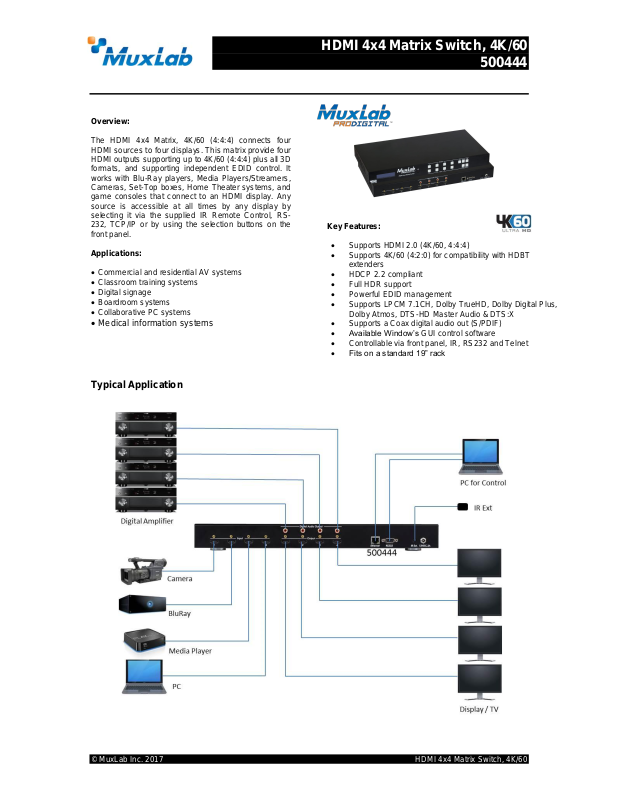

Typical Application
Key Features:
Supports HDMI 2.0 (4K/60, 4:4:4)
Supports 4K/60 (4:2:0) for compatibility with HDBT
extenders
HDCP 2.2 compliant
Full HDR support
Powerful EDID management
Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus,
Dolby Atmos, DTS-HD Master Audio & DTS:X
Supports a Coax digital audio out (S/PDIF)
Available Window’s GUI control software
Controllable via front panel, IR, RS232 and Telnet
Fits on a standard 19” rack
© MuxLab Inc. 2017 HDMI 4x4 Matrix Switch, 4K/60
HDMI 4x4 Matrix Switch, 4K/60
MuxLab Inc.
8495 Dalton Road, Mount Royal, Quebec, Canada, H4T 1V5
Tel: (514) 905 0588 Fax: (514) 905 0589
Toll Free:1 877 689-5228
E-mail: videoease@muxlab.com
www.muxlab.com
Specifications
Environment
HDMI 2.0a
Devices
4K Blu-Ray, media players/streamers, projectors, monitors, TV, PC, laptops.
Transmission
Transparent to the user.
Video Bandwidth
18Gbps
Maximum Pixel Clock
594Mhz
Signals
HDMI 2.0a (4K/60 4:4:4) protocol and HDCP 1.4 & 2.2
Video Resolution
VESA and SMPTE 480p to 2160p (4K) With 3D
Bit depth: 8, 10, 12
Connectors
Four (4) HDMI connectors, for HDMI Input
Four (4) HDMI connectors, for HDMI Output
One (1) 3.5mm Jack, for IR Sensor
One (1) DB9 connector for RS232 management
One (1) RJ45 Shielded connector for Ethernet
Four (4) Coax Digital Audio Outputs
One (1) 2.1mm barrel locking connector for Power
Audio
Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master
Audio & DTS:X
Cable
Eight (8) HDMI cables of appropriate length for video resolution selected
Cat 5e/6 or better twisted pair cable for Ethernet
One DB9 serial cable for RS232
Maximum Distance
Cables not included.
10m for HDMI cable
Power Supply
One (1) 110-240VAC to 12VDC/5.0A power supply
Temperature
Operating: 0° to 40°C Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Enclosure
Metal enclosure
Bracket
Included
Dimensions
17.20” x 1.69” x 8.86” (437mm x 43mm x 225mm)
Weight
9.69lbs (4.40kg)
Compliance
Regulatory: FCC, CE, RoHS
Warranty
2 years
Order Information
500444-US HDMI 4x4 Matrix Switch, 4K/60, US (UPC: 627699014448)
500444-UK HDMI 4x4 Matrix Switch, 4K/60, UK (UPC: 627699914441)
500444-EU HDMI 4x4 Matrix Switch, 4K/60, EU (UPC: 627699814444)
500444
