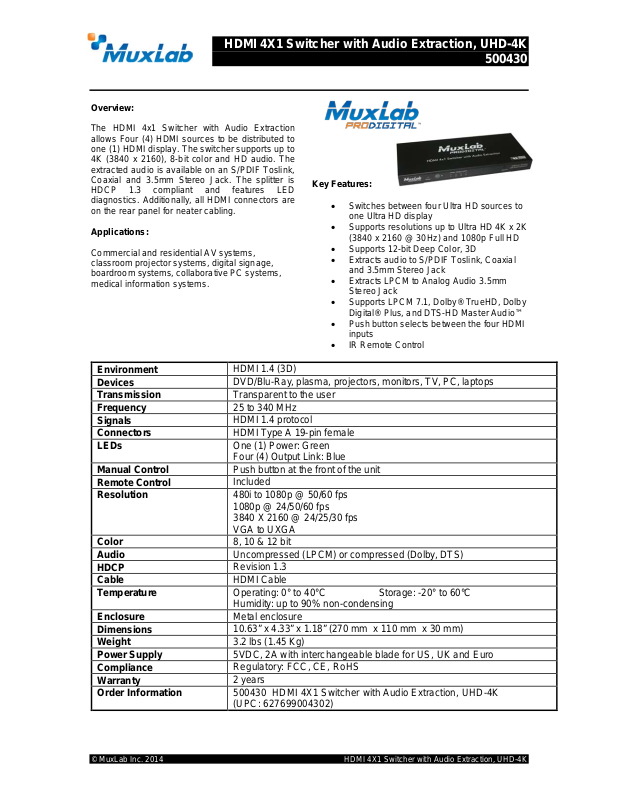

MuxLab 500430 Specsheet
HDMI 4X1 Switcher with Audio Extraction, UHD-4K
Environment
HDMI 1.4 (3D)
Devices
DVD/Blu-Ray, plasma, projectors, monitors, TV, PC, laptops
Transmission
Transparent to the user
Frequency
25 to 340 MHz
Signals
HDMI 1.4 protocol
Connectors
HDMI Type A 19-pin female
LEDs
One (1) Power: Green
Four (4) Output Link: Blue
Manual Control
Push button at the front of the unit
Remote Control
Included
Resolution
480i to 1080p @ 50/60 fps
VGA to UXGA
Color
8, 10 & 12 bit
Audio
Uncompressed (LPCM) or compressed (Dolby, DTS)
HDCP
Revision 1.3
Cable
HDMI Cable
Temperature
Operating: 0° to 40°C Storage: -20° to 60°C
Humidity: up to 90% non-condensing
Enclosure
Metal enclosure
Dimensions
10.63” x 4.33” x 1.18” (270 mm x 110 mm x 30 mm)
Weight
3.2 lbs (1.45 Kg)
Power Supply
5VDC, 2A with interchangeable blade for US, UK and Euro
Compliance
Regulatory: FCC, CE, RoHS
Warranty
2 years
Order Information
500430 HDMI 4X1 Switcher with Audio Extraction, UHD-4K
(UPC: 627699004302)
500430
Overview:
The HDMI 4x1 Switcher with Audio Extraction
allows Four (4) HDMI sources to be distributed to
one (1) HDMI display. The switcher supports up to
4K (3840 x 2160), 8-bit color and HD audio. The
extracted audio is available on an S/PDIF Toslink,
Coaxial and 3.5mm Stereo Jack. The splitter is
HDCP 1.3 compliant and features LED
diagnostics. Additionally, all HDMI connectors are
on the rear panel for neater cabling.
Applications:
Commercial and residential AV systems,
classroom projector systems, digital signage,
boardroom systems, collaborative PC systems,
medical information systems.
Key Features:
• Switches between four Ultra HD sources to
one Ultra HD display
• Supports resolutions up to Ultra HD 4K x 2K
(3840 x 2160 @ 30Hz) and 1080p Full HD
• Supports 12-bit Deep Color, 3D
• Extracts audio to S/PDIF Toslink, Coaxial
and 3.5mm Stereo Jack
• Extracts LPCM to Analog Audio 3.5mm
Stereo Jack
• Supports LPCM 7.1, Dolby® TrueHD, Dolby
Digital® Plus, and DTS-HD Master Audio™
• Push button selects between the four HDMI
inputs
• IR Remote Control
1080p @ 24/50/60 fps
3840 X 2160 @ 24/25/30 fps
© MuxLab Inc. 2014 HDMI 4X1 Switcher with Audio Extraction, UHD-4K
HDMI 4X1 Switcher with Audio Extraction, UHD-4K
500430
__________________________________________________________________________________
Typical Applications
Photos of the product
© MuxLab Inc. 2014 HDMI 4X1 Switcher with Audio Extraction, UHD-4K
MuxLab Inc.
8495 Dalton Road, Mount Royal, Quebec, Canada, H4T 1V5
Tel: (514) 905 0588 Fax: (514) 905 0589
Toll Free:1 877 689-5228
