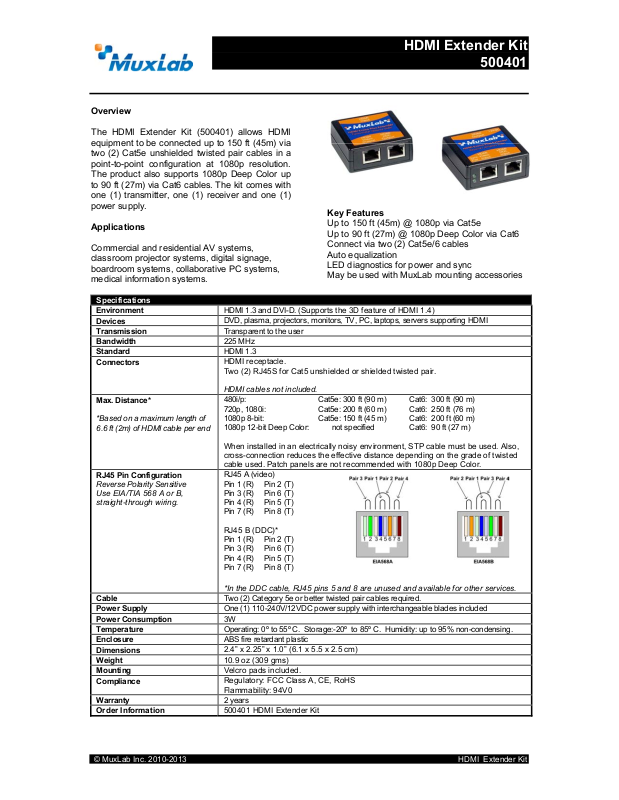

MuxLab 500401 Data Sheet
Overview
The HDMI Extender Kit (500401) allows HDMI
equipment to be connected up to 150 ft (45m) via
two (2) Cat5e unshielded twisted pair cables in a
point-to-point configuration at 1080p resolution.
The product also supports 1080p Deep Color up
to 90 ft (27m) via Cat6 cables. The kit comes with
one (1) transmitter, one (1) receiver and one (1)
power supply.
Applications
Commercial and residential AV systems,
classroom projector systems, digital signage,
boardroom systems, collaborative PC systems,
medical information systems.
HDMI Extender Kit
500401
Key Features
Up to 150 ft (45m) @ 1080p via Cat5e
Up to 90 ft (27m) @ 1080p Deep Color via Cat6
Connect via two (2) Cat5e/6 cables
Auto equalization
LED diagnostics for power and sync
May be used with MuxLab mounting accessories
Specifications
Environment
Devices
Transmission
Bandwidth
Standard
Connectors
Max. Distance*
*Based on a maximum length of
6.6 ft (2m) of HDMI cable per end
RJ45 Pin Configuration
Reverse Polarity Sensitive
Use EIA/TIA 568 A or B,
straight-through wiring.
Cable
Power Supply
Power Consumption
Temperature
Enclosure
Dimensions
Weight
Mounting
Compliance
Warranty
Order Information
HDMI 1.3 and DVI-D. (Supports the 3D feature of HDMI 1.4)
DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI
Transparent to the user
225 MHz
HDMI 1.3
HDMI receptacle.
Two (2) RJ45S for Cat5 unshielded or shielded twisted pair.
HDMI cables not included.
480i/p: Cat5e: 300 ft (90 m) Cat6: 300 ft (90 m)
720p, 1080i: Cat5e: 200 ft (60 m) Cat6: 250 ft (76 m)
1080p 8-bit: Cat5e: 150 ft (45 m) Cat6: 200 ft (60 m)
1080p 12-bit Deep Color: not specified Cat6: 90 ft (27 m)
When installed in an electrically noisy environment, STP cable must be used. Also,
cross-connection reduces the effective distance depending on the grade of twisted
cable used. Patch panels are not recommended with 1080p Deep Color.
RJ45 A (video)
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T)
RJ45 B (DDC)*
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T)
*In the DDC cable, RJ45 pins 5 and 8 are unused and available for other services.
Two (2) Category 5e or better twisted pair cables required.
One (1) 110-240V/12VDC power supply with interchangeable blades included
3W
Operating: 0º to 55º C. Storage:-20º to 85º C. Humidity: up to 95% non-condensing.
ABS fire retardant plastic
2.4” x 2.25” x 1.0” (6.1 x 5.5 x 2.5 cm)
10.9 oz (309 gms)
Velcro pads included.
Regulatory: FCC Class A, CE, RoHS
Flammability: 94V0
2 years
500401 HDMI Extender Kit
© MuxLab Inc. 2010-2013 HDMI Extender Kit
HDMI Extender Kit
500401
__________________________________________________________________________________
Typical Application
© MuxLab Inc. 2010-2013 HDMI Extender Kit
MuxLab Inc.
8495 Dalton Road, Mount Royal, Quebec,
Canada, H4T 1V5
Tel: (514) 905 0588 Fax: (514) 905 0589
Toll Free:1 877 689-5228
E-mail: videoease@muxlab.com
URL:www.muxlab.com
