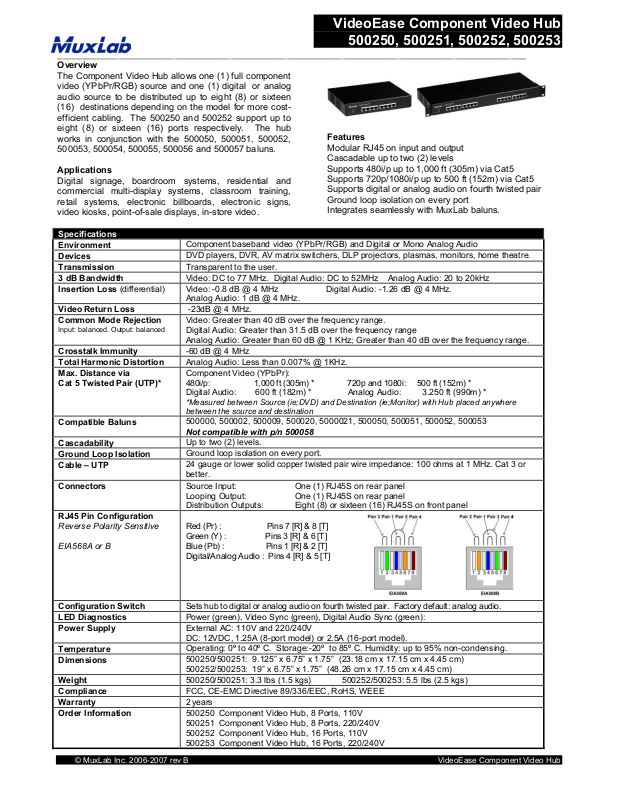

MuxLab 500250 Specsheet
VideoEase Component Video Hub
500250, 500251, 500252, 500253
____________________________________________________________________________________________
Overview
The Component Video Hub allows one (1) full component
video (YPbPr/RGB) source and one (1) digital or analog
audio source to be distributed up to eight (8) or sixteen
(16) destinations depending on the model for more costefficient cabling. The 500250 and 500252 support up to
eight (8) or sixteen (16) ports respectively. The hub
works in conjunction with the 500050, 500051, 500052,
500053, 500054, 500055, 500056 and 500057 baluns.
Applications
Digital signage, boardroom systems, residential and
commercial multi-display systems, classroom training,
retail systems, electronic billboards, electronic signs,
video kiosks, point-of-sale displays, in-store video.
Specifications
Environment
Devices
Transmission
3 dB Bandwidth
Insertion Loss (differential)
Video Return Loss
Common Mode Rejection
Input: balanced. Output: balanced
Crosstalk Immunity
Total Harmonic Distortion
Max. Distance via
Cat 5 Twisted Pair (UTP)*
Compatible Baluns
Cascadability
Ground Loop Isolation
Cable – UTP
Connectors
RJ45 Pin Configuration
Reverse Polarity Sensitive
EIA568A or B
Component baseband video (YPbPr/RGB) and Digital or Mono Analog Audio
DVD players, DVR, AV matrix switchers, DLP projectors, plasmas, monitors, home theatre.
Transparent to the user.
Video: DC to 77 MHz. Digital Audio: DC to 52MHz Analog Audio: 20 to 20kHz
Video: -0.8 dB @ 4 MHz Digital Audio: -1.26 dB @ 4 MHz.
Analog Audio: 1 dB @ 4 MHz.
-23dB @ 4 MHz.
Video: Greater than 40 dB over the frequency range.
Digital Audio: Greater than 31.5 dB over the frequency range
Analog Audio: Greater than 60 dB @ 1 KHz; Greater than 40 dB over the frequency range.
-60 dB @ 4 MHz
Analog Audio: Less than 0.007% @ 1KHz.
Component Video (YPbPr):
480i/p: 1,000 ft (305m) * 720p and 1080i: 500 ft (152m) *
Digital Audio: 600 ft (182m) * Analog Audio: 3.250 ft (990m) *
*Measured between Source (ie;DVD) and Destination (ie;Monitor) with Hub placed anywhere
between the source and destination
500000, 500002, 500009, 500020, 5000021, 500050, 500051, 500052, 500053
Not compatible with p/n 500058
Up to two (2) levels.
Ground loop isolation on every port.
24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz. Cat 3 or
better.
Source Input: One (1) RJ45S on rear panel
Looping Output: One (1) RJ45S on rear panel
Distribution Outputs: Eight (8) or sixteen (16) RJ45S on front panel
Red (Pr) : Pins 7 [R] & 8 [T]
Green (Y) : Pins 3 [R] & 6 [T]
Blue (Pb) : Pins 1 [R] & 2 [T]
Digital/Analog Audio : Pins 4 [R] & 5 [T]
Features
Modular RJ45 on input and output
Cascadable up to two (2) levels
Supports 480i/p up to 1,000 ft (305m) via Cat5
Supports 720p/1080i/p up to 500 ft (152m) via Cat5
Supports digital or analog audio on fourth twisted pair
Ground loop isolation on every port
Integrates seamlessly with MuxLab baluns.
Configuration Switch
LED Diagnostics
Power Supply
Temperature
Dimensions
Weight
Compliance
Warranty
Order Information
© MuxLab Inc. 2006-2007 rev B VideoEase Component Video Hub
Sets hub to digital or analog audio on fourth twisted pair. Factory default: analog audio.
Power (green), Video Sync (green), Digital Audio Sync (green):
External AC: 110V and 220/240V
DC: 12VDC, 1.25A (8-port model) or 2.5A (16-port model).
Operating: 0º to 40º C. Storage:-20º to 85º C. Humidity: up to 95% non-condensing.
500250/500251: 9.125” x 6.75” x 1.75” (23.18 cm x 17.15 cm x 4.45 cm)
500252/500253: 19” x 6.75” x 1.75” (48.26 cm x 17.15 cm x 4.45 cm)
500250/500251: 3.3 lbs (1.5 kgs) 500252/500253: 5.5 lbs (2.5 kgs)
FCC, CE-EMC Directive 89/336/EEC, RoHS, WEEE
2 years
500250 Component Video Hub, 8 Ports, 110V
500251 Component Video Hub, 8 Ports, 220/240V
500252 Component Video Hub, 16 Ports, 110V
500253 Component Video Hub, 16 Ports, 220/240V
VideoEase Component Video Hub
500250, 500251, 500252, 500253
____________________________________________________________________________________________
Typical Application
Compatible Baluns
Distribute 500050 500051 500052 500053 500054 500055 500056 500057
Component
& Digital
Audio
Component
& Analog
Mono Audio
Component
Video Only
© MuxLab Inc. 2006-2008 rev B VideoEase Component Video Hub
;;
;;
;;;;;;;;
Tel: (514) 905 0588 Fax: (514) 905 0589
Toll Free: 877 689-5228
E-mail: videoease@muxlab.com
URL:www.muxlab.com
