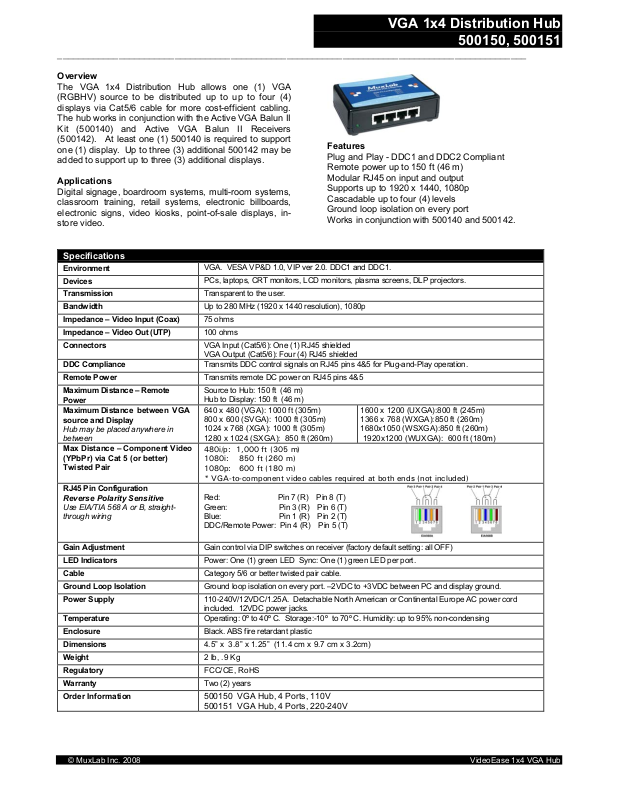

MuxLab 500150 Specsheet

VGA 1x4 Distribution Hub

500150, 500151

____________________________________________________________________________________________

Overview

The VGA 1x4 Distribution Hub allows one (1) VGA
(RGBHV) source to be distributed up to up to four (4)
displays via Cat5/6 cable for more cost-efficient cabling.
The hub works in conjunction with the Active VGA Balun II
Kit (500140) and Active VGA Balun II Receivers
(500142). At least one (1) 500140 is required to support
one (1) display. Up to three (3) additional 500142 may be
added to support up to three (3) additional displays.

Applications

Digital signage, boardroom systems, multi-room systems,
classroom training, retail systems, electronic billboards,
electronic signs, video kiosks, point-of-sale displays, in­store video.

Specifications

Environment

Devices

Transmission

Bandwidth

Impedance – Video Input (Coax)

Impedance – Video Out (UTP)

Connectors

DDC Compliance

Remote Power

Maximum Distance – Remote
Power
Maximum Distance between VGA
source and Display

Hub may be placed anywhere in
between

Max Distance – Component Video
(YPbPr) via Cat 5 (or better)
Twisted Pair

RJ45 Pin Configuration

Reverse Polarity Sensitive

Use EIA/TIA 568 A or B, straight­through wiring

VGA. VESA VP&D 1.0, VIP ver 2.0. DDC1 and DDC1.

PCs, laptops, CRT monitors, LCD monitors, plasma screens, DLP projectors.

Transparent to the user.

Up to 280 MHz (1920 x 1440 resolution), 1080p

75 ohms

100 ohms

VGA Input (Cat5/6): One (1) RJ45 shielded
VGA Output (Cat5/6): Four (4) RJ45 shielded
Transmits DDC control signals on RJ45 pins 4&5 for Plug-and-Play operation.

Transmits remote DC power on RJ45 pins 4&5

Source to Hub: 150 ft (46 m)
Hub to Display: 150 ft (46 m)

640 x 480 (VGA): 1000 ft (305m)
800 x 600 (SVGA): 1000 ft (305m)
1024 x 768 (XGA): 1000 ft (305m)
1280 x 1024 (SXGA): 850 ft (260m)

480i/p: 1,000 ft (305 m)
1080i: 850 ft (260 m)
1080p: 600 ft (180 m)
* VGA-to-component video cables required at both ends (not included)

Red: Pin 7 (R) Pin 8 (T)
Green: Pin 3 (R) Pin 6 (T)
Blue: Pin 1 (R) Pin 2 (T)
DDC/Remote Power: Pin 4 (R) Pin 5 (T)

Features

Plug and Play - DDC1 and DDC2 Compliant
Remote power up to 150 ft (46 m)
Modular RJ45 on input and output
Supports up to 1920 x 1440, 1080p
Cascadable up to four (4) levels
Ground loop isolation on every port
Works in conjunction with 500140 and 500142.

1600 x 1200 (UXGA):800 ft (245m)
1366 x 768 (WXGA):850 ft (260m)
1680x1050 (WSXGA):850 ft (260m)

1920x1200 (WUXGA): 600 ft (180m)

Gain Adjustment

LED Indicators

Cable

Ground Loop Isolation

Power Supply

Temperature

Enclosure

Dimensions

Weight

Regulatory

Warranty

Order Information

Gain control via DIP switches on receiver (factory default setting: all OFF)

Power: One (1) green LED Sync: One (1) green LED per port.

Category 5/6 or better twisted pair cable.

Ground loop isolation on every port. –2VDC to +3VDC between PC and display ground.

110-240V/12VDC/1.25A. Detachable North American or Continental Europe AC power cord
included. 12VDC power jacks.
Operating: 0º to 40º C. Storage:-10º to 70º C. Humidity: up to 95% non-condensing

Black. ABS fire retardant plastic

4.5” x 3.8” x 1.25” (11.4 cm x 9.7 cm x 3.2cm)

2 lb, .9 Kg

FCC/CE, RoHS

Two (2) years

500150 VGA Hub, 4 Ports, 110V
500151 VGA Hub, 4 Ports, 220-240V
