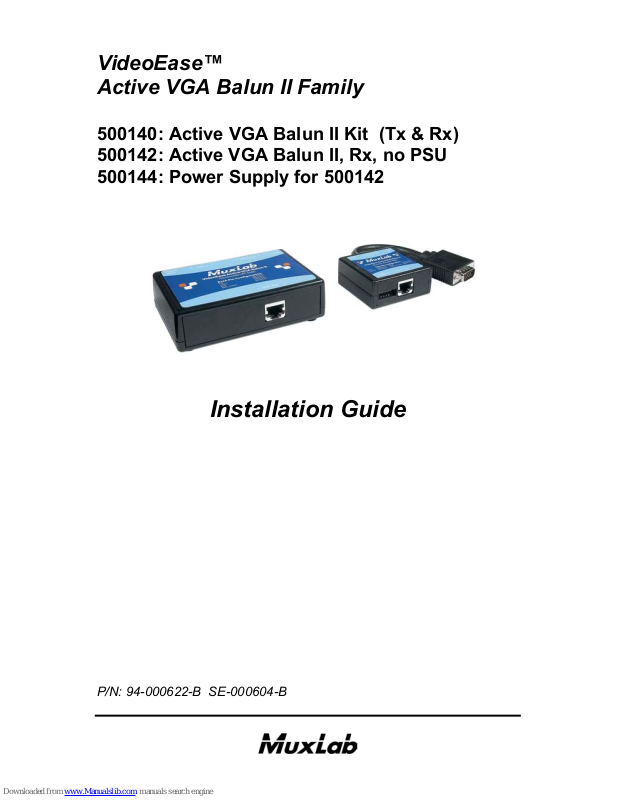

MuxLab 500140, 500144, 500142 Installation Manual
P/N: 94-000622-B SE-000604-B
VideoEase™
Active VGA Balun II Family
500140: Active VGA Balun II Kit (Tx & Rx)
500142: Active VGA Balun II, Rx, no PSU
500144: Power Supply for 500142
Installation Guide
© MuxLab Inc. Active VGA Balun II Family Installation Guide
Pag
e 2
Copyright Notice :
Copyright © 2008 MuxLab Inc. All rights reserved.
Printed in Canada. No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in any form or by any
means, electronic, mechanical, photocopying, recording, or
otherwise without prior written permission of the author.
Trademarks :
MuxLab and VideoEase are registered trademarks of MuxLab Inc.
© MuxLab Inc. Active VGA Balun II Family Installation Guide
Pag
e 3
Table of Contents
1. Overview ........................................................................4
1.1. Description........................................................4
1.2. Features.............................................................5
2. Technical Specifications ...............................................6
3. Installation Procedure ..................................................7
3.1. Parts List ...........................................................7
3.2. Product Overview .............................................8
3.3. Pre-Installation Checklist .................................9
3.4. Installation Procedure .....................................10
3.5 Cascadability………………………………..14
4. Troubleshooting ..........................................................15
5. Product Warranty Policy ...........................................17
© MuxLab Inc. Active VGA Balun II Family Installation Guide
Pag
e 4
1.
Overview
1.1. Description
The Active VGA/Component Balun II Kit allows VGA
or component video to be transmitted via cost-efficient
unshielded copper twisted cable in a point-to-point
configuration.
The product supports remote power pass-thru and is
DDC compliant with all “plug-and-play” laptops, PCs
and displays. The product supports up to 1920 x 1200
pixels and 1080p resolution and features manual gain
adjustment and local monitor output for added
versatility.
The product converts the VGA signal from an
unbalanced signal to a balanced signal and amplifies and
equalizes the signal at the receiving end. It provides
excellent image quality and minimizes distortions due to
smearing, propagation delay and phase deviation. The
transmitter and receiver are shown in the photo below.
Applications include; Digital signage, residential,
boardroom, classroom, and medical imaging video
systems.
© MuxLab Inc. Active VGA Balun II Family Installation Guide
Pag
e 5
1.2. Features
• Up to 600 ft (180m) via Cat5E/6 @ 1920 x 1200
• Up to 600 ft (180m) via Cat5E/6 @ 1080p
• Remote power pass-thru up to 150 ft (46m)
• DDC1/DDC2 (Plug-and-Play) Compliant
• Manual gain compensation
• Local monitor output
• Up to four (4) transmitters may be cascaded
© MuxLab Inc. Active VGA Balun II Family Installation Guide
Pag
e 6
2.
Technical Specifications
Environment
VGA. VESA VP&D 1.0, VIP ver 2.0. DDC1 and DDC1.
Devices
PCs, laptops, CRT monitors, LCD monitors, plasma screens, DLP
projectors.
Transmission
Transparent to the user.
Bandwidth
Up to 220 MHz (1920 x 1200 resolution), 1080p
Input Impedance
HD15; 75 ohms
Output Impedance -
Cat5: 100 ohms
Connectors –
Transmitter
VGA/Component Input (PC): DB15HD-F
VGA/Component Output (Local Monitor): DB15HD-F
VGA/Component Output (Cat5): RJ45 shielded
Connectors –
Receiver
VGA/Component Input (Cat5): RJ45 shielded
VGA/Component Output (Display): DB15HD-M
Maximum Distance –
Remote Power
150 ft (46m) (Tx Balun unpowered, Rx balun powered)
150 ft (46m) (Tx Balun powered, Rx balun unpowered)
Max. Distance –
VGA via Cat 5 (or
better) Twisted Pair
640 x 480 (VGA): 1000 ft (305m)
800 x 600 (SVGA): 1000 ft (305m)
1024 x 768 (XGA): 1000 ft (305m)
1280 x 1024 (SXGA): 850 ft (260m)
1600 x 1200 (UXGA): 800 ft (245m)
1366 x 768 (WXGA): 850 ft (260m)
1680x1050 (WSXGA): 850 ft (260m)
1920 x 1200 (WUXGA):600 ft (180m)
Max Distance –
Component Video
(YPbPr) via Cat 5 (or
better) Twisted Pair
480i/p: 1,000 ft (305 m)
1080i: 850 ft (260 m)
1080p: 600 ft (180 m)
* VGA-to-component video cables required (not included)
RJ45 Pin Configuration
Reverse Polarity Sensitive
Use EIA/TIA 568 A or B,
straight-through wiring
Red: Pin 7 (R) Pin 8 (T)
Green: Pin 3 (R) Pin 6 (T)
Blue: Pin 1 (R) Pin 2 (T)
DDC/Remote Power: Pin 4 (R) Pin 5 (T)
Gain Adjustment
Gain control via DIP switches on receiver (factory default setting: all OFF)
LED Indicators
Tx Balun: Power: One (1) green LED Sync: One (1) green LED
Rx Balun: Power: One (1) green LED
Cable
Category 5 or better twisted pair cable.
Transmitter requires additional VGA jumper cables (not included)
Power Supplies
110-240V/12VDC/0.5. Removable AC blades included for North
America and Continental Europe.
12VDC power jacks.
Temperature
Operating: 0º to 40º C. Storage:-10º to 70º C.
Humidity: up to 95% non-condensing.
Enclosure
Black. ABS fire retardant plastic
Dimensions
4.5” x 3.8” x 1.25” (11.4 cm x 9.7 cm x 3.2cm)
Weight
2 lbs, .9 Kg
Regulatory
FCC/CE, RoHS
Warranty
Two (2) years
Order Information
500140: Active VGA Balun II Kit
500142: Active VGA Balun II, Receiver Only (Display), No PSU
500144: Power Supply 100-240V/12VDC/.5A for 500142
