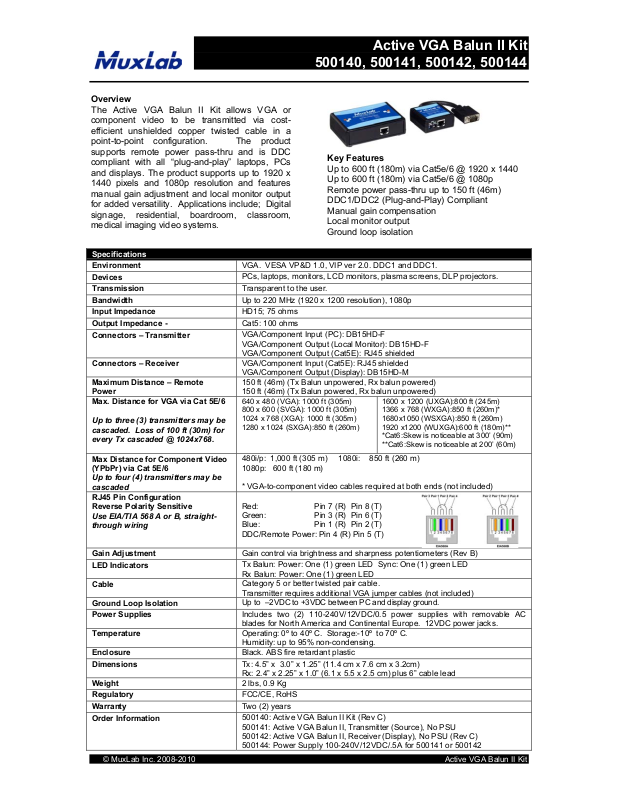

MuxLab 500140, 500142 Specsheet
Overview
The Active VGA Balun II Kit allows VGA or
component video to be transmitted via costefficient unshielded copper twisted cable in a
point-to-point configuration. The product
supports remote power pass-thru and is DDC
compliant with all “plug-and-play” laptops, PCs
and displays. The product supports up to 1920 x
1440 pixels and 1080p resolution and features
manual gain adjustment and local monitor output
for added versatility. Applications include; Digital
signage, residential, boardroom, classroom,
medical imaging video systems.
Specifications
Environment
Devices
Transmission
Bandwidth
Input Impedance
Output Impedance Connectors – Transmitter
Connectors – Receiver
Maximum Distance – Remote
Power
Max. Distance for VGA via Cat 5E/6
Up to three (3) transmitters may be
cascaded. Loss of 100 ft (30m) for
every Tx cascaded @ 1024x768.
Max Distance for Component Video
(YPbPr) via Cat 5E/6
Up to four (4) transmitters may be
cascaded
RJ45 Pin Configuration
Reverse Polarity Sensitive
Use EIA/TIA 568 A or B, straightthrough wiring
VGA. VESA VP&D 1.0, VIP ver 2.0. DDC1 and DDC1.
PCs, laptops, monitors, LCD monitors, plasma screens, DLP projectors.
Transparent to the user.
Up to 220 MHz (1920 x 1200 resolution), 1080p
HD15; 75 ohms
Cat5: 100 ohms
VGA/Component Input (PC): DB15HD-F
VGA/Component Output (Local Monitor): DB15HD-F
VGA/Component Output (Cat5E): RJ45 shielded
VGA/Component Input (Cat5E): RJ45 shielded
VGA/Component Output (Display): DB15HD-M
150 ft (46m) (Tx Balun unpowered, Rx balun powered)
150 ft (46m) (Tx Balun powered, Rx balun unpowered)
640 x 480 (VGA): 1000 ft (305m)
800 x 600 (SVGA): 1000 ft (305m)
1024 x 768 (XGA): 1000 ft (305m)
1280 x 1024 (SXGA):850 ft (260m)
480i/p: 1,000 ft (305 m) 1080i: 850 ft (260 m)
1080p: 600 ft (180 m)
* VGA-to-component video cables required at both ends (not included)
Red: Pin 7 (R) Pin 8 (T)
Green: Pin 3 (R) Pin 6 (T)
Blue: Pin 1 (R) Pin 2 (T)
DDC/Remote Power: Pin 4 (R) Pin 5 (T)
Active VGA Balun II Kit
500140, 500141, 500142, 500144
Key Features
Up to 600 ft (180m) via Cat5e/6 @ 1920 x 1440
Up to 600 ft (180m) via Cat5e/6 @ 1080p
Remote power pass-thru up to 150 ft (46m)
DDC1/DDC2 (Plug-and-Play) Compliant
Manual gain compensation
Local monitor output
Ground loop isolation
1600 x 1200 (UXGA):800 ft (245m)
1366 x 768 (WXGA):850 ft (260m)*
1680x1050 (WSXGA):850 ft (260m)
1920 x1200 (WUXGA):600 ft (180m)**
*Cat6:Skew is noticeable at 300’ (90m)
**Cat6:Skew is noticeable at 200’ (60m)
Gain Adjustment
LED Indicators
Cable
Ground Loop Isolation
Power Supplies
Temperature
Enclosure
Dimensions
Weight
Regulatory
Warranty
Order Information
© MuxLab Inc. 2008-2010 Active VGA Balun II Kit
Gain control via brightness and sharpness potentiometers (Rev B)
Tx Balun: Power: One (1) green LED Sync: One (1) green LED
Rx Balun: Power: One (1) green LED
Category 5 or better twisted pair cable.
Transmitter requires additional VGA jumper cables (not included)
Up to –2VDC to +3VDC between PC and display ground.
Includes two (2) 110-240V/12VDC/0.5 power supplies with removable AC
blades for North America and Continental Europe. 12VDC power jacks.
Operating: 0º to 40º C. Storage:-10º to 70º C.
Humidity: up to 95% non-condensing.
Black. ABS fire retardant plastic
Tx: 4.5” x 3.0” x 1.25” (11.4 cm x 7.6 cm x 3.2cm)
Rx: 2.4” x 2.25” x 1.0” (6.1 x 5.5 x 2.5 cm) plus 6” cable lead
2 lbs, 0.9 Kg
FCC/CE, RoHS
Two (2) years
500140: Active VGA Balun II Kit (Rev C)
500141: Active VGA Balun II, Transmitter (Source), No PSU
500142: Active VGA Balun II, Receiver (Display), No PSU (Rev C)
500144: Power Supply 100-240V/12VDC/.5A for 500141 or 500142
Active VGA Balun II Kit
500140, 500142, 500144
