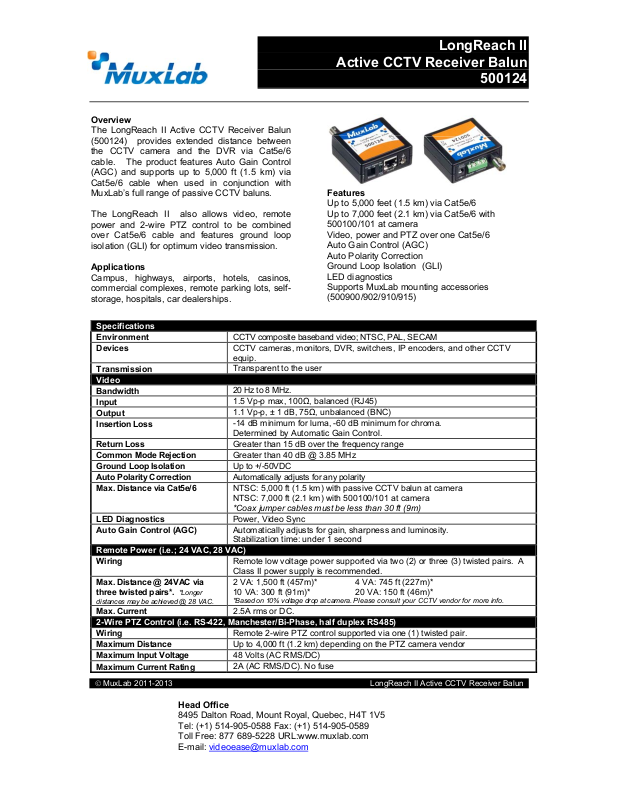

MuxLab 500124 Specsheet

LongReach II

Active CCTV Receiver Balun

500124

Overview

The LongReach II Active CCTV Receiver Balun
(500124) provides extended distance between
the CCTV camera and the DVR via Cat5e/6
cable. The product features Auto Gain Control
(AGC) and supports up to 5,000 ft (1.5 km) via
Cat5e/6 cable when used in conjunction with
MuxLab’s full range of passive CCTV baluns.

Features

Up to 5,000 feet (1.5 km) via Cat5e/6
The LongReach II also allows video, remote
power and 2-wire PTZ control to be combined
over Cat5e/6 cable and features ground loop
isolation (GLI) for optimum video transmission.

Up to 7,000 feet (2.1 km) via Cat5e/6 with

500100/101 at camera

Video, power and PTZ over one Cat5e/6

Auto Gain Control (AGC)

Auto Polarity Correction

Applications

Campus, highways, airports, hotels, casinos,
commercial complexes, remote parking lots, self­storage, hospitals, car dealerships.

Specifications

Environment
Devices

Transmission

Video

Bandwidth
Input
Output
Insertion Loss

Return Loss
Common Mode Rejection
Ground Loop Isolation
Auto Polarity Correction
Max. Distance via Cat5e/6

LED Diagnostics
Auto Gain Control (AGC)

Remote Power (i.e.; 24 VAC, 28 VAC)

Wiring

Max. Distance @ 24VAC via
three twisted pairs*.

distances may be achieved @ 28 VAC.

Max. Current

2-Wire PTZ Control (i.e. RS-422, Manchester/Bi-Phase, half duplex RS485)

Wiring
Maximum Distance
Maximum Input Voltage
Maximum Current Rating

 MuxLab 2011-2013 LongReach II Active CCTV Receiver Balun

*Longer

CCTV composite baseband video; NTSC, PAL, SECAM
CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV

equip.
Transparent to the user

20 Hz to 8 MHz.

1.5 Vp-p max, 100Ω, balanced (RJ45)

1.1 Vp-p, ± 1 dB, 75Ω, unbalanced (BNC)

-14 dB minimum for luma, -60 dB minimum for chroma.
Determined by Automatic Gain Control.
Greater than 15 dB over the frequency range

Greater than 40 dB @ 3.85 MHz
Up to +/-50VDC
Automatically adjusts for any polarity
NTSC: 5,000 ft (1.5 km) with passive CCTV balun at camera

NTSC: 7,000 ft (2.1 km) with 500100/101 at camera

*Coax jumper cables must be less than 30 ft (9m)

Power, Video Sync
Automatically adjusts for gain, sharpness and luminosity.

Stabilization time: under 1 second

Remote low voltage power supported via two (2) or three (3) twisted pairs. A
Class II power supply is recommended.
2 VA: 1,500 ft (457m)* 4 VA: 745 ft (227m)*
10 VA: 300 ft (91m)* 20 VA: 150 ft (46m)*

*Based on 10% voltage drop at camera. Please consult your CCTV vendor for more info.

2.5A rms or DC.

Remote 2-wire PTZ control supported via one (1) twisted pair.
Up to 4,000 ft (1.2 km) depending on the PTZ camera vendor
48 Volts (AC RMS/DC)
2A (AC RMS/DC). No fuse

Ground Loop Isolation (GLI)

LED diagnostics

Supports MuxLab mounting accessories

(500900/902/910/915)

Head Office

8495 Dalton Road, Mount Royal, Quebec, H4T 1V5
Tel: [phone] Fax: [phone]
Toll Free: 877 689-5228 URL:www.muxlab.com
E-mail: [e-mail]

LongReach II

Active CCTV Receiver Balun

500124

Specifications (Cont’d)
Mechanical & Environmental

Cable – UTP

Cable – Coax
Mode Switch

RJ45 Pin Configuration* Signal 500022 Mode 500024/500029

*Reverse polarity sensitive if 12DC
camera is used

Connectors

Compatible Baluns
Power Supply (included)

Transient Voltage Protection

AC/DC power surge protection
Fuse Protection
Temperature
Enclosure
Dimensions
Weight
Regulatory
Warranty
Order Information

24 gauge or lower solid copper twisted pair wire. Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000 ft at 1 MHz

Impedance: 75 Ω at 1 MHz. (RG59/U)
Select between Power-Thru (500024/500029) and Pass-Thru (500022) Mode

Note: When used with the 500000, 500000R, 500009, or 500100/101 the Mode
switch may be in either position since only video is being transmitted.

Power A (+) * 1, 3 1, 3, 5

Power B (-) * 2, 6 2, 4, 6
Control (+) 4 NA
Control (-) 5 NA
Video BNC Center (Tip) 7 [T] same as 500000R 7 [T] same as 500000R
Video BNC Ground (Ring) 8 [R] same as 500000R 8 [R] same as 500000R

Video: BNC-F Remote Power: 2-pole screw terminal block
PTZ: 2-pole screw terminal block Cat5e/6 Link: RJ45S
Power connector Gnd screw terminal
500000, 500000R, 500009, 500022, 500024, 500029, 500100/101

5VDC/6W/100mA max. Floating +/- 20%. 150mA max. Interchangeable
blades
± 2.5V on the video line
± 48V on the power and control lines
Above 34VAC RMS or +/- 48 VDC.

Auto-resettable fuse on 5VDC input and Power A (+) upon power cycling.
Operating: 0° to 55°C. Storage:-20° to 85°C. Humidity: up to 95%
ABS fire retardant plastic

2.40” x 2.25” x 1.0” (6.1 x 5.7 x 2.54 cm)
3 oz (85 gms)
FCC and CE.
2 years
500124 LongReach II Active CCTV Receiver Balun

Typical Applications

 MuxLab 2011-2013 LongReach II Active CCTV Receiver Balun
