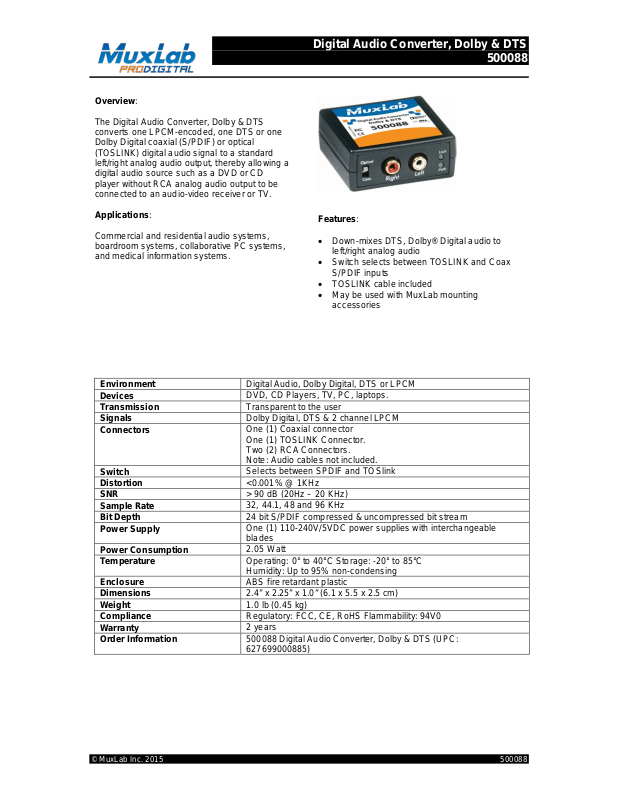

MuxLab 500088 Quick Start Manual
Overview:
Environment
Digital Audio, Dolby Digital, DTS or LPCM
Devices
DVD, CD Players, TV, PC, laptops.
Transmission
Transparent to the user
Signals
Dolby Digital, DTS & 2 channel LPCM
Connectors
One (1) Coaxial connector
Note: Audio cables not included.
Switch
Selects between SPDIF and TOSlink
Distortion
<0.001% @ 1KHz
SNR
> 90 dB (20Hz – 20 KHz)
Sample Rate
32, 44.1, 48 and 96 KHz
Bit Depth
24 bit S/PDIF compressed & uncompressed bit stream
Power Supply
One (1) 110-240V/5VDC power supplies with interchangeable
blades
Power Consumption
2.05 Watt
Temperature
Operating: 0° to 40°C Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Enclosure
ABS fire retardant plastic
Dimensions
2.4” x 2.25” x 1.0” (6.1 x 5.5 x 2.5 cm)
Weight
1.0 lb (0.45 kg)
Compliance
Regulatory: FCC, CE, RoHS Flammability: 94V0
Warranty
2 years
Order Information
500088 Digital Audio Converter, Dolby & DTS (UPC:
627699000885)
The Digital Audio Converter, Dolby & DTS
converts one LPCM-encoded, one DTS or one
Dolby Digital coaxial (S/PDIF) or optical
(TOSLINK) digital audio signal to a standard
left/right analog audio output, thereby allowing a
digital audio source such as a DVD or CD
player without RCA analog audio output to be
connected to an audio-video receiver or TV.
Applications:
Commercial and residential audio systems,
boardroom systems, collaborative PC systems,
and medical information systems.
Digital Audio Converter, Dolby & DTS
500088
Features:
• Down-mixes DTS, Dolby® Digital audio to
left/right analog audio
• Switch selects between TOSLINK and Coax
S/PDIF inputs
• TOSLINK cable incl uded
• May be used with MuxLab mounting
accessories
One (1) TOSLINK Connector.
Two (2) RCA Connectors.
© MuxLab Inc. 2015 500088
Product Photos:
Typical Application:
Digital Audio Converter, Dolby & DTS
500088
© MuxLab Inc. 2015 500088
MuxLab Inc. | 8495 Dalton Road, Mount Royal, Quebec, Canada, H4T 1V5
Tel: (514) 905 0588 | Fax: (514) 905 0589 | Toll Free:1 877 689-5228
E-mail: videoease@muxlab.com | www.muxlab.com
