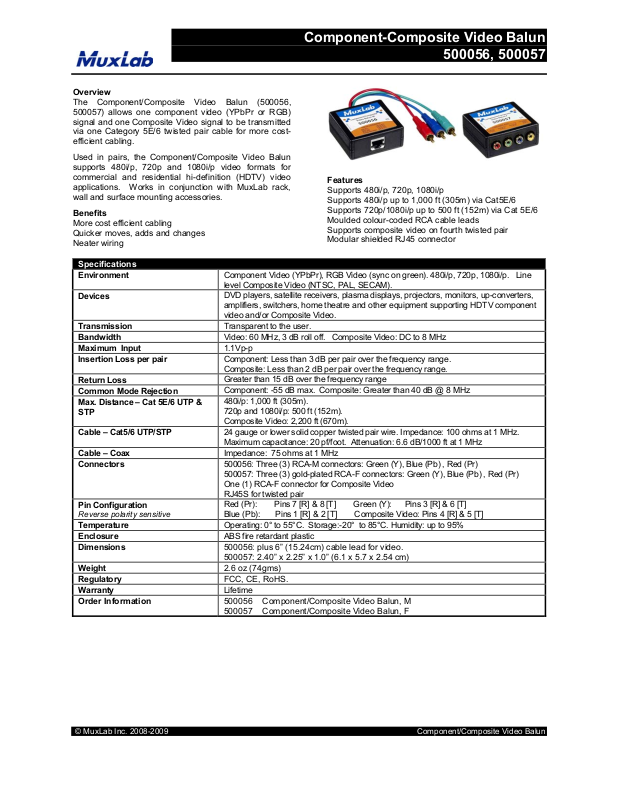

MuxLab 500056, 500057 Specsheet

Overview

The Component/Composite Video Balun (500056,

500057) allows one component video (YPbPr or RGB)
signal and one Composite Video signal to be transmitted
via one Category 5E/6 twisted pair cable for more cost­efficient cabling.

Used in pairs, the Component/Composite Video Balun
supports 480i/p, 720p and 1080i/p video formats for
commercial and residential hi-definition (HDTV) video
applications. Works in conjunction with MuxLab rack,
wall and surface mounting accessories.

Benefits

More cost efficient cabling
Quicker moves, adds and changes
Neater wiring

Specifications

Environment

Devices

Transmission
Bandwidth
Maximum Input
Insertion Loss per pair

Return Loss
Common Mode Rejection
Max. Distance – Cat 5E/6 UTP &
STP

Cable – Cat5/6 UTP/STP

Cable – Coax
Connectors

Pin Configuration

Reverse polarity sensitive

Temperature
Enclosure
Dimensions

Weight
Regulatory
Warranty
Order Information

Component Video (YPbPr), RGB Video (sync on green). 480i/p, 720p, 1080i/p. Line
level Composite Video (NTSC, PAL, SECAM).
DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters,
amplifiers, switchers, home theatre and other equipment supporting HDTV component
video and/or Composite Video.
Transparent to the user.

Video: 60 MHz, 3 dB roll off. Composite Video: DC to 8 MHz

1.1Vp-p
Component: Less than 3 dB per pair over the frequency range.

Composite: Less than 2 dB per pair over the frequency range.
Greater than 15 dB over the frequency range
Component: -55 dB max. Composite: Greater than 40 dB @ 8 MHz
480i/p: 1,000 ft (305m).
720p and 1080i/p: 500 ft (152m).
Composite Video: 2,200 ft (670m).
24 gauge or lower solid copper twisted pair wire. Impedance: 100 ohms at 1 MHz.
Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000 ft at 1 MHz
Impedance: 75 ohms at 1 MHz
500056: Three (3) RCA-M connectors: Green (Y), Blue (Pb) , Red (Pr)
500057: Three (3) gold-plated RCA-F connectors: Green (Y), Blue (Pb) , Red (Pr)
One (1) RCA-F connector for Composite Video
RJ45S for twisted pair
Red (Pr): Pins 7 [R] & 8 [T] Green (Y): Pins 3 [R] & 6 [T]
Blue (Pb): Pins 1 [R] & 2 [T] Composite Video: Pins 4 [R] & 5 [T]
Operating: 0° to 55°C. Storage:-20° to 85°C. Humidity: up to 95%
ABS fire retardant plastic
500056: plus 6” (15.24cm) cable lead for video.
500057: 2.40” x 2.25” x 1.0” (6.1 x 5.7 x 2.54 cm)

2.6 oz (74gms)
FCC, CE, RoHS.
Lifetime
500056 Component/Composite Video Balun, M

500057 Component/Composite Video Balun, F

Component-Composite Video Balun

500056, 500057

Features

Supports 480i/p, 720p, 1080i/p
Supports 480i/p up to 1,000 ft (305m) via Cat5E/6
Supports 720p/1080i/p up to 500 ft (152m) via Cat 5E/6
Moulded colour-coded RCA cable leads
Supports composite video on fourth twisted pair
Modular shielded RJ45 connector

© MuxLab Inc. 2008-2009 Component/Composite Video Balun

Component-Composite Video Balun

500056, 500057

________________________________________________________________________________________

Typical Application
