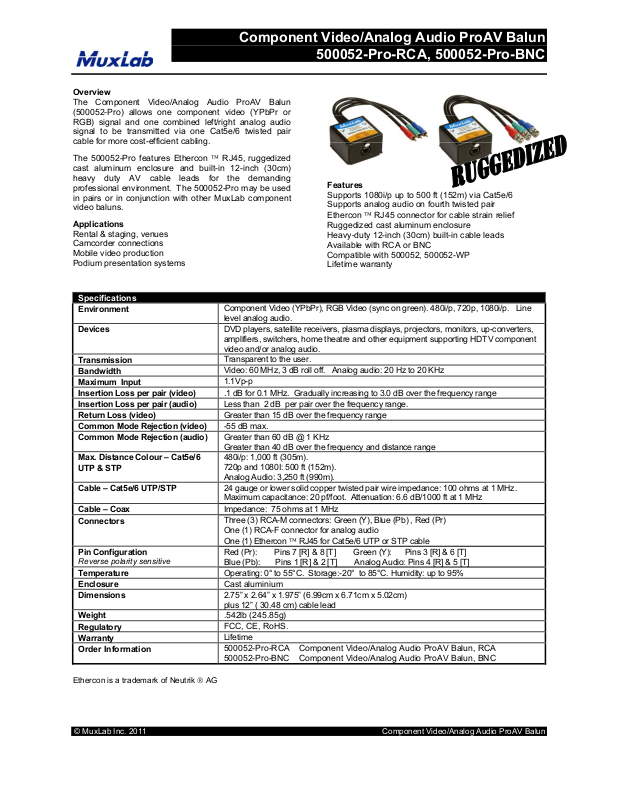

MuxLab 500052-Pro-BNC Specsheet
Component Video/Analog Audio ProAV Balun
Overview
The Component Video/Analog Audio ProAV Balun
(500052-Pro) allows one component video (YPbPr or
RGB) signal and one combined left/right analog audio
signal to be transmitted via one Cat5e/6 twisted pair
cable for more cost-efficient cabling.
The 500052-Pro features Ethercon RJ45, ruggedized
cast aluminum enclosure and built-in 12-inch (30cm)
heavy duty AV cable leads for the demanding
professional environment. The 500052-Pro may be used
in pairs or in conjunction with other MuxLab component
video baluns.
Applications
Rental & staging, venues
Camcorder connections
Mobile video production
Podium presentation systems
Specifications
Environment
Devices
Transmission
Bandwidth
Maximum Input
Insertion Loss per pair (video)
Insertion Loss per pair (audio)
Return Loss (video)
Common Mode Rejection (video)
Common Mode Rejection (audio)
Max. Distance Colour – Cat5e/6
UTP & STP
Cable – Cat5e/6 UTP/STP
Cable – Coax
Connectors
Pin Configuration
Reverse polarity sensitive
Temperature
Enclosure
Dimensions
Weight
Regulatory
Warranty
Order Information
Component Video (YPbPr), RGB Video (sync on green). 480i/p, 720p, 1080i/p. Line
level analog audio.
DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters,
amplifiers, switchers, home theatre and other equipment supporting HDTV component
video and/or analog audio.
Transparent to the user.
Video: 60 MHz, 3 dB roll off. Analog audio: 20 Hz to 20 KHz
1.1Vp-p
.1 dB for 0.1 MHz. Gradually increasing to 3.0 dB over the frequency range
Less than 2 dB per pair over the frequency range.
Greater than 15 dB over the frequency range
-55 dB max.
Greater than 60 dB @ 1 KHz
Greater than 40 dB over the frequency and distance range
480i/p: 1,000 ft (305m).
720p and 1080I: 500 ft (152m).
Analog Audio: 3,250 ft (990m).
24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz.
Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000 ft at 1 MHz
Impedance: 75 ohms at 1 MHz
Three (3) RCA-M connectors: Green (Y), Blue (Pb) , Red (Pr)
One (1) RCA-F connector for analog audio
One (1) Ethercon RJ45 for Cat5e/6 UTP or STP cable
Red (Pr): Pins 7 [R] & 8 [T] Green (Y): Pins 3 [R] & 6 [T]
Blue (Pb): Pins 1 [R] & 2 [T] Analog Audio: Pins 4 [R] & 5 [T]
Operating: 0° to 55°C. Storage:-20° to 85°C. Humidity: up to 95%
Cast aluminium
2.75” x 2.64” x 1.975” (6.99cm x 6.71cm x 5.02cm)
plus 12” ( 30.48 cm) cable lead
.542lb (245.85g)
FCC, CE, RoHS.
Lifetime
500052-Pro-RCA Component Video/Analog Audio ProAV Balun, RCA
500052-Pro-BNC Component Video/Analog Audio ProAV Balun, BNC
500052-Pro-RCA, 500052-Pro-BNC
Features
Supports 1080i/p up to 500 ft (152m) via Cat5e/6
Supports analog audio on fourth twisted pair
Ethercon RJ45 connector for cable strain relief
Ruggedized cast aluminum enclosure
Heavy-duty 12-inch (30cm) built-in cable leads
Available with RCA or BNC
Compatible with 500052, 500052-WP
Lifetime warranty
Ethercon is a trademark of Neutrik AG
© MuxLab Inc. 2011 Component Video/Analog Audio ProAV Balun
Component Video/Analog Audio ProAV Balun
500052-Pro-RCA, 500052-Pro-BNC
________________________________________________________________________________________
Typical Application
Rear view
© MuxLab Inc. 2011 Component Video/Analog Audio ProAV Balun
