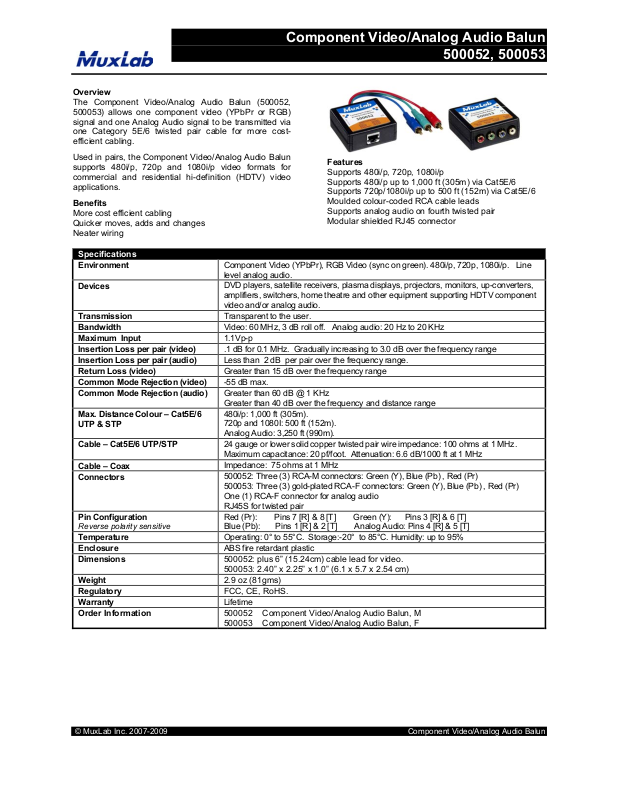

MuxLab 500052, 500053 Specsheet

Overview

The Component Video/Analog Audio Balun (500052,

500053) allows one component video (YPbPr or RGB)
signal and one Analog Audio signal to be transmitted via
one Category 5E/6 twisted pair cable for more cost­efficient cabling.

Used in pairs, the Component Video/Analog Audio Balun
supports 480i/p, 720p and 1080i/p video formats for
commercial and residential hi-definition (HDTV) video
applications.

Benefits

More cost efficient cabling
Quicker moves, adds and changes
Neater wiring

Specifications

Environment

Devices

Transmission
Bandwidth
Maximum Input
Insertion Loss per pair (video)
Insertion Loss per pair (audio)
Return Loss (video)
Common Mode Rejection (video)
Common Mode Rejection (audio)

Max. Distance Colour – Cat5E/6
UTP & STP

Cable – Cat5E/6 UTP/STP

Cable – Coax
Connectors

Pin Configuration

Reverse polarity sensitive

Temperature
Enclosure
Dimensions

Weight
Regulatory
Warranty
Order Information

Component Video (YPbPr), RGB Video (sync on green). 480i/p, 720p, 1080i/p. Line
level analog audio.
DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters,
amplifiers, switchers, home theatre and other equipment supporting HDTV component
video and/or analog audio.
Transparent to the user.

Video: 60 MHz, 3 dB roll off. Analog audio: 20 Hz to 20 KHz

1.1Vp-p
.1 dB for 0.1 MHz. Gradually increasing to 3.0 dB over the frequency range
Less than 2 dB per pair over the frequency range.
Greater than 15 dB over the frequency range

-55 dB max.
Greater than 60 dB @ 1 KHz

Greater than 40 dB over the frequency and distance range
480i/p: 1,000 ft (305m).
720p and 1080I: 500 ft (152m).
Analog Audio: 3,250 ft (990m).
24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz.
Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000 ft at 1 MHz
Impedance: 75 ohms at 1 MHz
500052: Three (3) RCA-M connectors: Green (Y), Blue (Pb) , Red (Pr)
500053: Three (3) gold-plated RCA-F connectors: Green (Y), Blue (Pb) , Red (Pr)
One (1) RCA-F connector for analog audio
RJ45S for twisted pair
Red (Pr): Pins 7 [R] & 8 [T] Green (Y): Pins 3 [R] & 6 [T]
Blue (Pb): Pins 1 [R] & 2 [T] Analog Audio: Pins 4 [R] & 5 [T]
Operating: 0° to 55°C. Storage:-20° to 85°C. Humidity: up to 95%
ABS fire retardant plastic
500052: plus 6” (15.24cm) cable lead for video.
500053: 2.40” x 2.25” x 1.0” (6.1 x 5.7 x 2.54 cm)

2.9 oz (81gms)
FCC, CE, RoHS.
Lifetime
500052 Component Video/Analog Audio Balun, M

500053 Component Video/Analog Audio Balun, F

Component Video/Analog Audio Balun

500052, 500053

Features

Supports 480i/p, 720p, 1080i/p
Supports 480i/p up to 1,000 ft (305m) via Cat5E/6
Supports 720p/1080i/p up to 500 ft (152m) via Cat5E/6
Moulded colour-coded RCA cable leads
Supports analog audio on fourth twisted pair
Modular shielded RJ45 connector
