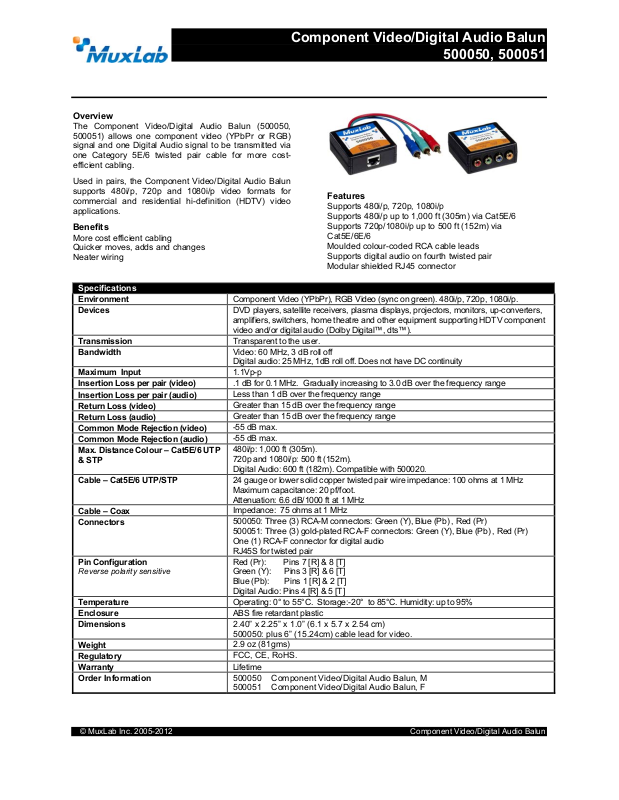

MuxLab 500050, 500051 Specsheet

Overview

The Component Video/Digital Audio Balun (500050,

500051) allows one component video (YPbPr or RGB)
signal and one Digital Audio signal to be transmitted via
one Category 5E/6 twisted pair cable for more cost­efficient cabling.

Used in pairs, the Component Video/Digital Audio Balun
supports 480i/p, 720p and 1080i/p video formats for
commercial and residential hi-definition (HDTV) video
applications.

Benefits

More cost efficient cabling
Quicker moves, adds and changes
Neater wiring

Specifications

Environment
Devices

Transmission
Bandwidth

Maximum Input
Insertion Loss per pair (video)
Insertion Loss per pair (audio)
Return Loss (video)
Return Loss (audio)
Common Mode Rejection (video)
Common Mode Rejection (audio)
Max. Distance Colour – Cat5E/6 UTP
& STP

Cable – Cat5E/6 UTP/STP

Cable – Coax
Connectors

Pin Configuration

Reverse polarity sensitive

Temperature
Enclosure
Dimensions

Weight
Regulatory
Warranty
Order Information

Component Video (YPbPr), RGB Video (sync on green). 480i/p, 720p, 1080i/p.
DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters,

amplifiers, switchers, home theatre and other equipment supporting HDTV component
video and/or digital audio (Dolby Digital™, dts™).
Transparent to the user.

Video: 60 MHz, 3 dB roll off
Digital audio: 25 MHz, 1dB roll off. Does not have DC continuity

1.1Vp-p
.1 dB for 0.1 MHz. Gradually increasing to 3.0 dB over the frequency range
Less than 1 dB over the frequency range
Greater than 15 dB over the frequency range
Greater than 15 dB over the frequency range

-55 dB max.

-55 dB max.
480i/p: 1,000 ft (305m).

720p and 1080i/p: 500 ft (152m).
Digital Audio: 600 ft (182m). Compatible with 500020.
24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot.
Attenuation: 6.6 dB/1000 ft at 1 MHz
Impedance: 75 ohms at 1 MHz

500050: Three (3) RCA-M connectors: Green (Y), Blue (Pb) , Red (Pr)
500051: Three (3) gold-plated RCA-F connectors: Green (Y), Blue (Pb) , Red (Pr)
One (1) RCA-F connector for digital audio
RJ45S for twisted pair
Red (Pr): Pins 7 [R] & 8 [T]
Green (Y): Pins 3 [R] & 6 [T]
Blue (Pb): Pins 1 [R] & 2 [T]
Digital Audio: Pins 4 [R] & 5 [T]
Operating: 0° to 55°C. Storage:-20° to 85°C. Humidity: up to 95%

ABS fire retardant plastic

2.40” x 2.25” x 1.0” (6.1 x 5.7 x 2.54 cm)
500050: plus 6” (15.24cm) cable lead for video.

2.9 oz (81gms)
FCC, CE, RoHS.
Lifetime
500050 Component Video/Digital Audio Balun, M

500051 Component Video/Digital Audio Balun, F

Component Video/Digital Audio Balun

500050, 500051

Features

Supports 480i/p, 720p, 1080i/p
Supports 480i/p up to 1,000 ft (305m) via Cat5E/6
Supports 720p/1080i/p up to 500 ft (152m) via
Cat5E/6E/6
Moulded colour-coded RCA cable leads
Supports digital audio on fourth twisted pair
Modular shielded RJ45 connector

© MuxLab Inc. 2005-2012 Component Video/Digital Audio Balun

Component Video/Digital Audio Balun

500050, 500051

____________________________________________________________________________________________

Typical Application

© MuxLab Inc. 2005-2009 Component Video/Digital Audio Balun
