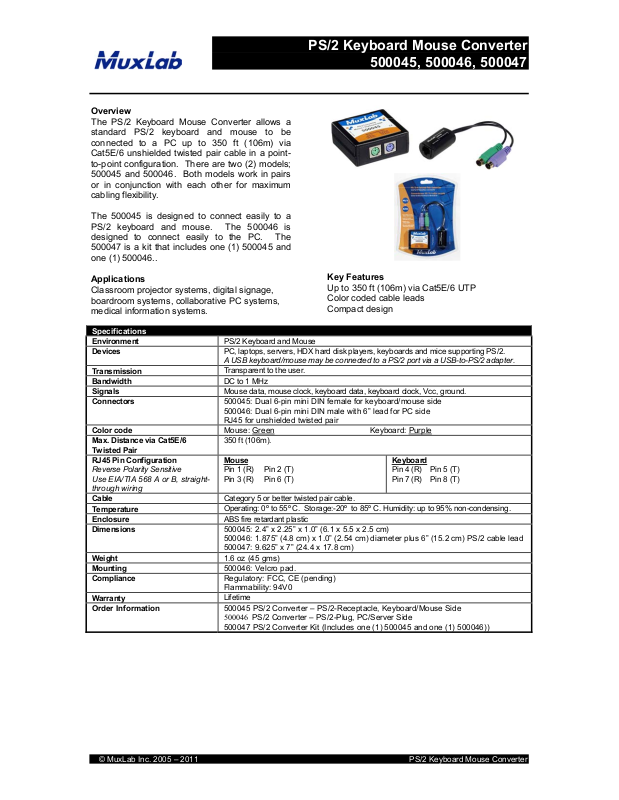

MuxLab 500045 Specsheet

Overview

The PS/2 Keyboard Mouse Converter allows a
standard PS/2 keyboard and mouse to be
connected to a PC up to 350 ft (106m) via
Cat5E/6 unshielded twisted pair cable in a point­to-point configuration. There are two (2) models;
500045 and 500046. Both models work in pairs
or in conjunction with each other for maximum
cabling flexibility.

The 500045 is designed to connect easily to a
PS/2 keyboard and mouse. The 500046 is
designed to connect easily to the PC. The
500047 is a kit that includes one (1) 500045 and
one (1) 500046..

PS/2 Keyboard Mouse Converter

500045, 500046, 500047

Applications

Classroom projector systems, digital signage,
boardroom systems, collaborative PC systems,
medical information systems.

Specifications

Environment
Devices

Transmission
Bandwidth
Signals
Connectors

Color code
Max. Distance via Cat5E/6
Twisted Pair
RJ45 Pin Configuration

Reverse Polarity Sensitive
Use EIA/TIA 568 A or B, straight­through wiring

Cable
Temperature
Enclosure
Dimensions

Weight
Mounting
Compliance

Warranty
Order Information

PS/2 Keyboard and Mouse
PC, laptops, servers, HDX hard disk players, keyboards and mice supporting PS/2.

A USB keyboard/mouse may be connected to a PS/2 port via a USB-to-PS/2 adapter.

Transparent to the user.
DC to 1 MHz
Mouse data, mouse clock, keyboard data, keyboard clock, Vcc, ground.
500045: Dual 6-pin mini DIN female for keyboard/mouse side

500046: Dual 6-pin mini DIN male with 6” lead for PC side
RJ45 for unshielded twisted pair
Mouse: Green

350 ft (106m).

Mouse

Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)

Category 5 or better twisted pair cable.
Operating: 0º to 55º C. Storage:-20º to 85º C. Humidity: up to 95% non-condensing.
ABS fire retardant plastic
500045: 2.4” x 2.25” x 1.0” (6.1 x 5.5 x 2.5 cm)

500046: 1.875” (4.8 cm) x 1.0” (2.54 cm) diameter plus 6” (15.2 cm) PS/2 cable lead
500047: 9.625” x 7” (24.4 x 17.8 cm)

1.6 oz (45 gms)
500046: Velcro pad.
Regulatory: FCC, CE (pending)

Flammability: 94V0
Lifetime
500045 PS/2 Converter – PS/2-Receptacle, Keyboard/Mouse Side
500046 PS/2 Converter – PS/2-Plug, PC/Server Side
500047 PS/2 Converter Kit (Includes one (1) 500045 and one (1) 500046))

Key Features

Up to 350 ft (106m) via Cat5E/6 UTP
Color coded cable leads
Compact design

Keyboard: Purple

Keyboard

Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T)

© MuxLab Inc. 2005 – 2011 PS/2 Keyboard Mouse Converter

PS/2 Keyboard Mouse Converter

500045, 500046, 500047

__________________________________________________________________________________

Typical Application

© MuxLab Inc. 2005-2011 PS/2 Keyboard Mouse Converter
