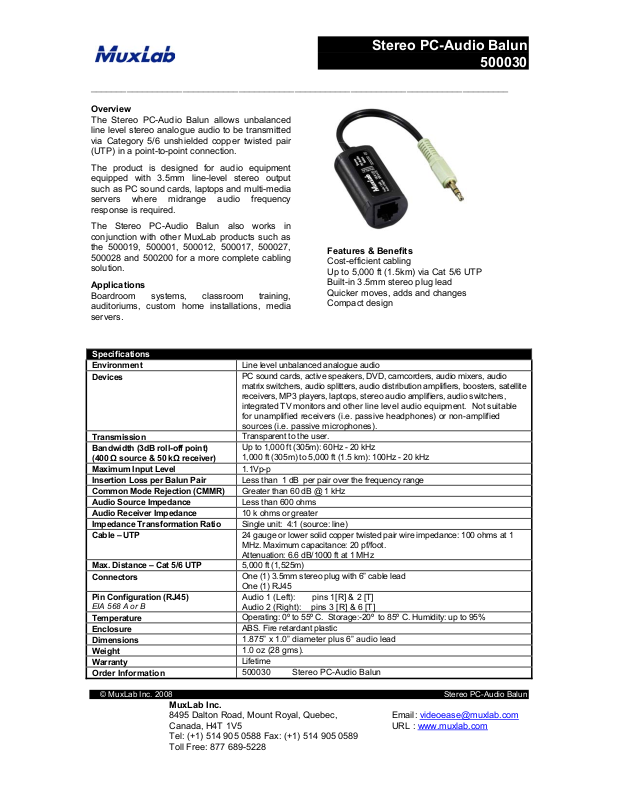

MuxLab 500030 Specsheet

Stereo PC-Audio Balun

500030

__________________________________________________________________________________

Overview

The Stereo PC-Audio Balun allows unbalanced
line level stereo analogue audio to be transmitted
via Category 5/6 unshielded copper twisted pair
(UTP) in a point-to-point connection.

The product is designed for audio equipment
equipped with 3.5mm line-level stereo output
such as PC sound cards, laptops and multi-media
servers where midrange audio frequency
response is required.

The Stereo PC-Audio Balun also works in
conjunction with other MuxLab products such as
the 500019, 500001, 500012, 500017, 500027,
500028 and 500200 for a more complete cabling
solution.

Applications

Boardroom systems, classroom training,
auditoriums, custom home installations, media
servers

.

Features & Benefits

Cost-efficient cabling
Up to 5,000 ft (1.5km) via Cat 5/6 UTP
Built-in 3.5mm stereo plug lead
Quicker moves, adds and changes
Compact design

Specifications

Environment
Devices

Transmission
Bandwidth (3dB roll-off point)
(400 Ω source & 50 kΩ receiver)
Maximum Input Level
Insertion Loss per Balun Pair
Common Mode Rejection (CMMR)
Audio Source Impedance
Audio Receiver Impedance
Impedance Transformation Ratio
Cable – UTP

Max. Distance – Cat 5/6 UTP
Connectors

Pin Configuration (RJ45)

EIA 568 A or B

Temperature
Enclosure
Dimensions
Weight
Warranty
Order Information

Line level unbalanced analogue audio
PC sound cards, active speakers, DVD, camcorders, audio mixers, audio

matrix switchers, audio splitters, audio distribution amplifiers, boosters, satellite
receivers, MP3 players, laptops, stereo audio amplifiers, audio switchers,
integrated TV monitors and other line level audio equipment. Not suitable
for unamplified receivers (i.e. passive headphones) or non-amplified
sources (i.e. passive microphones).
Transparent to the user.

Up to 1,000 ft (305m): 60Hz - 20 kHz
1,000 ft (305m) to 5,000 ft (1.5 km): 100Hz - 20 kHz

1.1Vp-p
Less than 1 dB per pair over the frequency range
Greater than 60 dB @ 1 kHz
Less than 600 ohms
10 k ohms or greater
Single unit: 4:1 (source: line)
24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1

MHz. Maximum capacitance: 20 pf/foot.
Attenuation: 6.6 dB/1000 ft at 1 MHz
5,000 ft (1,525m)

One (1) 3.5mm stereo plug with 6” cable lead
One (1) RJ45
Audio 1 (Left): pins 1[R] & 2 [T]
Audio 2 (Right): pins 3 [R] & 6 [T]
Operating: 0º to 55º C. Storage:-20º to 85º C. Humidity: up to 95%

ABS. Fire retardant plastic

1.875” x 1.0” diameter plus 6” audio lead

1.0 oz (28 gms).
Lifetime
500030 Stereo PC-Audio Balun

© MuxLab Inc. 2008 Stereo PC-Audio Balun

MuxLab Inc.

8495 Dalton Road, Mount Royal, Quebec,
Canada, H4T 1V5

Email: [e-mail]

URL : www.muxlab.com
Tel: [phone] Fax: [phone]
Toll Free: 877 689-5228

Stereo PC-Audio Balun

500030

__________________________________________________________________________________

Typical Application
