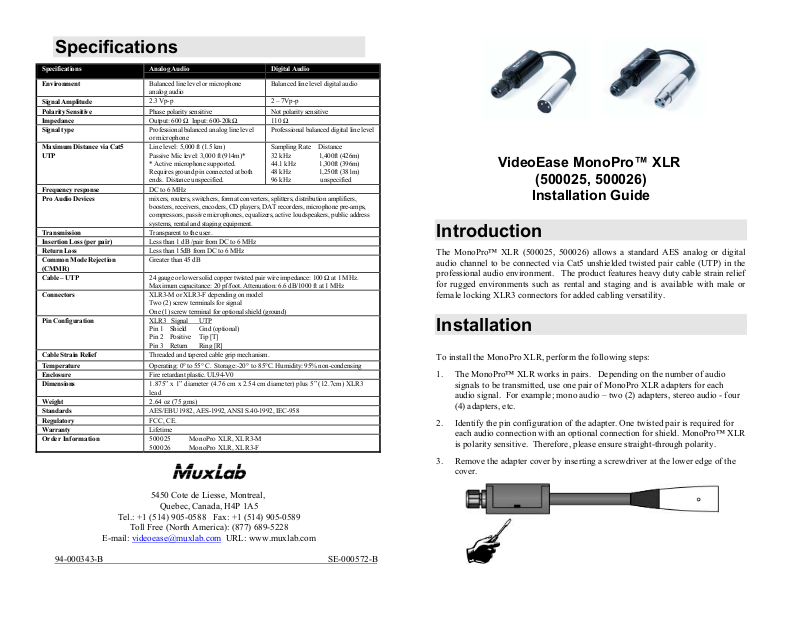

MuxLab 500025, 500026 Specifications

Specifications

Specifications Analog Audio Digital Audio

Environment

Signal Amplitude

Polarity Sensitive
Impedance
Signal type

Maximum Distance via Cat5
UTP

Frequency response
Pro Audio Devices

Transmission
Insertion Loss (per pair)
Return Loss
Common Mode Rejection
(CMMR)
Cable – UTP

Connectors

Pin Configuration

Cable Strain Relief

Temperature
Enclosure
Dimensions

Weight
Standards

Regulatory
Warranty
Order Information

Balanced line level or microphone
analog audio

2.3 Vp-p 2 – 7Vp-p

Phase polarity sensitive Not polarity sensitive
Output: 600 Ω Input: 600-20kΩ 110 Ω
Professional balanced analog line level
or microphone
Line level: 5,000 ft (1.5 km)
Passive Mic level: 3,000 ft (914m)*
* Active microphone supported.
Requires ground pin connected at both
ends. Distance unspecified.
DC to 6 MHz
mixers, routers, switchers, format converters, splitters, distribution amplifiers,
boosters, receivers, encoders, CD players, DAT recorders, microphone pre-amps,
compressors, passive microphones, equalizers, active loudspeakers, public address
systems, rental and staging equipment.
Transparent to the user.
Less than 1 dB /pair from DC to 6 MHz
Less than 15dB from DC to 6 MHz
Greater than 45 dB

24 gauge or lower solid copper twisted pair wire impedance: 100 Ω at 1 MHz.
Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000 ft at 1 MHz
XLR3-M or XLR3-F depending on model
Two (2) screw terminals for signal
One (1) screw terminal for optional shield (ground)
XLR3 Signal UTP
Pin 1 Shield Gnd (optional)
Pin 2 Positive Tip [T]
Pin 3 Return Ring [R]
Threaded and tapered cable grip mechanism.

Operating: 0° to 55° C. Storage:-20° to 85°C. Humidity: 95% non-condensing
Fire retardant plastic. UL94-V0

1.875” x 1” diameter (4.76 cm x 2.54 cm diameter) plus 5” (12.7cm) XLR3
lead

2.64 oz (75 gms)
AES/EBU 1982, AES-1992, ANSI S.40-1992, IEC-958

FCC, CE.
Lifetime
500025 MonoPro XLR, XLR3-M
500026 MonoPro XLR, XLR3-F

Balanced line level digital audio

Professional balanced digital line level

Sampling Rate Distance
32 kHz 1,400ft (426m)

44.1 kHz 1,300ft (396m)
48 kHz 1,250ft (381m)
96 kHz unspecified

VideoEase MonoPro™ XLR

(500025, 500026)

Installation Guide

Introduction

The MonoPro™ XLR (500025, 500026) allows a standard AES analog or digital
audio channel to be connected via Cat5 unshielded twisted pair cable (UTP) in the
professional audio environment. The product features heavy duty cable strain relief
for rugged environments such as rental and staging and is available with male or
female locking XLR3 connectors for added cabling versatility.

Installation

To install the MonoPro XLR, perform the following steps:

1. The MonoPro™ XLR works in pairs. Depending on the number of audio
signals to be transmitted, use one pair of MonoPro XLR adapters for each
audio signal. For example; mono audio – two (2) adapters, stereo audio - four
(4) adapters, etc.

2. Identify the pin configuration of the adapter. One twisted pair is required for
each audio connection with an optional connection for shield. MonoPro™ XLR
is polarity sensitive. Therefore, please ensure straight-through polarity.

3. Remove the adapter cover by inserting a screwdriver at the lower edge of the
cover.

5450 Cote de Liesse, Montreal,

Quebec, Canada, H4P 1A5

Tel.: [phone] Fax: [phone]

Toll Free (North America): [phone]

E-mail: [e-mail] URL: www.muxlab.com

94-000343-B SE-000572-B

4. Loosen the cable strain relief nut and feed the Cat5 cable through the opening
into the adapter.

5. Strip back about 1” of the cable jacket and expose about ¼” of copper wire at
the end of the appropriate wires.

6. Connect the UTP wires to the screw terminal blocks, respecting the wiring
polarity. If STP is used, connect the drain wire to the Ground terminal.

7. Tighten the cable strain relief nut at the end of the adapter.

8. Plug the MonoPro™ XLR into the XLR3 connector of the audio source
equipment.

9. Repeat steps 4 to 6 for the MonoPro XLR at the receiver side.

10. Plug the second MonoPro™ XLR into the XLR3 connector of the audio
receiver equipment at the remote side.

11. Complete the connection between the two adapters, using standard UTP cable,
connector blocks and modular wall outlets as required. The following diagram
shows a typical connection.

12. Power-on the audio equipment and check the audio quality. The audio should

Troubleshooting

The following table describes some of the symptoms, probable causes and possible
solutions in regard to the installation of the MonoPro XLR Balun. If you still
cannot diagnose the problem, please call MuxLab Customer Technical Support at
877-689-5228 (toll-free in North America) or [phone] (International).

Symptom Probable Causes Possible Solutions

Poor audio quality 1. EMI interference. Check that wiring is not too close to

2. Split pair Check if the UTP pairs are split and

No audio 1. Power-off. Check power supply.

2. Open contact Check wiring to ensure continuity

3. Defective balun Change MonoPro™ XLR for another

Audio weak 1. Distance exceeded Check DC loop resistance and verify if

2. Lower grade UTP cable
is introducing high
signal losses.

Missing digital
audio channels

Intermittent static
noise on one or
more digital audio
channels.

1. Cabling problem

between the
decoder/amp and the
audio speakers.

1. Distance exceeded or

unusual cable
attenuation

transformers and ballasts. Use STP if
necessary.

correct. Each signal pair must be
twisted.

pair.

distance spec is exceeded. Reduce cable
length or eliminate high-loss
components.

Use signal repeater for extended
distance.

Replace cable by higher grade.

Check audio speaker cabling.

Check cable distance and cable grade.

be clear within the maximum specified distances. The following diagram
shows a typical application.
