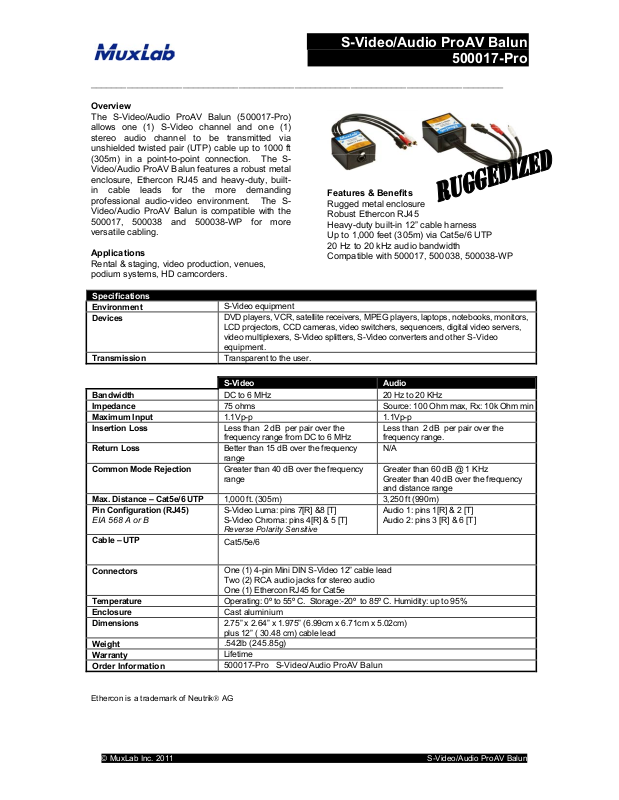

MuxLab 500017-Pro Specsheet
S-Video/Audio ProAV Balun
500017-Pro
_________________________________________________________________________________
Overview
The S-Video/Audio ProAV Balun (500017-Pro)
allows one (1) S-Video channel and one (1)
stereo audio channel to be transmitted via
unshielded twisted pair (UTP) cable up to 1000 ft
(305m) in a point-to-point connection. The SVideo/Audio ProAV Balun features a robust metal
enclosure, Ethercon RJ45 and heavy-duty, builtin cable leads for the more demanding
professional audio-video environment. The SVideo/Audio ProAV Balun is compatible with the
500017, 500038 and 500038-WP for more
versatile cabling.
Applications
Rental & staging, video production, venues,
podium systems, HD camcorders.
Specifications
Environment
Devices
Transmission
S-Video equipment
DVD players, VCR, satellite receivers, MPEG players, laptops, notebooks, monitors,
LCD projectors, CCD cameras, video switchers, sequencers, digital video servers,
video multiplexers, S-Video splitters, S-Video converters and other S-Video
equipment.
Transparent to the user.
Features & Benefits
Rugged metal enclosure
Robust Ethercon RJ45
Heavy-duty built-in 12” cable harness
Up to 1,000 feet (305m) via Cat5e/6 UTP
20 Hz to 20 kHz audio bandwidth
Compatible with 500017, 500038, 500038-WP
Bandwidth
Impedance
Maximum Input
Insertion Loss
Return Loss
Common Mode Rejection
Max. Distance – Cat5e/6 UTP
Pin Configuration (RJ45)
EIA 568 A or B
Cable – UTP
Connectors
Temperature
Enclosure
Dimensions
Weight
Warranty
Order Information
S-Video Audio
DC to 6 MHz 20 Hz to 20 KHz
75 ohms
1.1Vp-p 1.1Vp-p
Less than 2 dB per pair over the
frequency range from DC to 6 MHz
Better than 15 dB over the frequency
range
Greater than 40 dB over the frequency
range
1,000 ft. (305m) 3,250 ft (990m)
S-Video Luma: pins 7[R] &8 [T]
S-Video Chroma: pins 4[R] & 5 [T]
Reverse Polarity Sensitive
Cat5/5e/6
One (1) 4-pin Mini DIN S-Video 12” cable lead
Two (2) RCA audio jacks for stereo audio
One (1) Ethercon RJ45 for Cat5e
Operating: 0º to 55º C. Storage:-20º to 85º C. Humidity: up to 95%
Cast aluminium
2.75” x 2.64” x 1.975” (6.99cm x 6.71cm x 5.02cm)
plus 12” ( 30.48 cm) cable lead
.542lb (245.85g)
Lifetime
500017-Pro S-Video/Audio ProAV Balun
Source: 100 Ohm max, Rx: 10k Ohm min
Less than 2 dB per pair over the
frequency range.
N/A
Greater than 60 dB @ 1 KHz
Greater than 40 dB over the frequency
and distance range
Audio 1: pins 1[R] & 2 [T]
Audio 2: pins 3 [R] & 6 [T]
Ethercon is a trademark of Neutrik AG
© MuxLab Inc. 2011 S-Video/Audio ProAV Balun
