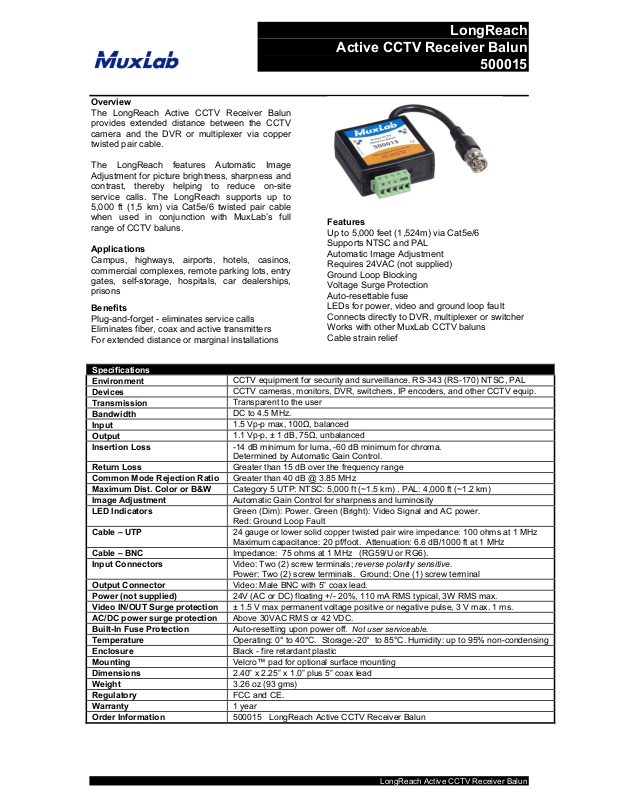

MuxLab 500015 Specsheet

Overview

The LongReach Active CCTV Receiver Balun
provides extended distance between the CCTV
camera and the DVR or multiplexer via copper
twisted pair cable.

The LongReach features Automatic Image
Adjustment for picture brightness, sharpness and
contrast, thereby helping to reduce on-site
service calls. The LongReach supports up to
5,000 ft (1,5 km) via Cat5e/6 twisted pair cable
when used in conjunction with MuxLab’s full
range of CCTV baluns.

Applications

Campus, highways, airports, hotels, casinos,
commercial complexes, remote parking lots, entry
gates, self-storage, hospitals, car dealerships,
prisons

Benefits

Plug-and-forget - eliminates service calls
Eliminates fiber, coax and active transmitters
For extended distance or marginal installations

LongReach

Active CCTV Receiver Balun

500015

Features

Up to 5,000 feet (1,524m) via Cat5e/6
Supports NTSC and PAL
Automatic Image Adjustment
Requires 24VAC (not supplied)
Ground Loop Blocking
Voltage Surge Protection
Auto-resettable fuse
LEDs for power, video and ground loop fault
Connects directly to DVR, multiplexer or switcher
Works with other MuxLab CCTV baluns
Cable strain relief

Specifications

Environment
Devices
Transmission
Bandwidth
Input
Output
Insertion Loss

Return Loss
Common Mode Rejection Ratio
Maximum Dist. Color or B&W
Image Adjustment
LED Indicators

Cable – UTP

Cable – BNC
Input Connectors

Output Connector
Power (not supplied)
Video IN/OUT Surge protection
AC/DC power surge protection
Built-In Fuse Protection
Temperature
Enclosure
Mounting
Dimensions
Weight
Regulatory
Warranty
Order Information

CCTV equipment for security and surveillance. RS-343 (RS-170) NTSC, PAL
CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equip.
Transparent to the user
DC to 4.5 MHz.

1.5 Vp-p max, 100Ω, balanced

1.1 Vp-p, ± 1 dB, 75Ω, unbalanced

-14 dB minimum for luma, -60 dB minimum for chroma.
Determined by Automatic Gain Control.
Greater than 15 dB over the frequency range

Greater than 40 dB @ 3.85 MHz
Category 5 UTP: NTSC: 5,000 ft (~1.5 km) . PAL: 4,000 ft (~1.2 km)
Automatic Gain Control for sharpness and luminosity
Green (Dim): Power. Green (Bright): Video Signal and AC power.

Red: Ground Loop Fault
24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000 ft at 1 MHz
Impedance: 75 ohms at 1 MHz (RG59/U or RG6).
Video: Two (2) screw terminals; reverse polarity sensitive.
Power: Two (2) screw terminals. Ground: One (1) screw terminal
Video: Male BNC with 5” coax lead.
24V (AC or DC) floating +/- 20%, 110 mA RMS typical, 3W RMS max.
± 1.5 V max permanent voltage positive or negative pulse, 3 V max. 1 ms.
Above 30VAC RMS or 42 VDC.
Auto-resetting upon power off.
Operating: 0° to 40°C. Storage:-20° to 85°C. Humidity: up to 95% non-condensing
Black - fire retardant plastic
Velcro™ pad for optional surface mounting

2.40” x 2.25” x 1.0” plus 5” coax lead

3.26 oz (93 gms)
FCC and CE.
1 year
500015 LongReach Active CCTV Receiver Balun

Not user serviceable.

LongReach Active CCTV Receiver Balun

LongReach

Active CCTV Receiver Balun

500015

_____________________________________________________________________________________

Typical Application

Camera

Passive CCTV Balun
(500009 or 500000)

Remote
Ground

VideoEase LongReach (500015)

Cat 5 Twisted Pair

Local

Ground

24VAC
