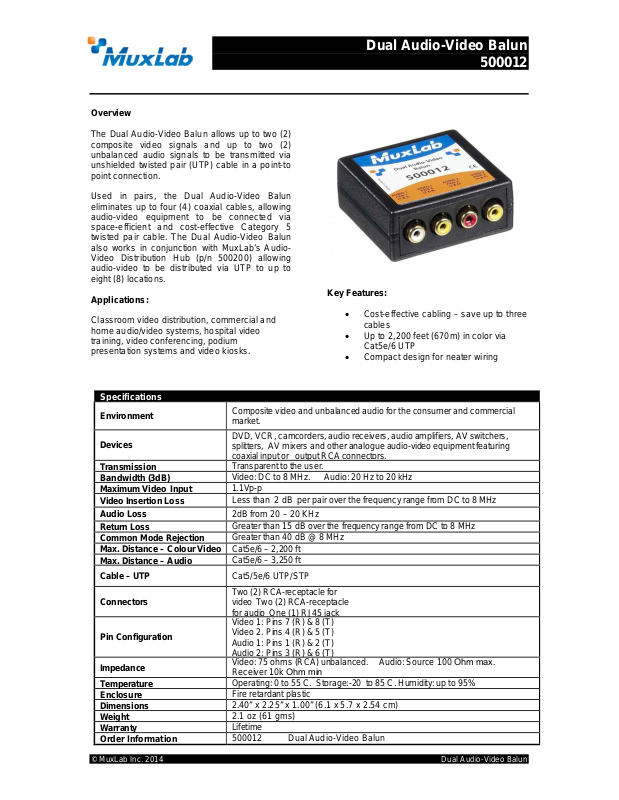

MuxLab 500012 Specsheet
Overview
Specifications
DVD, VCR, camcorders, audio receivers, audio amplifiers, AV switchers,
coaxial input or output RCA connectors.
Transmission
Transparent to the user.
Bandwidth (3dB)
Video: DC to 8 MHz. Audio: 20 Hz to 20 kHz
Maximum Video Input
1.1Vp-p
Video Insertion Loss
Less than 2 dB per pair over the frequency range from DC to 8 MHz
Audio Loss
2dB from 20 – 20 KHz
Return Loss
Greater than 15 dB over the frequency range from DC to 8 MHz
Common Mode Rejection
Greater than 40 dB @ 8 MHz
Max. Distance – Colour Video
Cat5e/6 – 2,200 ft
Max. Distance – Audio
Cat5e/6 – 3,250 ft
Two (2) RCA-receptacle for
for audio One (1) RJ45 jack
Video 1: Pins 7 (R) & 8 (T)
Audio 2: Pins 3 (R) & 6 (T)
Temperature
Operating: 0 to 55 C. Storage:-20 to 85 C. Humidity: up to 95%
Enclosure
Fire retardant plastic
Dimensions
2.40” x 2.25” x 1.00” (6.1 x 5.7 x 2.54 cm)
Weight
2.1 oz (61 gms)
Warranty
Lifetime
Order Information
500012 Dual Audio-Video Balun
The Dual Audio-Video Balun allows up to two (2)
composite video signals and up to two (2)
unbalanced audio signals to be transmitted via
unshielded twisted pair (UTP) cable in a point-to
point connection.
Used in pairs, the Dual Audio-Video Balun
eliminates up to four (4) coaxial cables, allowing
audio-video equipment to be connected via
space-efficient and cost-effective Category 5
twisted pair cable. The Dual Audio-Video Balun
also works in conjunction with MuxLab’s AudioVideo Distribution Hub (p/n 500200) allowing
audio-video to be distributed via UTP to up to
eight (8) locations.
Applications:
Classroom video distribution, commercial and
home audio/video systems, hospital video
training, video conferencing, podium
presentation systems and video kiosks.
Dual Audio-Video Balun
500012
Key Features:
• Cost-effective cabling – save up to three
cables
• Up to 2,200 feet (670m) in color via
Cat5e/6 UTP
• Compact design for neater wiring
Environment
Devices
Cable – UTP
Connectors
Pin Configuration
Impedance
Composite video and unbalanced audio for the consumer and commercial
market.
splitters, AV mixers and other analogue audio-video equipment featuring
Cat5/5e/6 UTP/STP
video Two (2) RCA-receptacle
Video 2. Pins 4 (R) & 5 (T)
Audio 1: Pins 1 (R) & 2 (T)
Video: 75 ohms (RCA) unbalanced. Audio: Source 100 Ohm max.
Receiver 10k Ohm min
© MuxLab Inc. 2014 Dual Audio-Video Balun
Dual Audio-Video Balun
500012
