The USB 2.0 high speed extender system enables USB 2.0 connectivity over Cat5e/6 at data
rates up to 480Mbps and extends true USB up to 100m (328ft) over standard Cat5 twisted pair
cable.
This unit is true plug and play, requires no additional software drivers, and is compatible with all
major operating systems such as Windows, Mac and Linux.
It is ideal for accessing remotely laser printers, scanners, web cameras, external hard drives,
CD/DVD burners, and flash drives. It supports a wide variety of USB extension applications
including security, industrial control, digital signage, scientific data acquisition and other
implementations of USB standards.
2. Features
True plug and play, no driver installation required.
Extends USB 2.0 high-speed and USB 1.1 (low-speed, full-speed) devices up to 100m
(328ft) over Cat. 5e/6 cable
Supports all USB device types: Control, Interrupt, Bulk and Isochronous at up to 480Mbps
Ideal for a wide variety of USB devices, printers, scanners, hard drives, audio devices,
touch screens, web cams, and game controllers.
Compatible with major operating systems: Windows 2000 / XP / Vista / 7 / 8 / 8.1, Mac OS,
Linux or higher
Aluminum enclosure and wall mountable
3. Specifications
Model No.
Connector
Output / Downstream RJ-45 Female USB Type A Female x 4

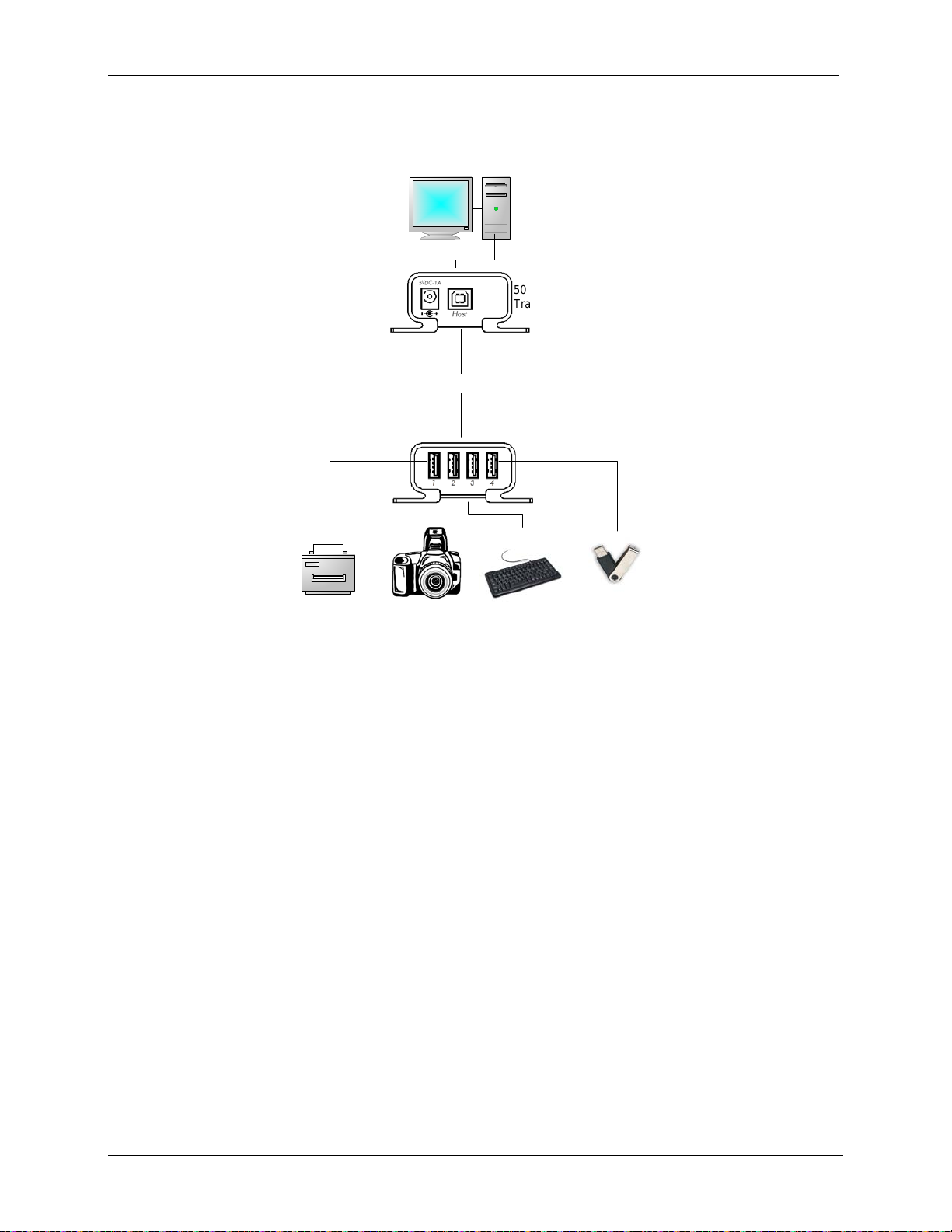

1. Determine where the host computer will be located and set up the computer.
2. Determine where you want to locate the remote USB device(s).
3. The extender supports a maximum distance or 328 ft (100m). Make sure that Cat5
cabling is installed, with Cat. 5 outlets located near both computer and USB devices.
The total length of this cable, including patch cords, must not be longer than 328 ft
(100m).

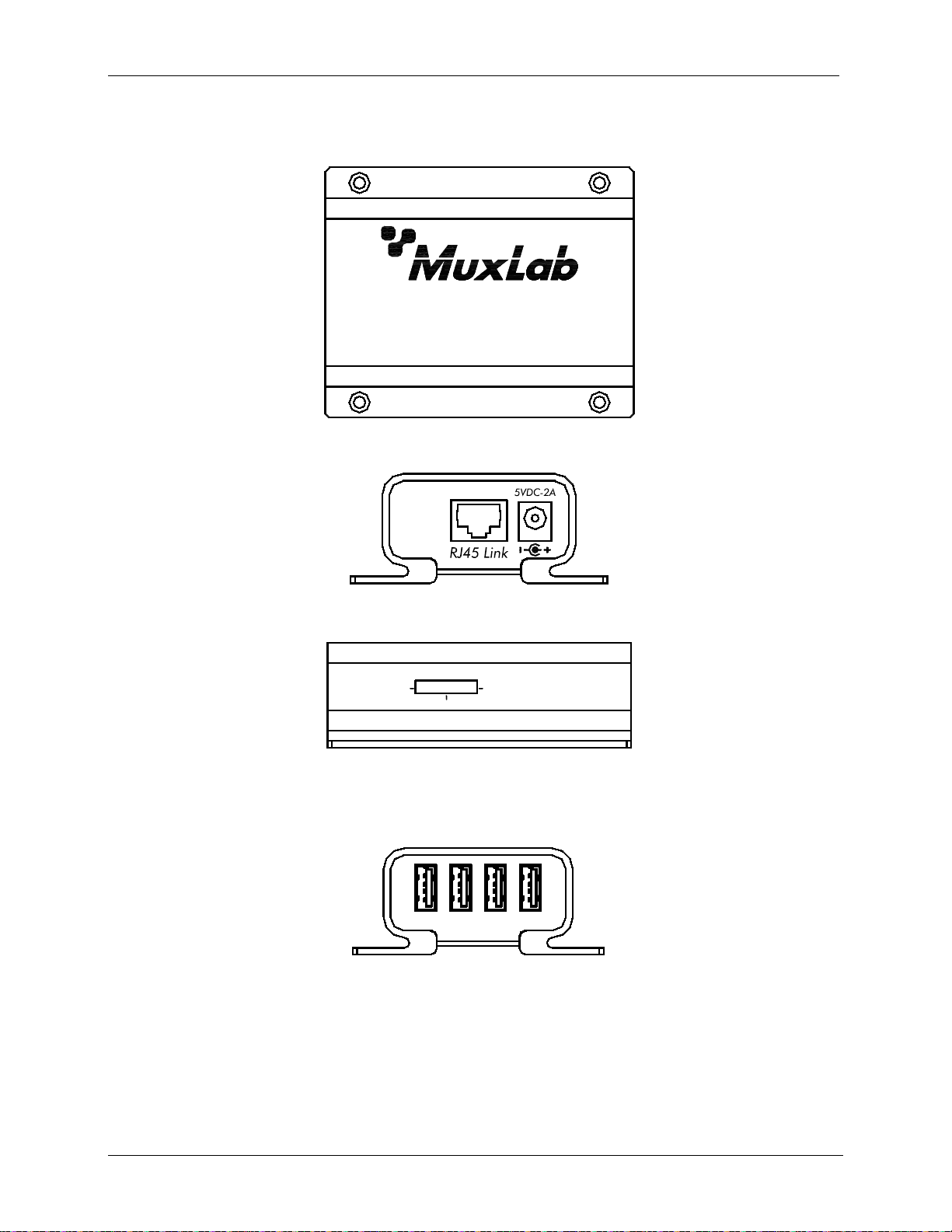

6.2.2. Installing the Transmitter (Local Unit)
1. Plug the supplied USB cable into the transmitter and connect to an available USB port
2. Plug the 5VDC, 1A power adapter into the transmitter, and AC plug into the power
3. The Red Power LED indicator lights on.
4. Plug one end of the Cat. 5 cable into the Link port (RJ-45) on the transmitter. (Please
Indicates that the 5VDC power adapter is plugged in.
Indicates that both the transmitter and the receiver are
powered on and the Cat5 cable is connected properly.
Link
Orange
Indicates that the USB ports are plugged in.
Take precaution selecting the Cat. 5 wires
wiring as shown.
6.2.3. Installing the Receiver (Remote Unit)
1. Plug the other end of the Cat. 5 cable into the Link port (RJ-45) on t he receiver.
2. Plug the 5VDC, 2A power adapter into the receiver, and AC plug into the power
receptacle.
Note: Make sure to plug the 5VDC 2A power adapter on the receiver side.
3. The Red Power LED indicator lights on.
4. Connect the USB devices through USB cables into the Receiver’s USB ports labeled 1
to 4 on receiver.
Status
Activity Green
6.3 Checking the Installation
1. Check the Activity (Green) and Link (Orange) LED indicators light on both the
transmitter and the receiver.
2. For Windows users (2000, XP, Vista, 7, 8, and 8.1), open Device Manager to confirm
the extender has been installed correctly. Expand the Entry and check the USB
controllers. If the extender is installed correctly, it should be listed as a “Generic USB
Hub.”
3. For Mac OS X users, open the System Profiler to confirm that the extender has been
installed correctly. In the left column under Hardware, select “USB” and check the r ight
panel. If the extender has been installed correctly, you should find it listed as a “Hub”
under the USB High-Speed Bus/USB Bus.
4. If the extender is not detected correctly or fails to detect, go to the Troubleshooting
section of this manual.

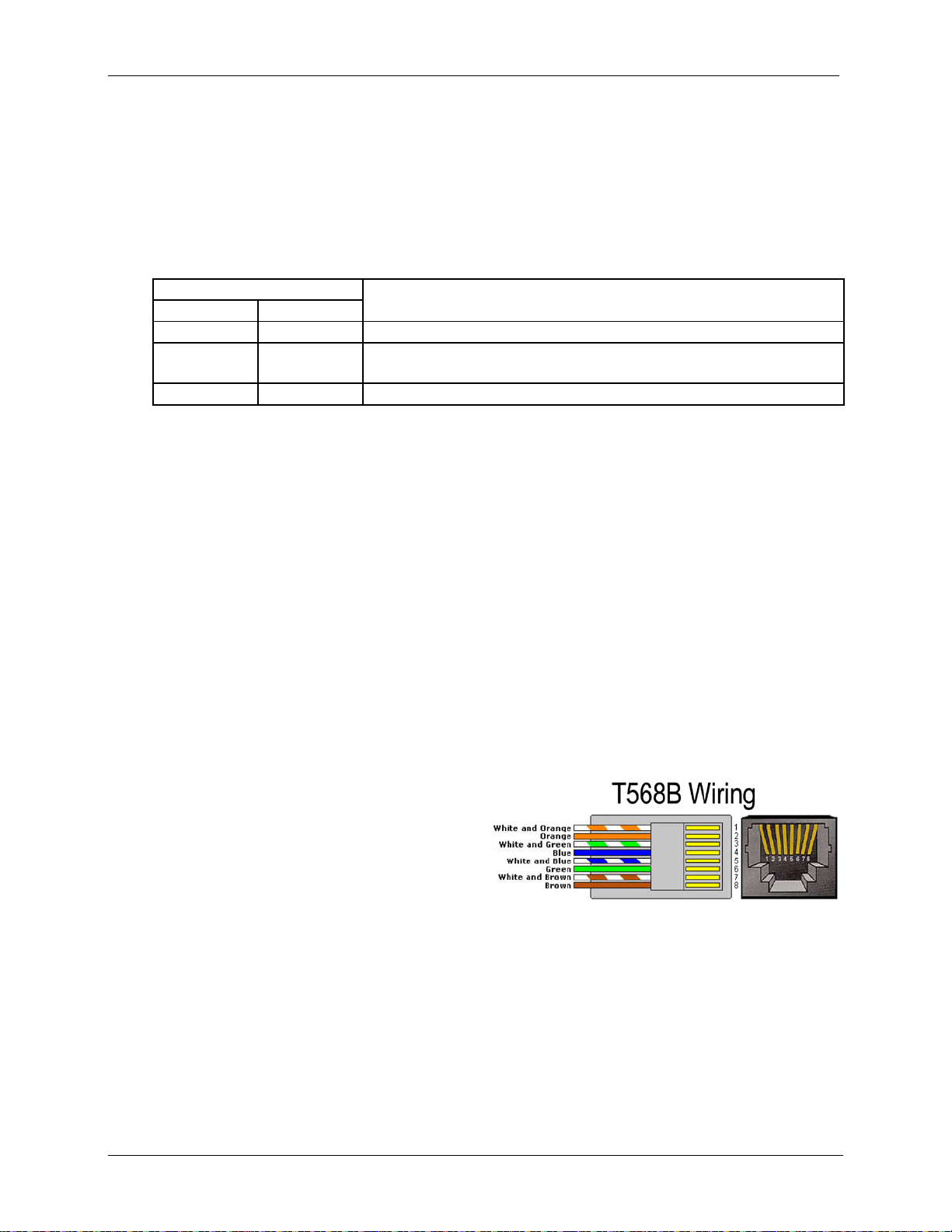

7. Category cable wiring
before connecting; use a cable tester to check
the wires are correctly terminated. (Incorrect
Termination may cause damage to the
receiver unit). Recommend to use T568B
The following table describes some of the symptoms, probable causes and possible solutions in
respect to the installation of the USB 2.0 4-Port Extender kit.
Table -1 Troubleshooting tips
The USB device is
attached but not
functioning.
The USB device is
attached but not
functioning.
Activity LED on
transmitter or receiver
blinks intermittently.
Activity LED on
transmitter or receiver
is off.
drivers that were not
installed.
• The USB device does not
support USB hubs.
• The USB device might be
has occurred because
the USB device is
drawing more than
500mA (USB spec.).
The operating systems
may pop up to indicate
an issue.
connecting the
transmitter and receiver
powered.
• The transmitter is not
powered.
• The link cable failed or is
damaged.
• The extender is not
working.
computer operating system before plug in the
USB device to the receiver. Access your USB
device’s manufacturer’s Web site for detail info.
2. In the Universal Serial Bus (USB) controllers
section of Device Manager, check if the USB
wait approximately 30 seconds; plug the power
adapter into receiver again.
2. If over current keeps occurring, either the USB
device may use more power than the USB
specification, or the USB device may be
damaged.
3. Consult your USB device documentation and
plug into your USB device with the required
2. Try to use a different Cat.5 cable to connect
transmitter and receiver.
power to the transmitter.
2. Make sure the supplied AC power adapters are
properly connected to the transmitter or receiver.
3. Make sure the Cat5 cabling between transmitter
and receiver is properly installed or replace the
link cable.
4. Check that the power adapter is connected and
If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at
877-689-5228 (toll-free in North America) or (+1) 514-905-0588 (International).
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5

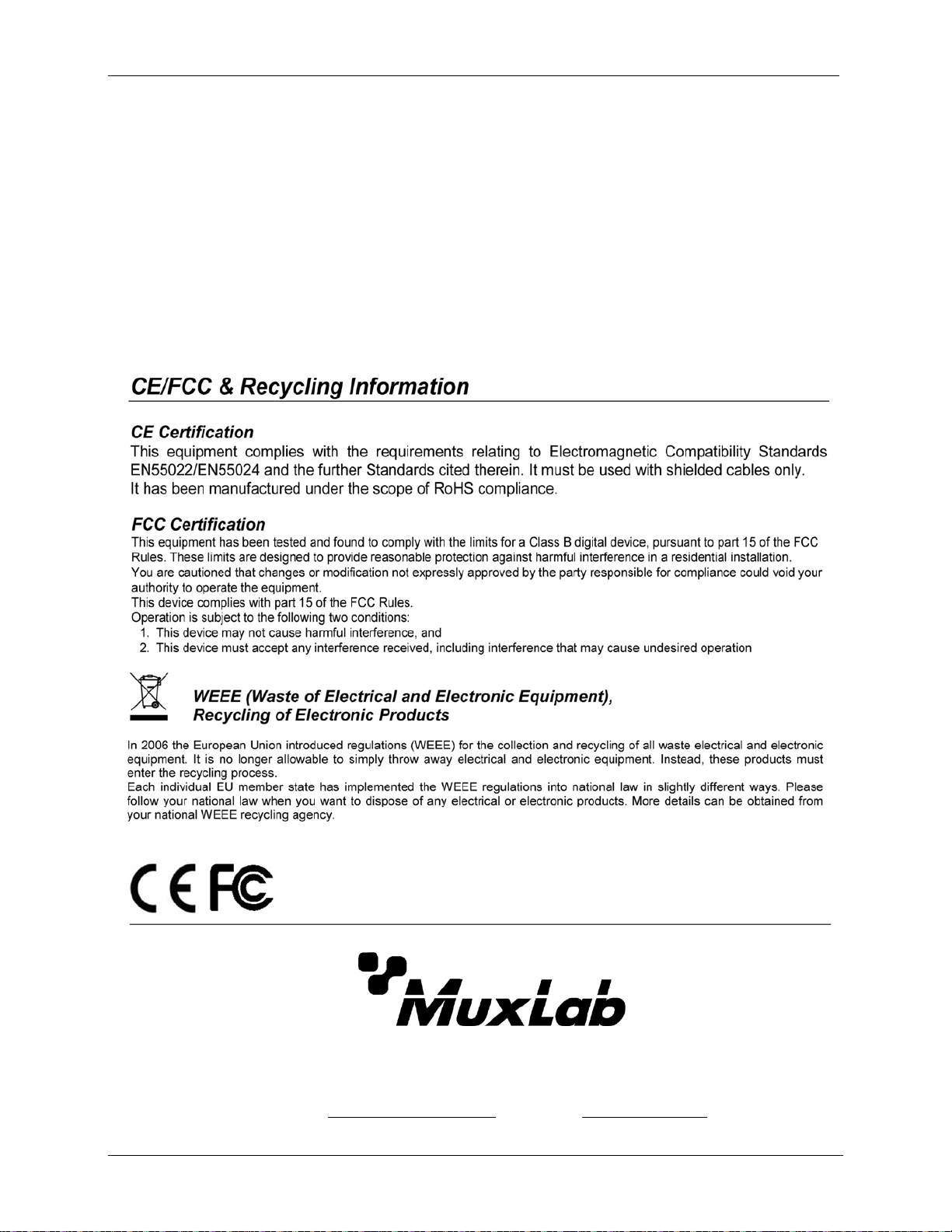

Regulatory Compliance
