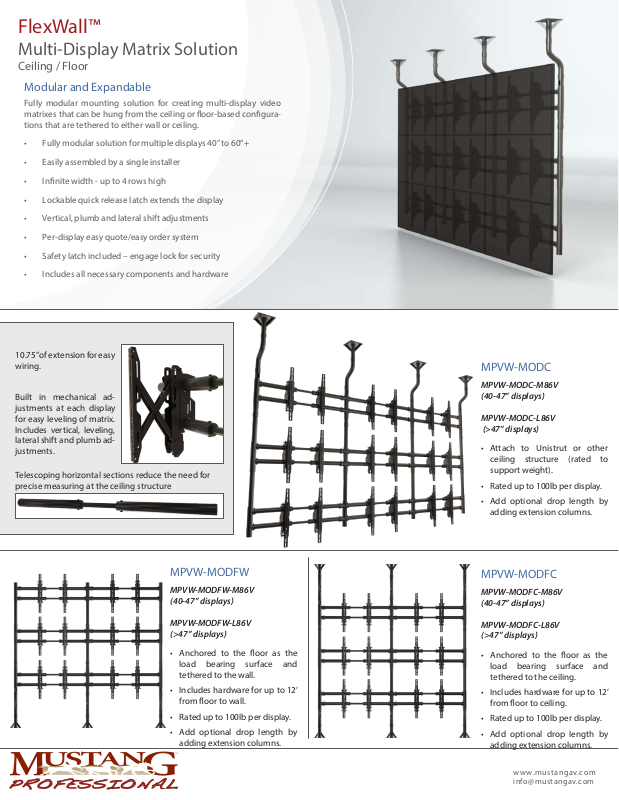

Page 1
FlexWall™
Multi-Display Matrix Solution
Ceiling / Floor
Modular and Expandable
Fully modular mounting solution for creating multi-display video
matrixes that can be hung from the ceiling or oor-based congurations that are tethered to either wall or ceiling.
• Fully modular solution for multiple displays 40” to 60”+
• Easily assembled by a single installer
• Innite width - up to 4 rows high
• Lockable quick release latch extends the display
• Vertical, plumb and lateral shift adjustments
• Per-display easy quote/easy order system
• Safety latch included – engage lock for security
• Includes all necessary components and hardware
10.75” of extension for easy
wiring.
Built in mechanical adjustments at each display
for easy leveling of matrix.
Includes vertical, leveling,
lateral shift and plumb adjustments.
Telescoping horizontal sections reduce the need for
precise measuring at the ceiling structure
MPVW-MODFW
MPVW-MODFW-M86V
(40-47” displays)
MPVW-MODFW-L86V
(>47” displays)
MPVW-MODC
MPVW-MODC-M86V
(40-47” displays)
MPVW-MODC-L86V
(>47” displays)
• Attach to Unistrut or other
ceiling structure (rated to
support weight).
• Rated up to 100lb per display.
• Add optional drop length by
adding extension columns.
MPVW-MODFC
MPVW-MODFC-M86V
(40-47” displays)
MPVW-MODFC-L86V
(>47” displays)
PROFESSIONAL
• Anchored to the oor as the
load bearing surface and
tethered to the wall.
• Includes hardware for up to 12’
from oor to wall.
• Rated up to 100lb per display.
• Add optional drop length by
adding extension columns.
• Anchored to the oor as the
load bearing surface and
tethered to the ceiling.
• Includes hardware for up to 12’
from oor to ceiling.
• Rated up to 100lb per display.
• Add optional drop length by
adding extension columns.
www.mustangav.com
[email protected]
Page 2
Flex Video Wall
Multi-Display Matrix Solution
Ceiling / Floor
Fully modular, the Video Matrix can be easily assembled by a single installer,
and includes all of the necessary components as well as the hardware needed to
complete the installation. Add optional drop length by purchasing additional
columns. Systems designers need only to know the size and number of displays to
be used; we’ll kit the complete mount system and ship it to the location requested.
Prices are based on the number of displays to be mounted.
Mustang AV
www.mustangav.com
Attribute Value
Monitor Size
Weight capacity
Max mounting pattern 800x600mm
VESA mounting patterns 200x200mm, 300x200mm, 300x300mm, 400x200mm,
Lateral adjustment varies with screen
Max extension 10.75”
1.5” NPT compatible Yes
Mounting surface wood joist, structural wood or structural concrete (accesory
Construction high-grade cold rolled steel
Product nish scratch resistant epoxy powder coat
Color black
Warranty 10-years
40” - 60”+
100lb (45kg) per screen
400x300mm, 400x400mm, 600x200mm, 600x400mm,
800x400mm, 800x600mm
required MPHE-4)
PROFESSIONAL
www.mustangav.com
[email protected]
