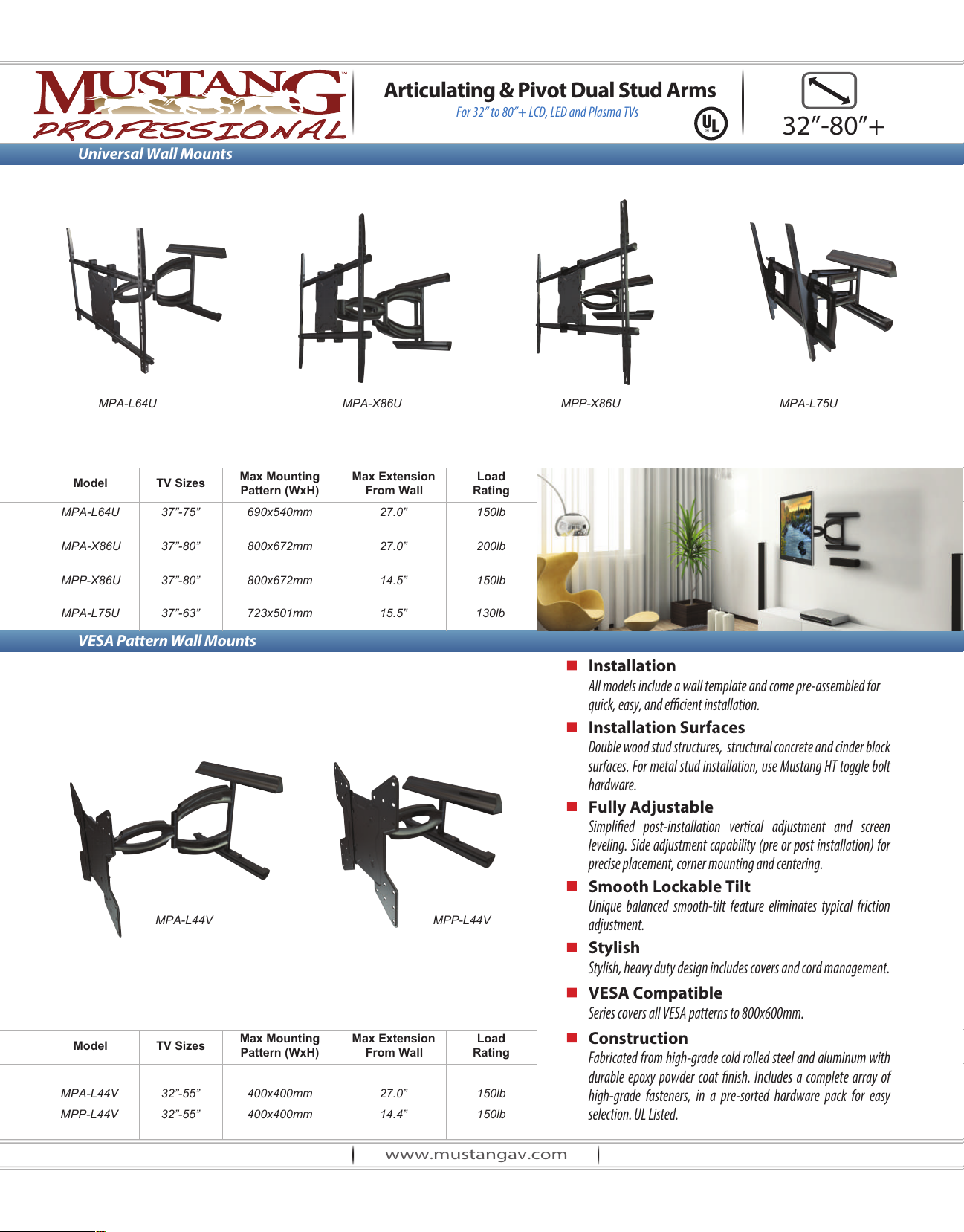

Universal Wall Mounts
VESA Pattern Wall Mounts
Articulating & Pivot Dual Stud Arms
For 32” to 80”+ LCD, LED and Plasma TVs
MPA-L64U 37”-75” 690x540mm 150lb
MPA-X86U 37”-80” 800x672mm 200lb
MPP-X86U 37”-80” 800x672mm 150lb
Model TV Sizes
Max Mounting
Pattern (WxH)
Load
Rating
Model
MPP-L44V
TV Sizes
32”-55”
Max Mounting
Pattern (WxH)
400x400mm 150lb
MPA-L44V 32”-55” 400x400mm 150lb
Load
Rating
MPA-L44V MPP-L44V
MPA-L64U MPA-X86U MPP-X86U MPA-L75U
MPA-L75U 37”-63” 723x501mm
27.0”
27.0”
14.5”
Max Extension
From Wall
27.0”
14.4”
Max Extension
From Wall
15.5” 130lb
Fully Adjustable
Simplied post-installation vertical adjustment and screen
leveling. Side adjustment capability (pre or post installation) for
precise placement, corner mounting and centering.
Smooth Lockable Tilt
Unique balanced smooth-tilt feature eliminates typical friction
adjustment.
Stylish
Stylish, heavy duty design includes covers and cord management.
Installation
All models include a wall template and come pre-assembled for
quick, easy, and ecient installation.
Installation Surfaces
Double wood stud structures, structural concrete and cinder block
surfaces. For metal stud installation, use Mustang HT toggle bolt
hardware.
VESA Compatible
Series covers all VESA patterns to 800x600mm.
Construction
Fabricated from high-grade cold rolled steel and aluminum with
durable epoxy powder coat nish. Includes a complete array of
high-grade fasteners, in a pre-sorted hardware pack for easy
selection. UL Listed.
32”-80”+
