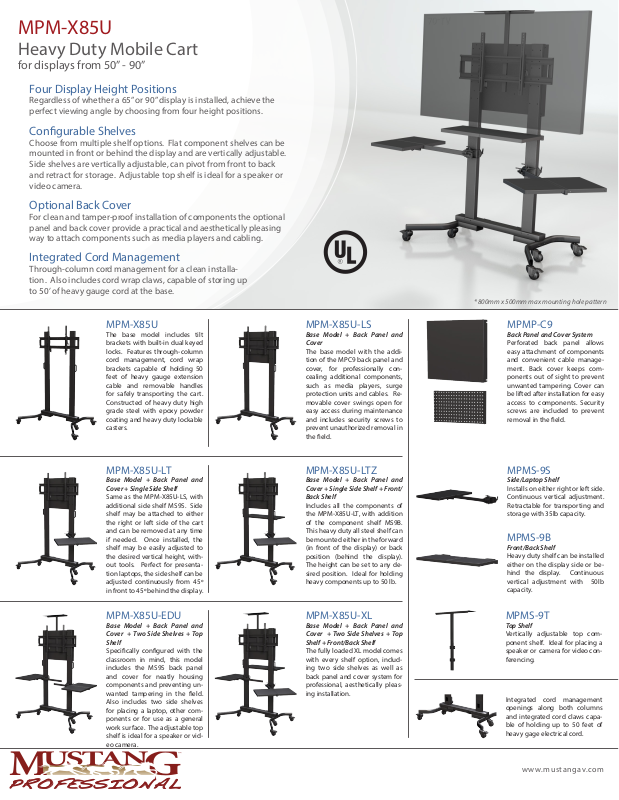

MPM-X85U
Heavy Duty Mobile Cart
for displays from 50” - 90”
Four Display Height Positions
Regardless of whether a 65” or 90” display is installed, achieve the
perfect viewing angle by choosing from four height positions.
Congurable Shelves
Choose from multiple shelf options. Flat component shelves can be
mounted in front or behind the display and are vertically adjustable.
Side shelves are vertically adjustable, can pivot from front to back
and retract for storage. Adjustable top shelf is ideal for a speaker or
video camera.
Optional Back Cover
For clean and tamper-proof installation of components the optional
panel and back cover provide a practical and aesthetically pleasing
way to attach components such as media players and cabling.
Integrated Cord Management
Through-column cord management for a clean installation. Also includes cord wrap claws, capable of storing up
to 50’ of heavy gauge cord at the base.
* 800mm x 500mm max mounting hole pattern
MPM-X85U
The base model includes tilt
brackets with built-in dual keyed
locks. Features through-column
cord management, cord wrap
brackets capable of holding 50
feet of heavy gauge extension
cable and removable handles
for safely transporting the cart.
Constructed of heavy duty high
grade steel with epoxy powder
coating and heavy duty lockable
casters.
MPM-X85U-LT
Base Model + Back Panel and
Cover + Single Side Shelf
Same as the MPM-X85U-LS, with
additional side shelf MS9S. Side
shelf may be attached to either
the right or left side of the cart
and can be removed at any time
if needed. Once installed, the
shelf may be easily adjusted to
the desired vertical height, without tools. Perfect for presentation laptops, the side shelf can be
adjusted continuously from 45º
in front to 45º behind the display.
MPM-X85U-EDU
Base Model + Back Panel and
Cover + Two Side Shelves + Top
Shelf
Specically congured with the
classroom in mind, this model
includes the MS9S back panel
and cover for neatly housing
components and preventing unwanted tampering in the eld.
Also includes two side shelves
for placing a laptop, other components or for use as a general
work surface. The adjustable top
shelf is ideal for a speaker or video camera.
MPM-X85U-LS
Base Model + Back Panel and
Cover
The base model with the addition of the MPC9 back panel and
cover, for professionally concealing additional components,
such as media players, surge
protection units and cables. Removable cover swings open for
easy access during maintenance
and includes security screws to
prevent unauthorized removal in
the eld.
MPM-X85U-LTZ
Base Model + Back Panel and
Cover + Single Side Shelf + Front/
Back Shelf
Includes all the components of
the MPM-X85U-LT, with addition
of the component shelf MS9B.
This heavy duty all steel shelf can
be mounted either in the forward
(in front of the display) or back
position (behind the display).
The height can be set to any desired position. Ideal for holding
heavy components up to 50 lb.
MPM-X85U-XL
Base Model + Back Panel and
Cover + Two Side Shelves + Top
Shelf + Front/Back Shelf
The fully loaded XL model comes
with every shelf option, including two side shelves as well as
back panel and cover system for
professional, aesthetically pleasing installation.
MPMP-C9
Back Panel and Cover System
Perforated back panel allows
easy attachment of components
and convenient cable management. Back cover keeps components out of sight to prevent
unwanted tampering. Cover can
be lifted after installation for easy
access to components. Security
screws are included to prevent
removal in the eld.
MPMS-9S
Side/Laptop Shelf
Installs on either right or left side.
Continuous vertical adjustment.
Retractable for transporting and
storage with 35lb capacity.
MPMS-9B
Front/Back Shelf
Heavy duty shelf can be installed
either on the display side or behind the display. Continuous
vertical adjustment with 50lb
capacity.
MPMS-9T
Top Shelf
Vertically adjustable top component shelf. Ideal for placing a
speaker or camera for video conferencing.
Integrated cord management
openings along both columns
and integrated cord claws capable of holding up to 50 feet of
heavy gage electrical cord.
www.mustangav.com
Page 2
Maximum load rating: 300 lbs
MPM-X85U
Heavy Duty Mobile Cart
for displays from 50” - 90”
Mustang AV’s heavy duty mobile cart for extra large displays is made for high
trac environments. Choose from a variety of precongured models or build your
own specic conguration a-la-carte. Side shelves are designed for heavy use of
presentation laptops and can be vertically adjusted without the use of tools as well
as swiveled continuesly up to 45º in front or behind the display. Side shelves also
easily retract for transport and storage. The solid front/back shelf can be mounted
either in front or behind the display at any height position.
www.mustangav.com
Attribute Value
TV size range
Weight capacity
Max mounting pattern
Lateral adjustment
Tilt
Security feature
Max component depth
Shelves
Optional accessories MPMP-C9 back panel and cover system, MPMS-9S laptop
Construction
Product nish
Color
Model number X85U, X85U-LS, X85U-LT, X85U-LTZ, X85U-EDU, X85U-XL
Warranty
50” - 90”+
300lb (136kg)
800x500mm
4 height positions center of display at 55”, 61”, 63”, 67”
+15°/-5° with incremental tilt lock
One-touch lock and key system
3” (with cover installed)
Vertically adjustable; side shelves can be adjusted continuously from 45° in front to 45° behind the display
shelf, MPMS-9B front/back shelf, MPMS-9T top shelf
Aluminum/high-grade cold rolled steel
Scratch resistant epoxy powder coat
Black
10 years
