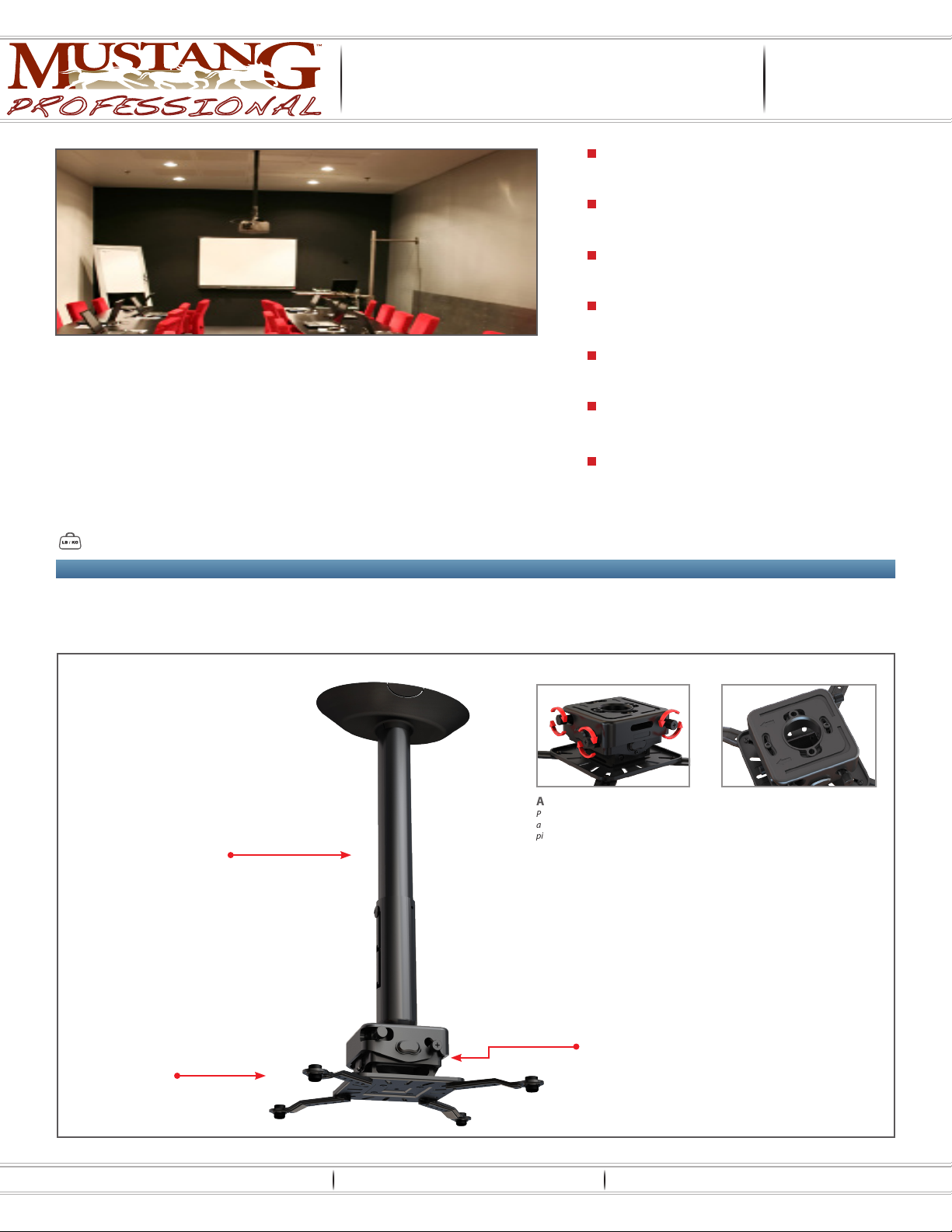

PROFESSIONAL

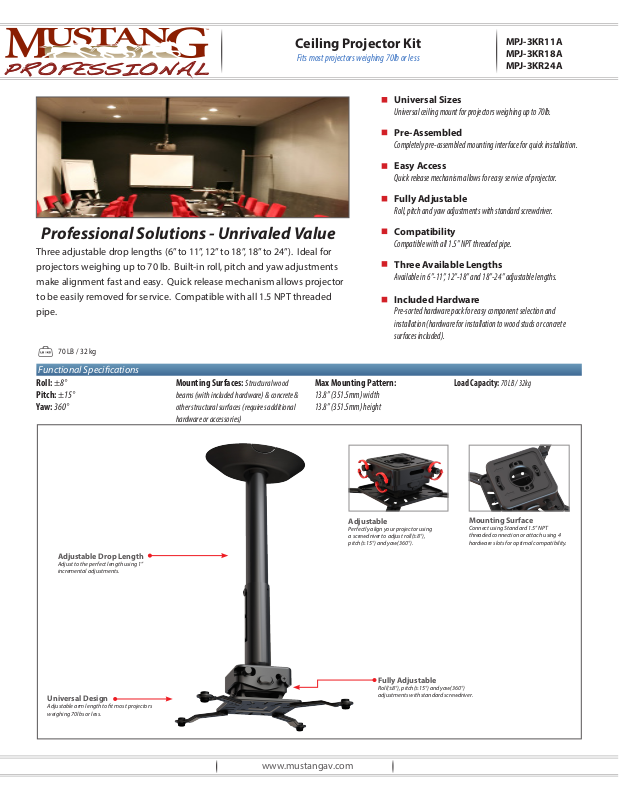

Ceiling Projector Kit
Fits most projectors weighing 70lb or less
Universal Sizes
Universal ceiling mount for projectors weighing up to 70lb.
Pre-Assembled
Completely pre-assembled mounting interface for quick installation.
Easy Access
Quick release mechanism allows for easy service of projector.
Fully Adjustable
Roll, pitch and yaw adjustments with standard screwdriver.
MPJ-3KR11A
MPJ-3KR18A
MPJ-3KR24A
Professional Solutions - Unrivaled Value
Three adjustable drop lengths (6” to 11”, 12” to 18”, 18” to 24”). Ideal for
projectors weighing up to 70 lb. Built-in roll, pitch and yaw adjustments
make alignment fast and easy. Quick release mechanism allows projector
to be easily removed for service. Compatible with all 1.5 NPT threaded
pipe.
70 LB / 32 kg
Functional Specications
Roll: ±8°
Pitch: ±15°
Yaw: 360°
Adjustable Drop Length
Adjust to the perfect length using 1”
incremental adjustments.
Mounting Surfaces: Structural wood
beams (with included hardware) & concrete &
other structural surfaces (requires additional
hardware or accessories)
Max Mounting Pattern:
13.8” (351.5mm) width
13.8” (351.5mm) height
Compatibility
Compatible with all 1.5” NPT threaded pipe.
Three Available Lengths
Available in 6”-11”, 12”-18” and 18”-24” adjustable lengths.
Included Hardware
Pre-sorted hardware pack for easy component selection and
installation (hardware for installation to wood studs or concrete
surfaces included).
Adjustable
Perfectly align your projector using
a screwdriver to adjust roll(±8°),
pitch(±15°) and yaw(360°).
Load Capacity:
Mounting Surface
Connect using Standard 1.5” NPT
threaded connection or attach using 4
hardware slots for optimal compatibility.
70 LB / 32kg
Universal Design
Adjustable arm length to t most projectors
weighing 70lbs or less.
www.mustangav.com
Fully Adjustable
Roll(±8°), pitch(±15°) and yaw(360°)
adjustments with standard screwdriver.

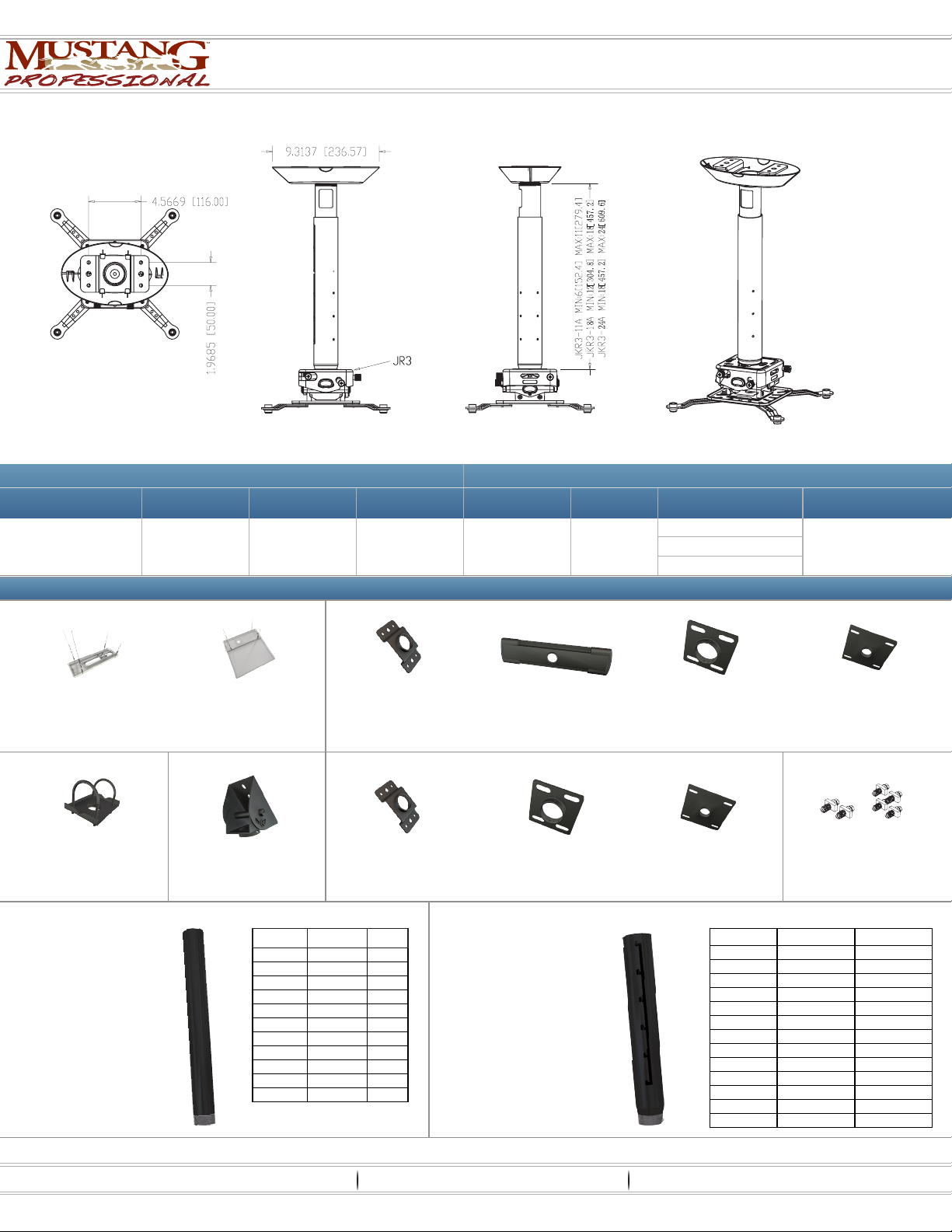

Page 2
PROFESSIONAL
Ceiling Projector Kit
Fits most projectors weighing 70lb or less
MPJ-3KR11A
MPJ-3KR18A
MPJ-3KR24A
Product Specications
PRODUCT WEIGHT
6.2lb
7.5lb
LOAD CAPACITY SHIP WEIGHTFINISHCOLORS
70 lb (32 kg) Scratch resistant
Black
powder coating
Package Specications
PACKAGE SIZE
(WxHxD)
20”x10”x6”
8.6lb
Accessories
Suspended Ceiling Adapters Structural Ceiling Adapters
MPCA-S1W MPCA-S2W MPCA-1 MPCA-2 MPCA-4 MPCA-8
For mounting above a false ceiling
tile. 13” of lateral shift for fast
project adjustment. Compatible
with all 1.5” NPT threaded pipe.
MPCA-T3
Mounts to round, square and
rectangular trusses from .75” up to
3” in diameter and is compatible
with all 1.5” NPT threaded pipe.
Fixed Columns Adjustable Columns
Static ceiling columns
for use with all ceiling
adapters using
standard 1.5” NPT
interfaces. Connectors
(sold separately) give
ability to extend drop
lengths by connecting
two or more columns.
Cable management
with a completely open
interior.
Replaces a standard 2’ x 2’
grid. 13” of lateral shift for fast
project adjustment. Compatible
with all 1.5” NPT threaded pipe.
Vaulted Ceiling AdapterTruss Ceiling Adapter
For installation on cathedral
or vaulted ceilings. Adjusts up
to 94° and is compatible with
all 1.5” NPT threaded pipe.
BLACK WHITE DROP
MPE-06 MPE-06W 6”
MPE-1 MPE-1W 12”
MPE-018 18”
MPE-2 2’
MPE-3 3’
MPE-4 4’
MPE-5 5’
MPE-6 6’
MPE-7 7’
MPE-8 8’
MPE-9 9’
Wood Single Joist /
Concrete
Unistrut Ceiling Adapters
Bracket and hardware
for mounting to single
1-5/8”x1-5/8” Unitstrut.
Wood 16” Double Joist /
Bracket and hardware (4x4)
for mounting to standard
1-5/8”x1-5/8” dual channels
spaced on 2.25” centers.
Adjustable extension
columns designed for
use with all ceiling
adapters using standard
1.5” NPT interfaces.
Column allows for
exibility with quick
1” incremental drop
length adjustments
and cable management
with a completely open
interior. Connectors
(sold separately) give
ability to extend drop
lengths by connecting
two or more columns.
Concrete
9.8lb
11.2lb
12.6lb
UPC CODE
MPJ-3KR11A
MPJ-3KR18A
MPJ-3KR24A
General Purpose 4x4” General Purpose 8x8”
Unistrut Bolts
MPHU-2 MPHU-4
MPCA-U8MPCA-U4MPCA-U1MPCA-V1
Bracket and hardware (8x8)
for mounting to standard
1-5/8”x1-5/8” dual channels
spaced on 6” centers.
BLACK WHITE DROP
MPEA-0611 MPEA-0611W 6”-11”
MPEA-01218 12”-18”
MPEA-01824 18”-24”
MPEA-23 2’-3’
MPEA-24 2’-4’
MPEA-35 3’-5’
MPEA-46 4’-6’
MPEA-57 5’-7’
MPEA-68 6’-8’
MPEA-79 7’-9’
MPEA-810 8’-10’
MPEA-911 9’-11’
MPEA-1012 10’-12’
(2 Bolts) (4 Bolts)
3/8” bolts and spring nuts for
mounting ceiling brackets to
standard 1-5/8”x1-5/8”.
Visit mustangav.com to see the full line of vidamounts LCD/plasma, projector and TV/monitor mounts.
