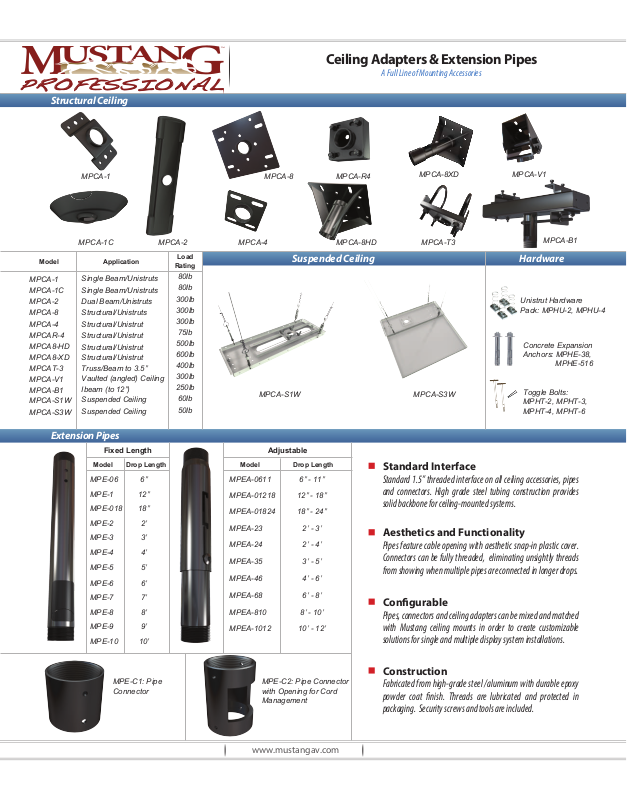

Structural Ceiling

Ceiling Adapters & Extension Pipes

A Full Line of Mounting Accessories

MPCA-1

Model Application

MPCA-1 MPCA-1C MPCA-2 MPCA-8 MPCA-4 MPCAR-4 MPCA8-HD MPCA8-XD MPCAT-3 MPCA-V1 MPCA-B1

MPCA-S1W

MPCA-S3W

Single Beam/Unistruts

Single Beam/Unistruts Dual Beam/Unistruts Structural/Unistruts Structural/Unistrut Structural/Unistrut

Structural/Unistrut Structural/Unistrut

Truss/Beam to 3.5” Vaulted (angled) Ceiling

Ibeam (to 12”) Suspended Ceiling

Suspended Ceiling

Extension Pipes

Fixed Length

Model

MPE-06

MPE-1

MPE-018

MPE-2

MPE-3

MPE-4

MPE-5

MPE-6

MPE-7

MPE-8

MPE-9

MPE-10

6”

12”

18”

2’

3’

4’

5’

6’

7’

8’

9’

10’

MPCA-8

MPCA-2 MPCA-4 MPCA-8HDMPCA-1C

Load

Rating

80lb

80lb 300lb 300lb 300lb

75lb 500lb 600lb 400lb 300lb 250lb

60lb

50lb

MPCA-S1W MPCA-S3W

Model

MPEA-0611

MPEA-01218

MPEA-01824

MPEA-23

MPEA-24

MPEA-35

MPEA-46

MPEA-68

MPEA-810

MPEA-1012

Suspended Ceiling Hardware

Adjustable

Drop LengthDrop Length

6” - 11”

12” - 18”

18” - 24”

2’ - 3’

2’ - 4’

3’ - 5’

4’ - 6’

6’ - 8’

8’ - 10’

10’ - 12’

MPCA-R4

Standard Interface

Standard 1.5” threaded interface on all ceiling accessories, pipes and connectors. High grade steel tubing construction provides solid backbone for ceiling-mounted systems.

Aesthetics and Functionality

Pipes feature cable opening with aesthetic snap-in plastic cover. Connectors can be fully threaded, eliminating unsightly threads from showing when multiple pipes are connected in longer drops.

Congurable

Pipes, connectors and ceiling adapters can be mixed and matched with Mustang ceiling mounts in order to create customizable

MPCA-8XD

MPCA-T3

MPCA-V1

MPCA-B1

Unistrut Hardware Pack: MPHU-2, MPHU-4

Concrete Expansion Anchors: MPHE-38, MPHE-516

Toggle Bolts: MPHT-2, MPHT-3, MPHT-4, MPHT-6

solutions for single and multiple display system installations.

MPE-C1: Pipe Connector

MPE-C2: Pipe Connector with Opening for Cord Management

www.mustangav.com

Construction

Fabricated from high-grade steel /aluminum with durable epoxy powder coat nish. Threads are lubricated and protected in packaging. Security screws and tools are included.
