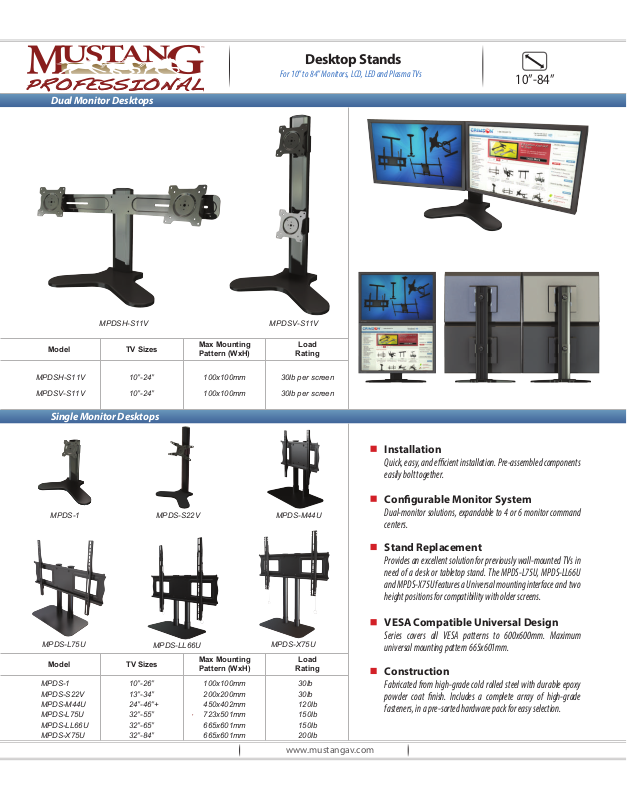

Page 1

Dual Monitor Desktops

MPDSH-S11V MPDSV-S11V

Desktop Stands

For 10” to 84” Monitors, LCD, LED and Plasma TVs

10”-84”

Model TV Sizes

MPDSH-S11V

MPDSV-S11V

10”-24”

Single Monitor Desktops

MPDS-1 MPDS-S22V

MPDS-L75U

Model TV Sizes

MPDS-1 MPDS-S22V MPDS-M44U MPDS-L75U MPDS-LL66U MPDS-X75U

MPDS-LL66U

10”-26” 13”-34” 24”-46”+ 32”-55” 32”-65” 32”-84”

Max Mounting Pattern (WxH)

100x100mm

Max Mounting Pattern (WxH)

100x100mm 200x200mm 450x402mm 723x501mm 665x601mm 665x601mm

Load

Rating

30lb per screen

MPDS-M44U

MPDS-X75U

Load

Rating

30lb 30lb 120lb 150lb 150lb 200lb

www.mustangav.com

Installation

Quick, easy, and ecient installation. Pre-assembled components easily bolt together.

Congurable Monitor System

Dual-monitor solutions, expandable to 4 or 6 monitor command centers.

Stand Replacement

Provides an excellent solution for previously wall-mounted TVs in need of a desk or tabletop stand. The MPDS-L75U, MPDS-LL66U and MPDS-X75U features a Universal mounting interface and two height positions for compatibility with older screens.

VESA Compatible Universal Design

Series covers all VESA patterns to 600x600mm. Maximum universal mounting pattern 665x601mm.

Construction

Fabricated from high-grade cold rolled steel with durable epoxy powder coat nish. Includes a complete array of high-grade fasteners, in a pre-sorted hardware pack for easy selection.
