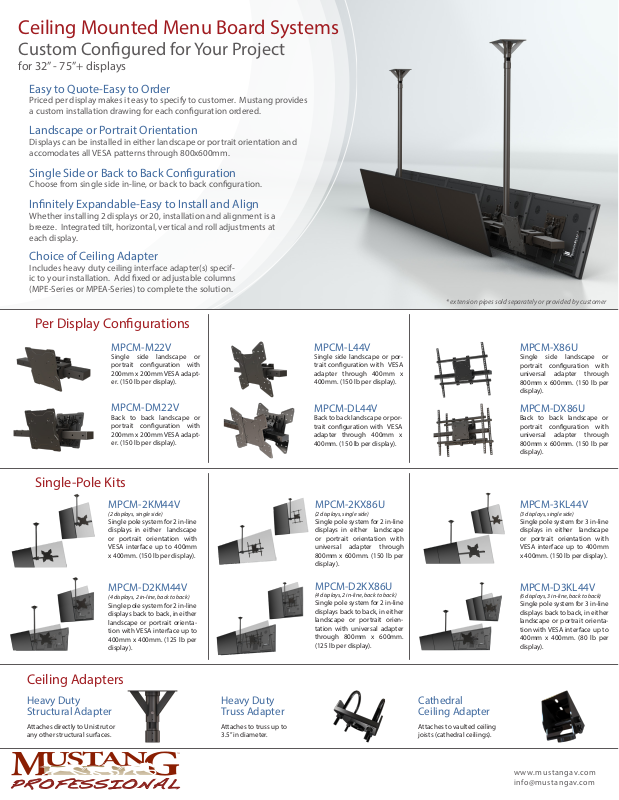

Ceiling Mounted Menu Board Systems
Custom Congured for Your Project
for 32” - 75”+ displays
Easy to Quote-Easy to Order
Priced per display makes it easy to specify to customer. Mustang provides
a custom installation drawing for each conguration ordered.
Landscape or Portrait Orientation
Displays can be installed in either landscape or portrait orientation and
accomodates all VESA patterns through 800x600mm.
Single Side or Back to Back Conguration
Choose from single side in-line, or back to back conguration.
Innitely Expandable-Easy to Install and Align
Whether installing 2 displays or 20, installation and alignment is a
breeze. Integrated tilt, horizontal, vertical and roll adjustments at
each display.
Choice of Ceiling Adapter
Includes heavy duty ceiling interface adapter(s) specific to your installation. Add xed or adjustable columns
(MPE-Series or MPEA-Series) to complete the solution.
* extension pipes sold separately or provided by customer
Per Display Congurations
MPCM-M22V
Single side landscape or
portrait conguration with
200mm x 200mm VESA adapter. (150 lb per display).
MPCM-DM22V
Back to back landscape or
portrait conguration with
200mm x 200mm VESA adapter. (150 lb per display).
Single-Pole Kits
MPCM-2KM44V
(2 displays, single side)
Single pole system for 2 in-line
displays in either landscape
or portrait orientation with
VESA interface up to 400mm
x 400mm. (150 lb per display).
MPCM-D2KM44V
(4 displays, 2 in-line, back to back)
Single pole system for 2 in-line
displays back to back, in either
landscape or portrait orientation with VESA interface up to
400mm x 400mm. (125 lb per
display).
MPCM-L44V
Single side landscape or portrait conguration with VESA
adapter through 400mm x
400mm. (150 lb per display).
MPCM-DL44V
Back to back landscape or portrait conguration with VESA
adapter through 400mm x
400mm. (150 lb per display).
MPCM-2KX86U
(2 displays, single side)
Single pole system for 2 in-line
displays in either landscape
or portrait orientation with
universal adapter through
800mm x 600mm. (150 lb per
display).
MPCM-D2KX86U
(4 displays, 2 in-line, back to back)
Single pole system for 2 in-line
displays back to back, in either
landscape or portrait orientation with universal adapter
through 800mm x 600mm.
(125 lb per display).
MPCM-X86U
Single side landscape or
portrait conguration with
universal adapter through
800mm x 600mm. (150 lb per
display).
MPCM-DX86U
Back to back landscape or
portrait conguration with
universal adapter through
800mm x 600mm. (150 lb per
display).
MPCM-3KL44V
(3 displays, single side)
Single pole system for 3 in-line
displays in either landscape
or portrait orientation with
VESA interface up to 400mm
x 400mm. (150 lb per display).
MPCM-D3KL44V
(6 displays, 3 in-line, back to back)
Single pole system for 3 in-line
displays back to back, in either
landscape or portrait orientation with VESA interface up to
400mm x 400mm. (80 lb per
display).
Ceiling Adapters
Heavy Duty
Structural Adapter
Attaches directly to Unistrut or
any other structural surfaces.
PROFESSIONAL
Heavy Duty
Truss Adapter
Attaches to truss up to
3.5” in diameter.
Cathedral
Ceiling Adapter
Attaches to vaulted ceiling
joists (cathedral ceilings).
www.mustangav.com
[email protected]
Page 2
PROFESSIONAL
Ceiling Mounted Menu Board Systems
Custom Congured for Your Project
for 32” - 75”+ displays
Attribute Value
Max mounting pattern VESA 800x600mm, Universal 800x672mm
Orientation landscape or portrait
Roll (side to side) +/- 3°
Tilt +15°/-5°
Drop length select from MPE-Series or MPEA-Series
Height adjustment 1” increments
Mounting interface 1.5” NPT thread compatible
Construction aluminum/high-grade cold rolled steel
Product nish scratch resistant epoxy powder coat
Color black
Model number (per display conguration)
Model number
The most exible and innitely expandable system for installing menu boards or
any in-line single side or back to back conguration for displays 32”-75” and larger.
For ease of quoting your customer, prices are based on the number of displays to be
mounted. Hang 2,3,10 or more displays in-line. You are limited only by the structure
to which the system is attached. Includes all of the necessary components and
hardware needed to complete the installation, including the Ceiling Adapter(s).
Just add the required drop length of xed or adjustable column (MPE-Series or
MPEA-Series) to complete the solution.
(single-pole kits)
Warranty 10 years
Mustang AV
www.mustangav.com
MPCM-M22V, MPCM-L44V, MPCM-X86U, MPCM-DM22V,
MPCM-DL44V, MPCM-DX86U
MPCM-2KL44V, MPCM-2KX86U, MPCM-3KL44V,
MPCM-D2KM44V, MPCM-D2KX86U, MPCM-D3KL44V
