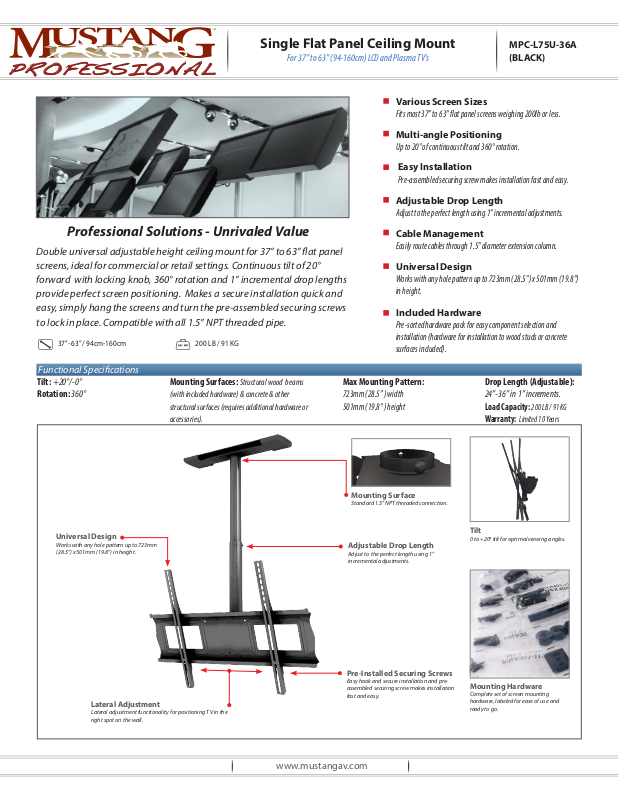

Page 1
PROFESSIONAL
Single Flat Panel Ceiling Mount
For 37” to 63” (94-160cm) LCD and Plasma TV’s
Various Screen Sizes
Fits most 37” to 63” at panel screens weighing 200lb or less.
Multi-angle Positioning
Up to 20° of continuous tilt and 360° rotation.
Easy Installation
Pre-assembled securing screw makes installation fast and easy.
Adjustable Drop Length
Adjust to the perfect length using 1” incremental adjustments.
MPC-L75U-36A
(BLACK)
Professional Solutions - Unrivaled Value
Double universal adjustable height ceiling mount for 37” to 63” at panel
screens, ideal for commercial or retail settings. Continuous tilt of 20°
forward with locking knob, 360° rotation and 1” incremental drop lengths
provide perfect screen positioning. Makes a secure installation quick and
easy, simply hang the screens and turn the pre-assembled securing screws
to lock in place. Compatible with all 1.5” NPT threaded pipe.
37”- 63” / 94cm-160cm 200 LB / 91 KG
Functional Specications
Tilt: +20°/-0°
Rotation: 360°
Mounting Surfaces: Structural wood beams
(with included hardware) & concrete & other
structural surfaces (requires additional hardware or
accessories).
Cable Management
Easily route cables through 1.5” diameter extension column.
Universal Design
Works with any hole pattern up to 723mm (28.5”) x 501mm (19.8”)
in height.
Included Hardware
Pre-sorted hardware pack for easy component selection and
installation (hardware for installation to wood studs or concrete
surfaces included).
Max Mounting Pattern:
723mm (28.5” ) width
501mm (19.8” ) height
Mounting Surface
Standard 1.5” NPT threaded connection.
Drop Length (Adjustable):
24”-36” in 1” increments.
Load Capacity:
200 LB / 91 KG
Warranty: Limited 10 Years
Universal Design
Works with any hole pattern up to 723mm
(28.5”) x 501mm (19.8”) in height.
Lateral Adjustment
Lateral adjustment functionality for positioning TV in the
right spot on the wall.
Adjustable Drop Length
Adjust to the perfect length using 1”
incremental adjustments.
Pre-Installed Securing Screws
Easy hook and secure installation and preassembled securing screw makes installation
fast and easy.
www.mustangav.com
Tilt
0 to +20 tilt for optimal viewing angles.
Mounting Hardware
Complete set of screen mounting
hardware, labeled for ease of use and
ready to go.
Page 2
PROFESSIONAL
Single Flat Panel Ceiling Mount
For 37” to 63” (94-160cm) LCD and Plasma TV’s
MPC-L75U-36A (BLACK)
Product Specications
PRODUCT WEIGHT
25.4 lb (11.5 kg) 40” x 12” x 9”
LOAD CAPACITY SHIP WEIGHTFINISHCOLORS PACKAGE CONTENTS
200lb (91 kg) 29.4 lb (13kg)
Black Mount, screen mounting hardware,
Scratch resistant
powder coating
Mounting Interface
31mm
W
31mm
H
Universal
Min Max
723mm
501mm
VESA
W
H
75mm
X
75mm
100mm
100mm
Accessories
Suspended Ceiling Adapters Structural Ceiling Adapters
MPCA-S1W MPCA-S2W MPCA-1 MPCA-2 MPCA-4 MPCA-8
For mounting above a false ceiling
tile. 13” of lateral shift for fast
project adjustment. Compatible
with all 1.5” NPT threaded pipe.
Replaces a standard 2’ x 2’
grid. 13” of lateral shift for fast
project adjustment. Compatible
with all 1.5” NPT threaded pipe.
Vaulted Ceiling AdapterTruss Ceiling Adapter
Wood Single Joist /
Concrete
Unistrut Ceiling Adapters
Package Specications
PACKAGE SIZE
(WxHxD)
(1016 x 295 x 249 mm)
200mm
X
100mm
200mm
X
X
200mm
Wood 16” Double Joist /
Concrete
300mm
200mm
UPC CODE
MPC-L75U-36A
(Black)
300mm
X
300mm
400mm
X
X
200mm
General Purpose 4x4” General Purpose 8x8”
400mm
X
300mm
product manual.
400mm
X
400mm
600mm
X
200mm
600mm
X
400mm
Unistrut Bolts
MPCA-T3
Mounts to round, square and
rectangular trusses from .75” up to
3” in diameter and is compatible
with all 1.5” NPT threaded pipe.
For installation on cathedral
or vaulted ceilings. Adjusts up
to 94° and is compatible with
all 1.5” NPT threaded pipe.
Bracket and hardware
for mounting to single
1-5/8”x1-5/8” Unitstrut.
Bracket and hardware (4x4)
for mounting to standard
1-5/8”x1-5/8” dual channels
spaced on 2.25” centers.
Fixed Columns Adjustable Columns
Static ceiling columns
for use with all ceiling
adapters using
standard 1.5” NPT
interfaces. Connectors
(sold separately) give
ability to extend drop
lengths by connecting
two or more columns.
Cable management
with a completely open
interior.
BLACK DROP
MPE-06 6”
MPE-1 12”
MPE-018 18”
MPE-2 2’
MPE-3 3’
MPE-4 4’
MPE-5 5’
MPE-6 6’
MPE-7 7’
MPE-8 8’
MPE-9 9’
MPE-10 10’
Visit mustangav.com to see the full line of vidamounts LCD/plasma, projector and TV/monitor mounts.
Adjustable extension
columns designed for
use with all ceiling
adapters using standard
1.5” NPT interfaces.
Column allows for
exibility with quick
1” incremental drop
length adjustments
and cable management
with a completely open
interior. Connectors
(sold separately) give
ability to extend drop
lengths by connecting
two or more columns.
www.mustangav.com
MPCA-U8MPCA-U4MPCA-U1MPCA-V1
Bracket and hardware (8x8)
for mounting to standard
1-5/8”x1-5/8” dual channels
spaced on 6” centers.
BLACK DROP
MPEA-0611 6”-11”
MPEA-01218 12”-18”
MPEA-01824 18”-24”
MPEA-23 2’-3’
MPEA-24 2’-4’
MPEA-35 3’-5’
MPEA-46 4’-6’
MPEA-57 5’-7’
MPEA-68 6’-8’
MPEA-79 7’-9’
MPEA-810 8’-10’
MPEA-911 9’-11’
MPEA-1012 10’-12’
MP-HU2 MP-HU4
(2 Bolts) (4 Bolts)
3/8” bolts and spring nuts for
mounting ceiling brackets to
standard 1-5/8”x1-5/8”.
