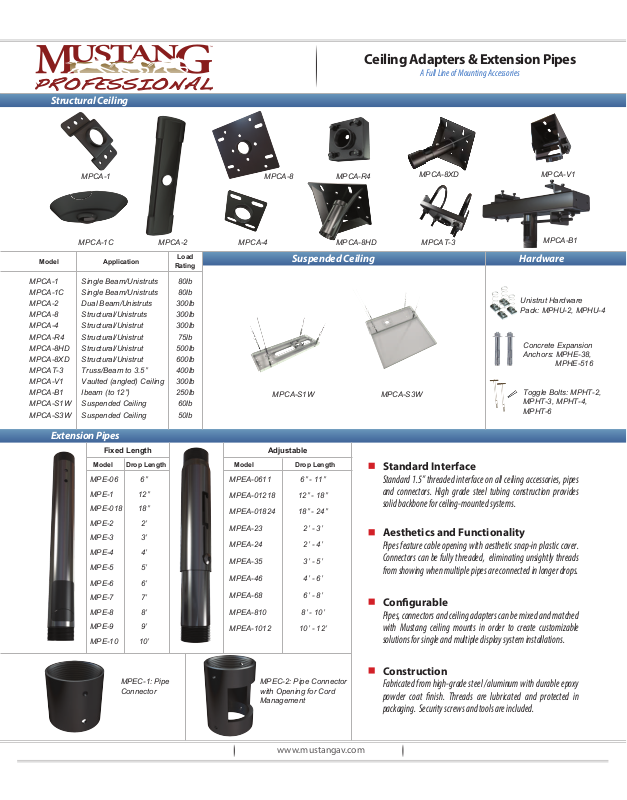

Structural Ceiling
Ceiling Adapters & Extension Pipes
A Full Line of Mounting Accessories
MPCA-1
MPCA-2 MPCA-4 MPCA-8HDMPCA-1C
Model Application
MPCA-1 80lb
MPCA-1C 80lb
MPCA-2 300lb
MPCA-8 300lb
MPCA-4 300lb
MPCA-R4 75lb
MPCA-8HD 500lbStructural/Unistrut
MPCA-8XD 600lbStructural/Unistrut
MPCAT-3
MPCA-V1 300lb
MPCA-B1 250lbIbeam (to 12”)
MPCA-S1W 60lb
MPCA-S3W
Single Beam/Unistruts
Single Beam/Unistruts
Dual Beam/Unistruts
Structural/Unistruts
Structural/Unistrut
Structural/Unistrut
Truss/Beam to 3.5”
Vaulted (angled) Ceiling
Suspended Ceiling
Suspended Ceiling 50lb
Load
Rating
400lb
Extension Pipes
Fixed Length
Model
MPE-06
MPE-1
MPE-018
MPE-2
MPE-3
MPE-4
MPE-5
MPE-6
MPE-7
MPE-8
MPE-9
MPE-10
6”
12”
18”
2’
3’
4’
5’
6’
7’
8’
9’
10’
MPCA-8
Model
MPEA-0611
MPEA-01218
MPEA-01824
MPEA-23
MPEA-24
MPEA-35
MPEA-46
MPEA-68
MPEA-810
MPEA-1012
MPCA-R4
MPCA-8XD
MPCAT-3
Suspended Ceiling Hardware
MPCA-S1W MPCA-S3W
Adjustable
Drop LengthDrop Length
6” - 11”
12” - 18”
18” - 24”
2’ - 3’
2’ - 4’
3’ - 5’
4’ - 6’
6’ - 8’
8’ - 10’
10’ - 12’
Standard Interface
Standard 1.5” threaded interface on all ceiling accessories, pipes
and connectors. High grade steel tubing construction provides
solid backbone for ceiling-mounted systems.
Aesthetics and Functionality
Pipes feature cable opening with aesthetic snap-in plastic cover.
Connectors can be fully threaded, eliminating unsightly threads
from showing when multiple pipes are connected in longer drops.
Congurable
Pipes, connectors and ceiling adapters can be mixed and matched
with Mustang ceiling mounts in order to create customizable
solutions for single and multiple display system installations.
MPCA-V1
MPCA-B1
Unistrut Hardware
Pack: MPHU-2, MPHU-4
Concrete Expansion
Anchors: MPHE-38,
MPHE-516
Toggle Bolts: MPHT-2,
MPHT-3, MPHT-4,
MPHT-6
MPEC-1: Pipe
Connector
MPEC-2: Pipe Connector
with Opening for Cord
Management
www.mustangav.com
Construction
Fabricated from high-grade steel /aluminum with durable epoxy
powder coat nish. Threads are lubricated and protected in
packaging. Security screws and tools are included.
