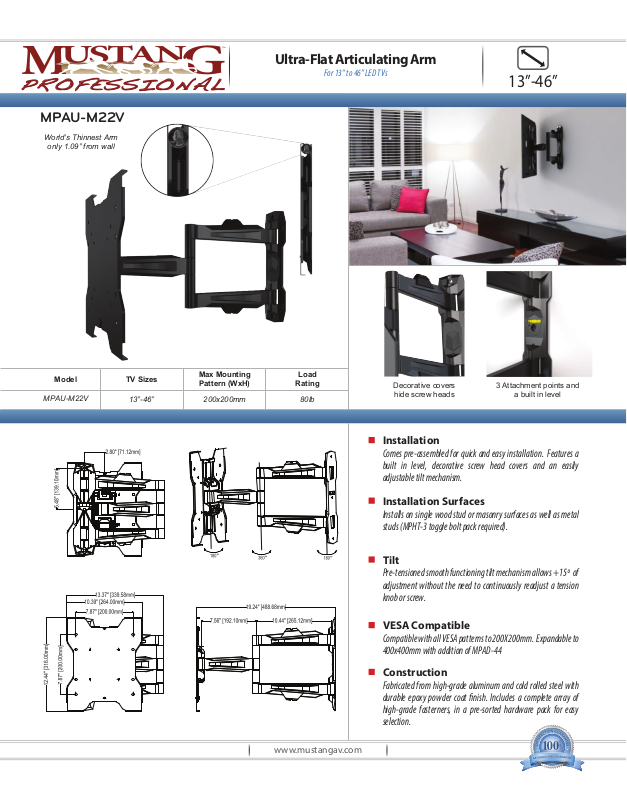

Page 1
PROFESSIONAL
A60U
MPAU-M22V
World’s Thinnest Arm
only 1.09” from wall
Ultra-Flat Articulating Arm
For 13” to 46” LED TVs
13”-46”
Model TV Sizes
MPAU-M22V
Max Mounting
Pattern (WxH)
13”-46” 200x200mm
Load
Rating
80lb
Decorative covers
hide screw heads
3 Attachment points and
a built in level
Installation
Comes pre-assembled for quick and easy installation. Features a
built in level, decorative screw head covers and an easily
adjustable tilt mechanism.
Installation Surfaces
Installs on single wood stud or masonry surfaces as well as metal
studs (MPHT-3 toggle bolt pack required).
Tilt
Pre-tensioned smooth functioning tilt mechanism allows +15º of
adjustment without the need to continuously readjust a tension
knob or screw.
VESA Compatible
Compatible with all VESA patterns to 200X200mm. Expandable to
400x400mm with addition of MPAD-44
www.mustangav.com
Construction
Fabricated from high-grade aluminum and cold rolled steel with
durable epoxy powder coat nish. Includes a complete array of
high-grade fasterners, in a pre-sorted hardware pack for easy
selection.
