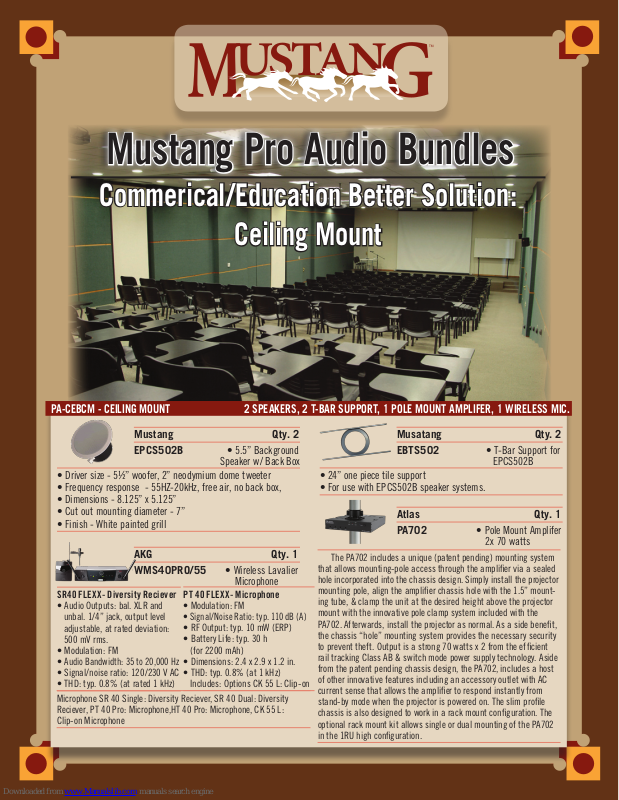

Mustang EPCS502B Specifications

Mustang Pro Audio Bundles

Commerical/Education Better Solution:

Ceiling Mount

PA-CEBCM - CEILING MOUNT 2 SPEAKERS, 2 T-BAR SUPPORT, 1 POLE MOUNT AMPLIFER, 1 WIRELESS MIC.

Mustang Qty. 2

EPCS502B • 5.5” Background
Speaker w/ Back Box

• Driver size - 5½” woofer, 2” neodymium dome tweeter

• Frequency response - 55HZ-20kHz, free air, no back box,

• Dimensions - 8.125” x 5.125”

• Cut out mounting diameter - 7”

• Finish - White painted grill

AKG Qty. 1

WMS40PRO/55 • Wireless Lavalier
Microphone

SR40 FLEXX- Diversity Reciever

• Audio Outputs: bal. XLR and
unbal. 1/4” jack, output level
adjustable, at rated deviation:
500 mV rms.

• Modulation: FM

•

Audio Bandwidth: 35 to 20,000 Hz

• Signal/noise ratio: 120/230 V AC

• THD: typ. 0.8% (at rated 1 kHz)
Microphone SR 40 Single: Diversity Reciever, SR 40 Dual: Diversity

Reciever, PT 40 Pro: Microphone,HT 40 Pro: Microphone, CK 55 L:
Clip-on Microphone

PT 40 FLEXX- Microphone

• Modulation: FM

• Signal/Noise Ratio: typ. 110 dB (A)

• RF Output: typ. 10 mW (ERP)

• Battery Life: typ. 30 h
(for 2200 mAh)

• Dimensions: 2.4 x 2.9 x 1.2 in.

• THD: typ. 0.8% (at 1 kHz)
Includes: Options CK 55 L: Clip-on

Musatang Qty. 2

EBTS502 • T-Bar Support for
EPCS502B

• 24” one piece tile support

• For use with EPCS502B speaker systems.

Atlas Qty. 1

PA702 • Pole Mount Amplifer
2x 70 watts

The PA702 includes a unique (patent pending) mounting system
that allows mounting-pole access through the amplier via a sealed
hole incorporated into the chassis design. Simply install the projector
mounting pole, align the amplier chassis hole with the 1.5” mount­ing tube, & clamp the unit at the desired height above the projector
mount with the innovative pole clamp system included with the
PA702. Afterwards, install the projector as normal. As a side benet,
the chassis “hole” mounting system provides the necessary security
to prevent theft. Output is a strong 70 watts x 2 from the efcient
rail tracking Class AB & switch mode power supply technology. Aside
from the patent pending chassis design, the PA702, includes a host
of other innovative features including an accessory outlet with AC
current sense that allows the amplier to respond instantly from
stand-by mode when the projector is powered on. The slim prole
chassis is also designed to work in a rack mount conguration. The
optional rack mount kit allows single or dual mounting of the PA702
in the 1RU high conguration.
