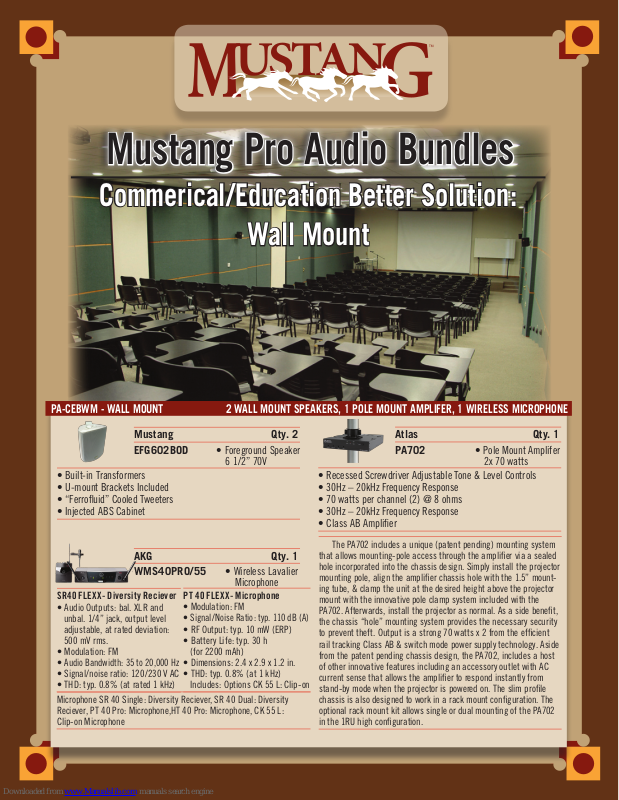

Page 1

Mustang Pro Audio Bundles

Commerical/Education Better Solution:

Wall Mount

PA-CEBWM - WALL MOUNT 2 WALL MOUNT SPEAKERS, 1 POLE MOUNT AMPLIFER, 1 WIRELESS MICROPHONE

Mustang Qty. 2

EFG602BOD • Foreground Speaker 6 1/2” 70V

• Built-in Transformers

• U-mount Brackets Included

• “Ferrouid” Cooled Tweeters

• Injected ABS Cabinet

AKG Qty. 1

WMS40PRO/55 • Wireless Lavalier Microphone

SR40 FLEXX- Diversity Reciever

• Audio Outputs: bal. XLR and unbal. 1/4” jack, output level adjustable, at rated deviation: 500 mV rms.

• Modulation: FM

•

Audio Bandwidth: 35 to 20,000 Hz

• Signal/noise ratio: 120/230 V AC

• THD: typ. 0.8% (at rated 1 kHz) Microphone SR 40 Single: Diversity Reciever, SR 40 Dual: Diversity

Reciever, PT 40 Pro: Microphone,HT 40 Pro: Microphone, CK 55 L: Clip-on Microphone

PT 40 FLEXX- Microphone

• Modulation: FM

• Signal/Noise Ratio: typ. 110 dB (A)

• RF Output: typ. 10 mW (ERP)

• Battery Life: typ. 30 h (for 2200 mAh)

• Dimensions: 2.4 x 2.9 x 1.2 in.

• THD: typ. 0.8% (at 1 kHz) Includes: Options CK 55 L: Clip-on

Atlas Qty. 1

PA702 • Pole Mount Amplifer 2x 70 watts

• Recessed Screwdriver Adjustable Tone & Level Controls

• 30Hz – 20kHz Frequency Response

• 70 watts per channel (2) @ 8 ohms

• 30Hz – 20kHz Frequency Response

• Class AB Amplier

The PA702 includes a unique (patent pending) mounting system that allows mounting-pole access through the amplier via a sealed hole incorporated into the chassis design. Simply install the projector mounting pole, align the amplier chassis hole with the 1.5” mounting tube, & clamp the unit at the desired height above the projector mount with the innovative pole clamp system included with the PA702. Afterwards, install the projector as normal. As a side benet, the chassis “hole” mounting system provides the necessary security to prevent theft. Output is a strong 70 watts x 2 from the efcient rail tracking Class AB & switch mode power supply technology. Aside from the patent pending chassis design, the PA702, includes a host of other innovative features including an accessory outlet with AC current sense that allows the amplier to respond instantly from stand-by mode when the projector is powered on. The slim prole chassis is also designed to work in a rack mount conguration. The optional rack mount kit allows single or dual mounting of the PA702 in the 1RU high conguration.
