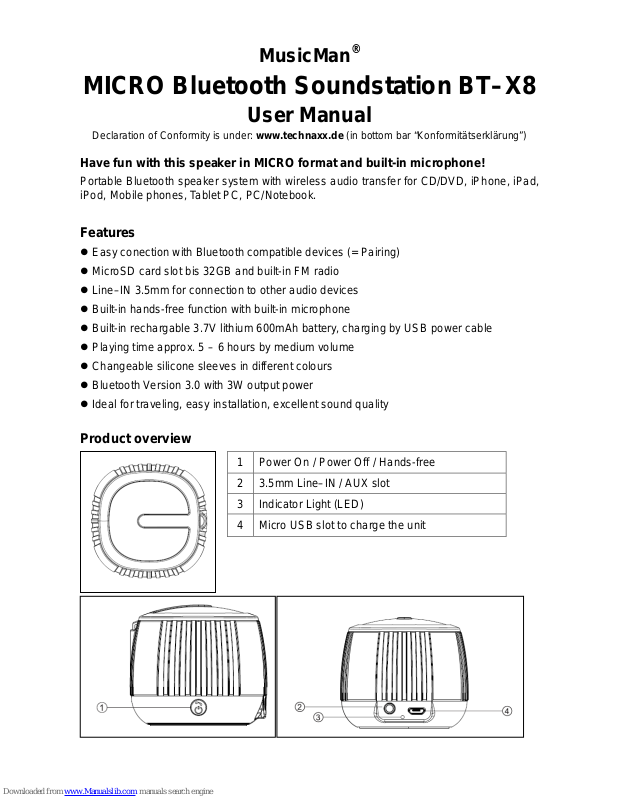

MusicMan BT–X8 User Manual
MusicMan
®
MICRO Bluetooth Soundstation BT–X8
User Manual
Declaration of Conformity is under: www.technaxx.de (in bottom bar “Konformitätserklärung”)
Have fun with this speaker in MICRO format and built-in microphone!
Portable Bluetooth speaker system with wireless audio transfer for CD/DVD, iPhone, iPad,
iPod, Mobile phones, Tablet PC, PC/Notebook.
Features
Easy conection with Bluetooth compatible devices (= Pairing)
MicroSD card slot bis 32GB and built-in FM radio
Line–IN 3.5mm for connection to other audio devices
Built-in hands-free function with built-in microphone
Built-in rechargable 3.7V lithium 600mAh battery, charging by USB power cable
Playing time approx. 5 – 6 hours by medium volume
Changeable silicone sleeves in different colours
Bluetooth Version 3.0 with 3W output power
Ideal for traveling, easy installation, excellent sound quality
Product overview
1 Power On / Power Off / Hands-free
2 3.5mm Line–IN / AUX slot
3 Indicator Light (LED)
4 Micro USB slot to charge the unit
Key Functions
(1)
Power key / Hands-free key: Press the POWER key for 2 seconds to turn ON
the speaker. The user hears a “BEEP” tone when the speaker is turned ON.
The BLUE LED is blinking. To turn the speaker OFF, press the POWER key for
2 seconds. When the BLUE LED turns off, the speaker is also off.
Users are able to answer an incoming call or hang up a call with pressing the button
/
shortly once when Bluetooth of speaker and mobile phone are connected.
(6)
/
Play key / Pause key: Short press to play or pause music from Bluetooth
devices and MicroSD card. the BLUE LED shines constantly.
While the speaker plays music through Line–IN/AUX, users play or pause
music on their phones, PC, Tablet PC, MP3, MP4 etc.
(7)
/ –
Back key / Volume – key: Short press to go back to the last song, long press
to decrease the volume (VOL–) while playing music through Bluetooth or from
MicroSD card. While playing music through Line–IN/AUX, please control on
the phone, PC, Tablet PC, MP3, MP4 etc.
(8)
＋/
Forth key / Volume + key: Short press to go forth to the next song, long press
to increase the volume (VOL+) while playing music through Bluetooth or from
MicroSD card. While playing music through Line–IN/AUX, please control on
the phone, PC, Tablet PC, MP3, MP4 etc.
5 Microphone
6 Play / Pause
7 Back / Volume –
8 Forth / Volume +
9 MicroSD card slot
