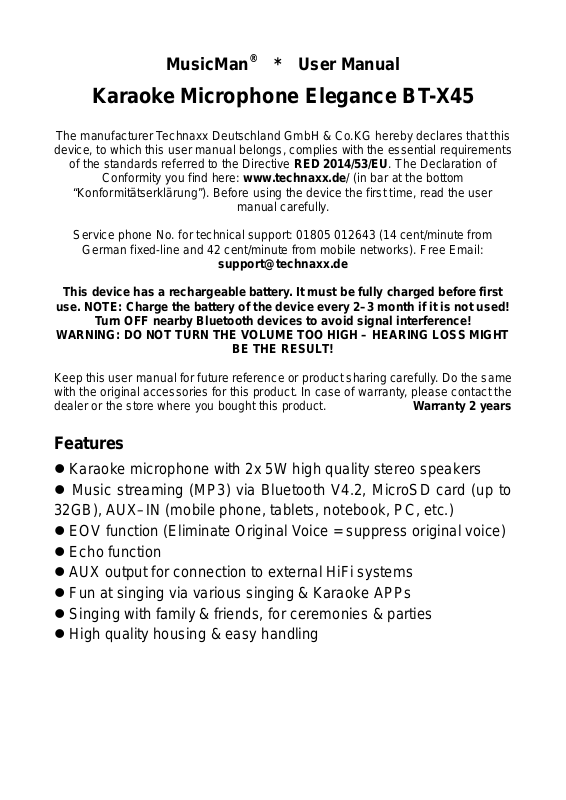

Musicman BT-X45 User Manual

MusicMan® * User Manual

Karaoke Microphone Elegance BT-X45

The manufacturer Technaxx Deutschland GmbH & Co.KG hereby declares that this

device, to which this user manual belongs, complies with the essential requirements

of the standards referred to the Directive RED 2014/53/EU. The Declaration of

Conformity you find here: www.technaxx.de/ (in bar at the bottom

“Konformitätserklärung”). Before using the device the first time, read the user

manual carefully.

Service phone No. for technical support: 01805 012643 (14 cent/minute from

German fixed-line and 42 cent/minute from mobile networks). Free Email:

[e-mail]

This device has a rechargeable battery. It must be fully charged before first

use. NOTE: Charge the battery of the device every 2–3 month if it is not used!

Turn OFF nearby Bluetooth devices to avoid signal interference!

WARNING: DO NOT TURN THE VOLUME TOO HIGH – HEARING LOSS MIGHT

BE THE RESULT!

Keep this user manual for future reference or product sharing carefully. Do the same
with the original accessories for this product. In case of warranty, please contact the
dealer or the store where you bought this product. Warranty 2 years

Features

 Karaoke microphone with 2x 5W high quality stereo speakers
 Music streaming (MP3) via Bluetooth V4.2, MicroSD card (up to

32GB), AUX–IN (mobile phone, tablets, notebook, PC, etc.)

 EOV function (Eliminate Original Voice = suppress original voice)
 Echo function
 AUX output for connection to external HiFi systems
 Fun at singing via various singing & Karaoke APPs
 Singing with family & friends, for ceremonies & parties
 High quality housing & easy handling

Technical specifications

V4.2 / Profile A2DP / ~10m distance / transmitting frequency

Bluetooth

2.4GHz / radiated output power max. 2.5mW

Functions

Bluetooth, MicroSD Card,

AUX–IN

, Earphone output

Output 2x 5W speaker
Input 1x microphone (MIC is inside the microphone head)

Built-in rechargeable 1000mAh Li-polymer battery type

Power

1850 4.2V
Charging time ~2–3 hours
Playing time ~5–8 hours (medium volume, Bluetooth)
Frequency range speaker 100Hz~10kHz
Maximum sound pressure level >115dB, 1kHz, THD<1%
SNR / Speaker impedance ≦80dB / 2Ω
MicroSD* card up to 32GB (FAT 32) [*not included]
Charging voltage / Current DC 5V / 1A
Material Aluminium + ABS Plastic

Weight / Dimensions 330g / (L) 24.5 x (B) 7.5 x (H) 7.5cm

MusicMan® Karaoke Microphone Elegance BT-X45,
Package

USB-to-Micro USB charging cable, Micro USB-to-Audio
Contents

cable (AUX) with 3,5mm jack, User Manual

Hints for Environment Protection: Packages materials are raw
materials and can be recycled. Do not disposal old devices or
batteries into the domestic waste.

Cleaning: Protect the device from contamination and pollution
(use a clean drapery). Avoid using rough, coarse-grained
materials or solvents/aggressive cleaner. Wipe the cleaned device
accurately. Distributor: Technaxx Deutschland GmbH & Co.KG,
Kruppstr. 105, 60388 Frankfurt a.M., Germany

Product overview

Buttons & Functions

1

Original Voice)

2

EOV (Eliminate

Mode

Press 1x to eliminate the original
voice of the artist, press again to close
this function.
Press to choose mode Bluetooth,
MicroSD card, or AUX–IN.
