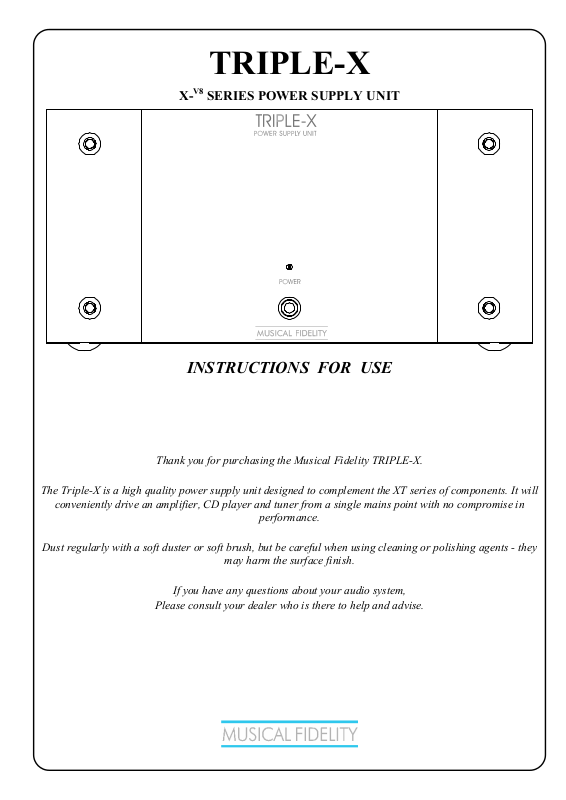

Musical Fidelity Triple X Owners manual

TRIPLE-X

X-V8 SERIES POWER SUPPLY UNIT

INSTRUCTIONS FOR USE

Thank you for purchasing the Musical Fidelity TRIPLE-X.

The Triple-X is a high quality power supply unit designed to complement the XT series of components. It will

conveniently drive an amplifier, CD player and tuner from a single mains point with no compromise in

performance.

Dust regularly with a soft duster or soft brush, but be careful when using cleaning or polishing agents - they

may harm the surface finish.

If you have any questions about your audio system,

Please consult your dealer who is there to help and advise.

TRIPLE-X PSU

CONTENTS

PAGE

3 Safety information

- Safety information

4 General advice

- - Installation precautions
User information

5 Item disposal information

6 Installation

7 Facilities and connection

- EU disposal information

-

Introduction

-

Installation

-

Connections

-

Cleaning

- Illustrations - front and rear panels

8 Power supply problems?

- Basic fault finding

9 Power supply specifications

10 Manual history

Issue 1: 14th July 2006

Page 2 of 10

TRIPLE-X PSU

!

IMPORTANT

This unit is supplied in the U.K. with mains lead fitted with a moulded 13 amp plug. If, for any reason, you need to cut
off the plug, please remove the fuse holder and dispose of the plug safely, out of reach of children.

plugged into a mains outlet.

The wires in the mains lead supplied with this appliance are coloured in accordance with the following code:

WARNING - This appliance MUST be earthed

As the colours of the wires of the mains lead of this appliance may not correspond with the
coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the
letter E or coloured green or green-and-yellow, or by the earth symbol :

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

If connecting to a BS1363 plug, a 13 amp fuse must be used.

(U.K. only)

Green and yellow..............Earth

Blue................................Neutral

Brown.................................Live

SAFETY INFORMATION

It must not be

WARNING:

ANY MODIFICATIONS TO THIS PRODUCT NOT EXPRESSLY APPROVED
BY MUSICAL FIDELITY WHO IS THE PARTY RESPONSIBLE FOR
STANDARDS COMPLIANCE COULD VOID THE USER'S AUTHORITY TO
OPERATE THIS EQUIPMENT.

Issue 1: 14th July 2006

Page 3 of 10
